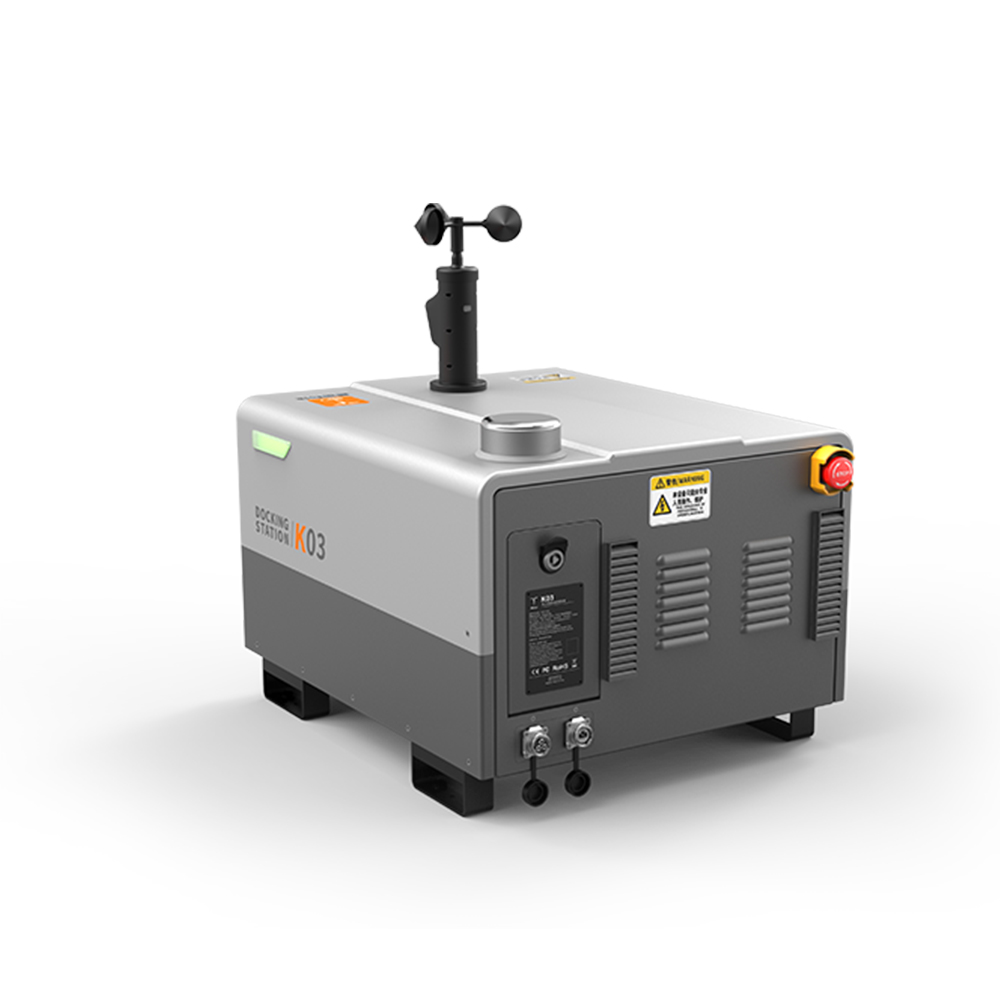

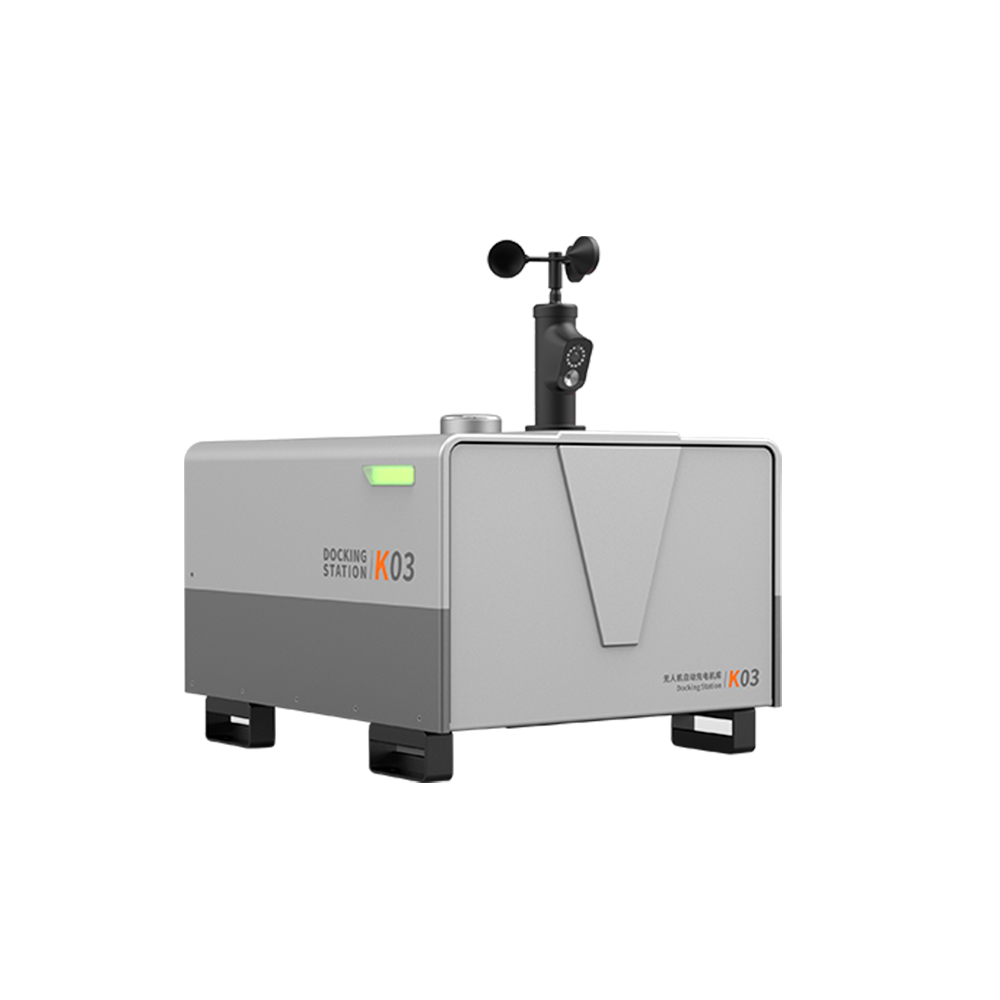

K03 Lightweight Automatic Charging Dock

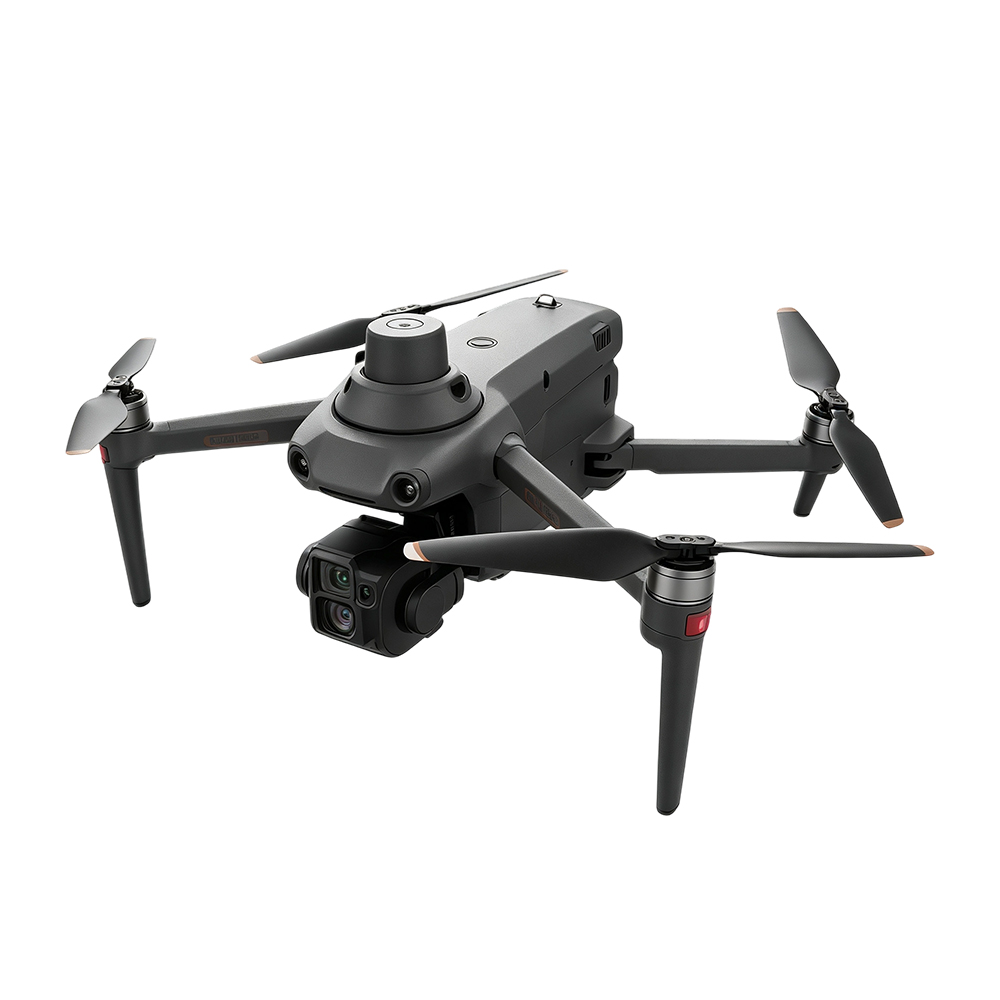

S220 dock kit, only 50kg, solar-powered for unattended operations

Core Highlights

Flexible Deployment

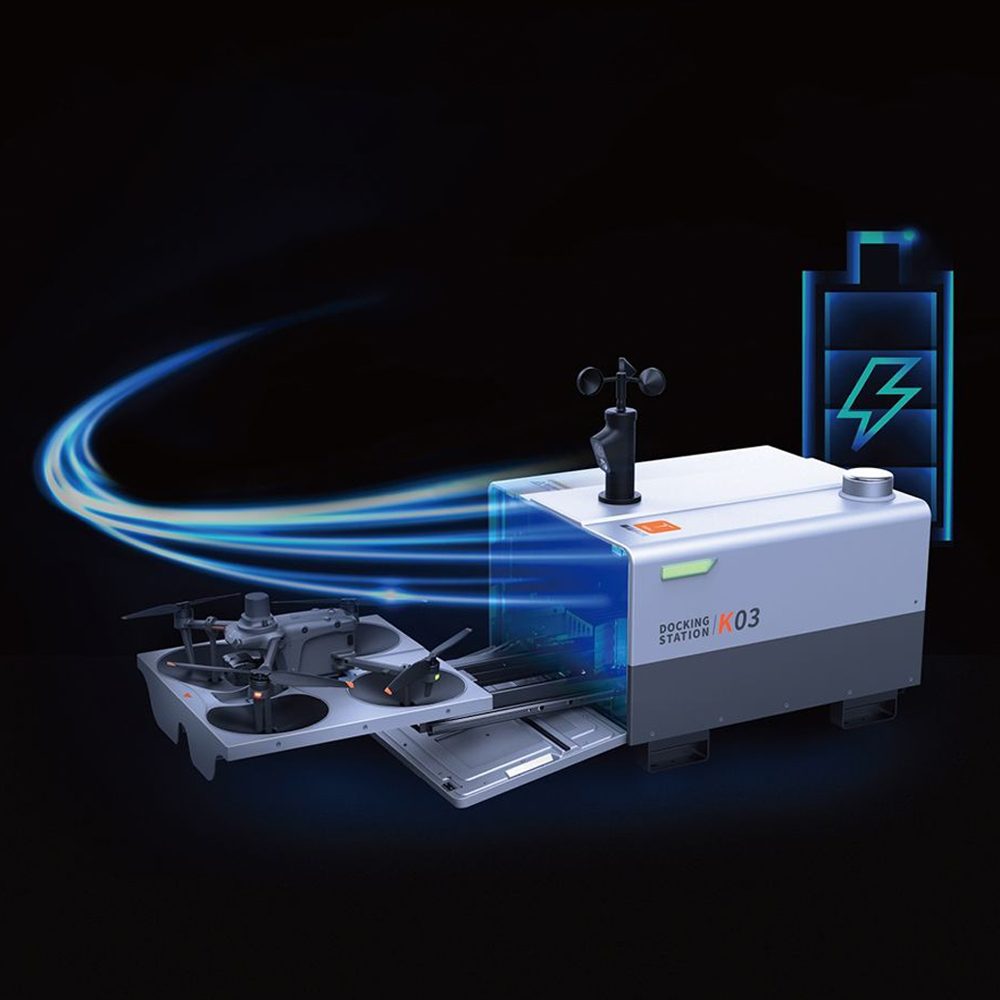

Fast Charging
Continuous Multi-Site Operations

The K03 dock weighs 50kg, occupies 0.36m², with standby power under 10W. Compact, lightweight and low-power, it pairs with solar power for off-grid operation such as power tower sites and "three-disconnection" scenarios, and supports 4G/MESH modules to link into the nearest network node.

Application Scenarios

Smart CitySmart CampusPower InspectionEnergy InspectionEvent SecurityEmergency Firefighting

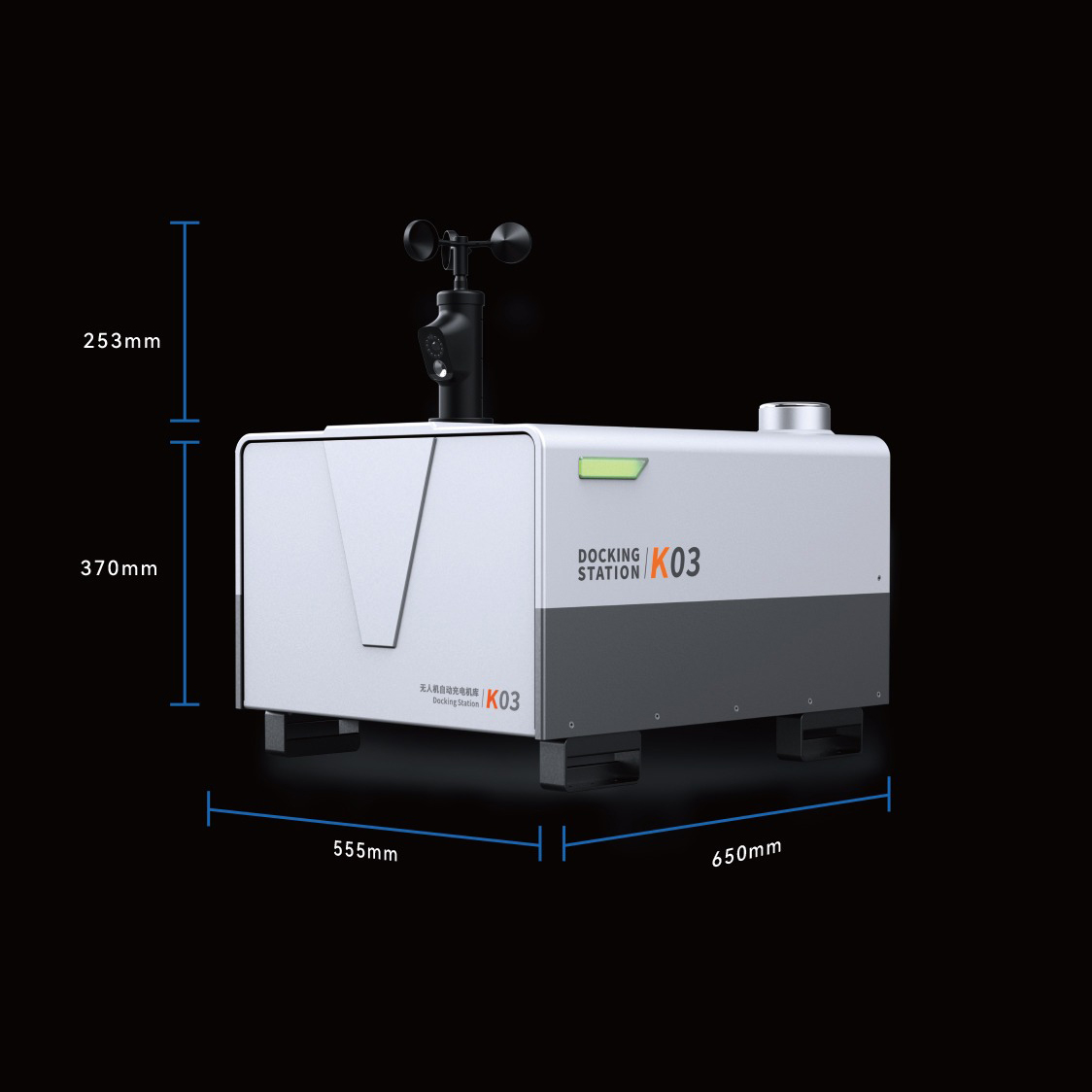

Closed Dimensions (excl. weather station)	650 × 555 × 370 mm

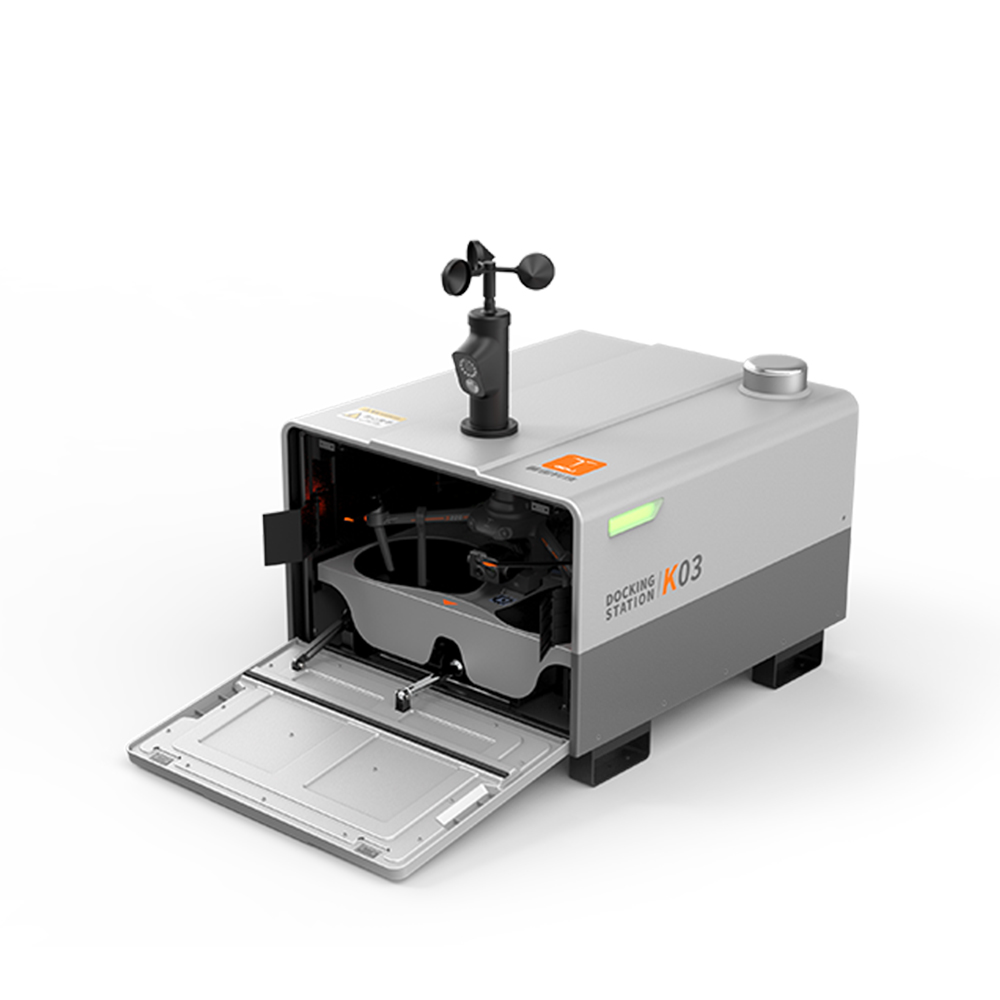

Open Dimensions (excl. weather station)	1380 × 555 × 370 mm
Weight	≤ 50 kg
Wind Resistance (patrol)	12 m/s
Wind Resistance (precision landing)	8 m/s
AC Power	100 ~ 240 VAC, 50/60 Hz
Peak Power	≤ 1000 W
Emergency Battery Endurance	≥ 5 hours
Charging Time (10% to 90%)	≤ 35 min
Night Precision Landing	Supported
Leapfrog Inspection	Supported
Data Rate (aircraft to dock)	≤ 200 Mbps
RTK Base Station	Supported
Max Inspection Range	8000 m
Edge Computing Module	Optional
Operating Temperature	-20 °C ~ 50 °C
Max Operating Altitude	5000 m
Operating Humidity	< 95% RH
Temperature Control	TEC cooling
