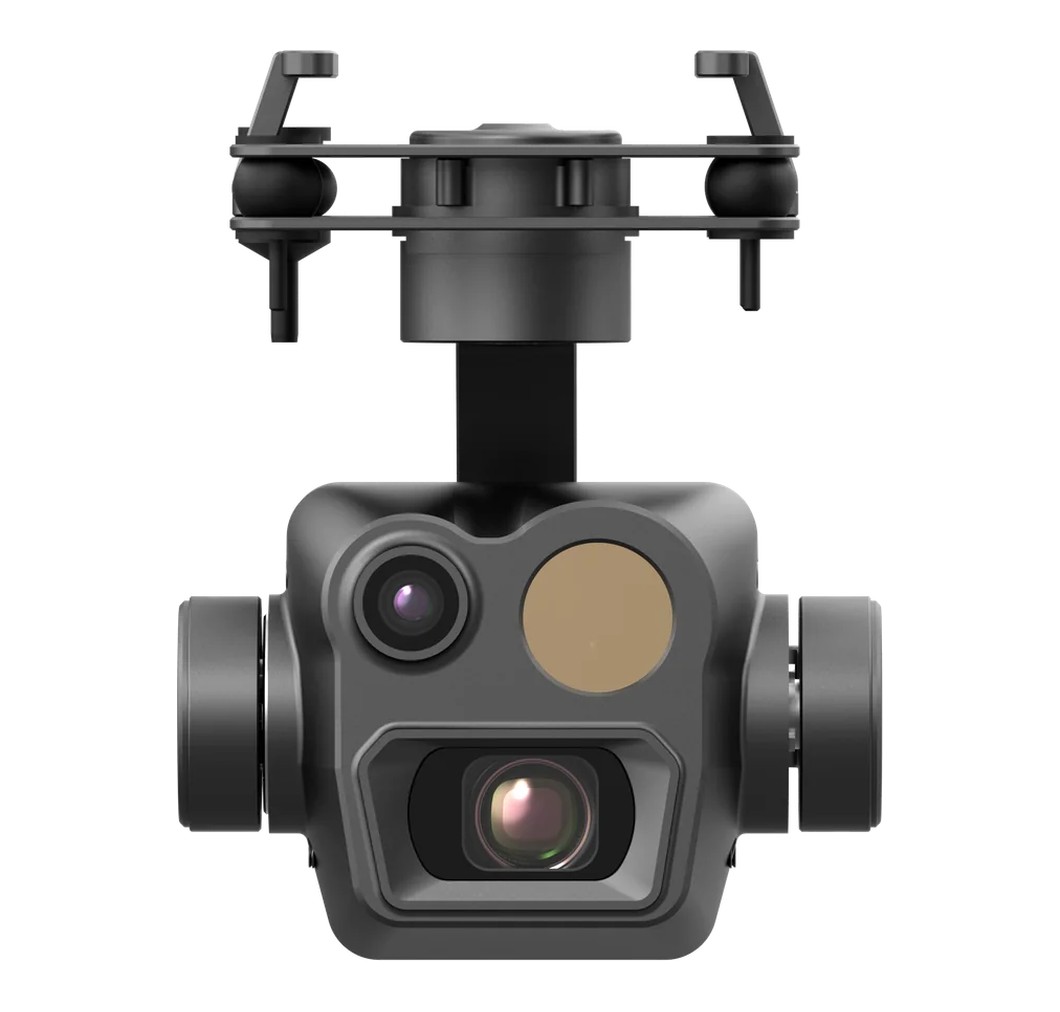

The whole machine

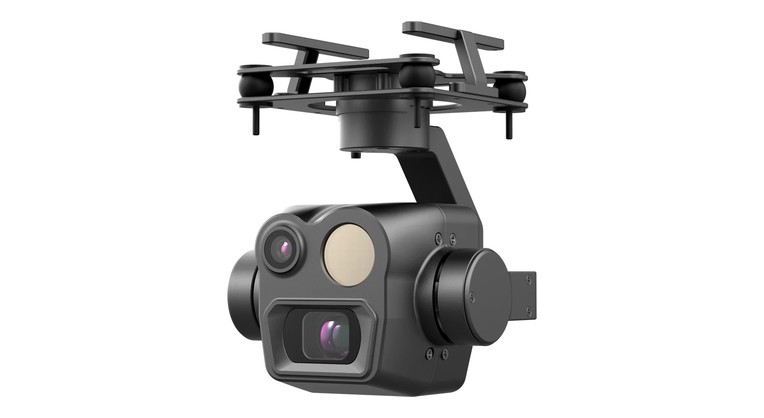

Overall appearance
The gimbal weighs 225±5g / 267g, and the volume is 83×92×100mm.
zoom triple sensor gimbal

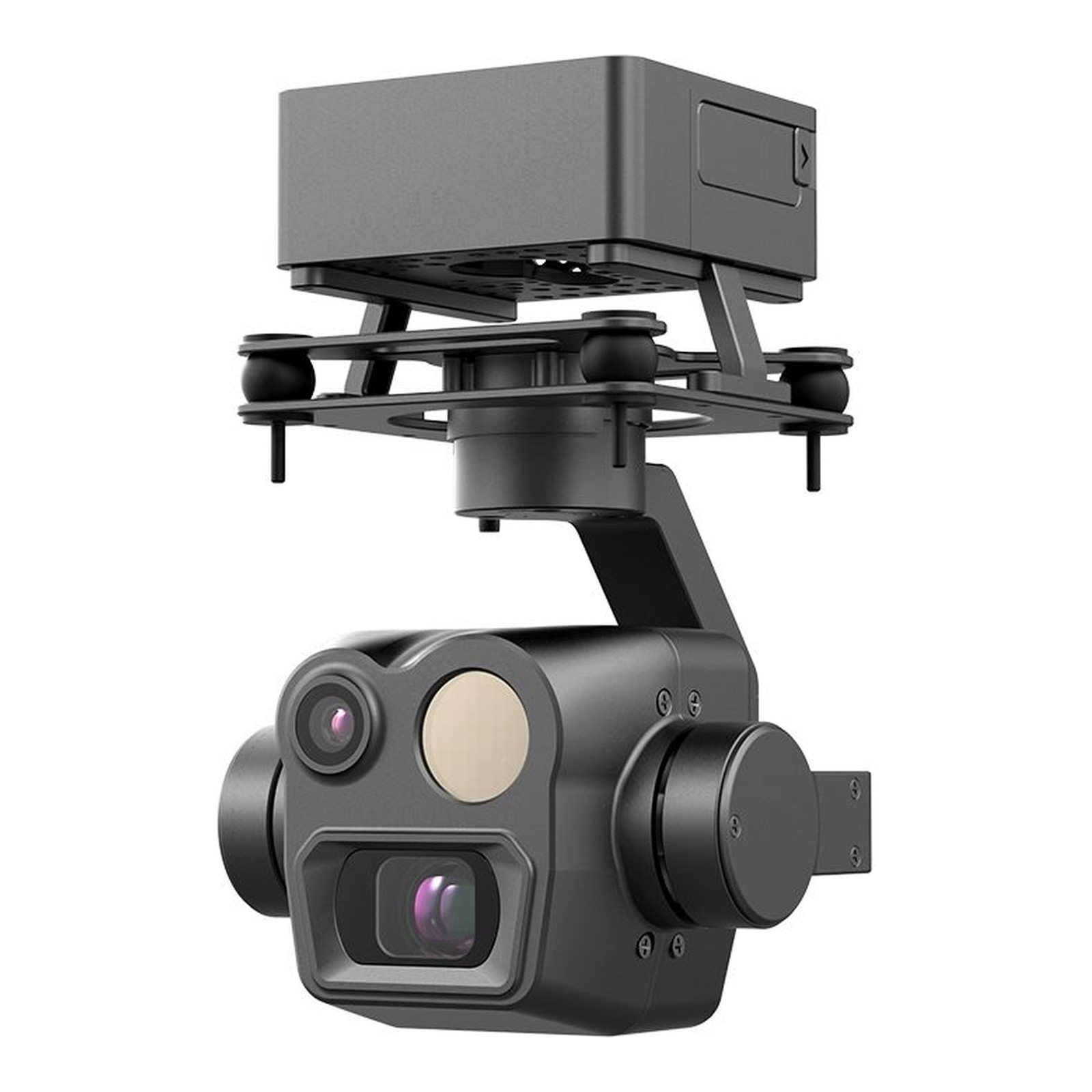

Micro 3-Axis Tri-Sensor Gimbal - PUTT225
PUTT225 micro three-axis tri-sensor inertial image stabilization gimbal integrates a 50-megapixel high-definition wide-angle visible light camera (4.7mm), a 48-megapixel continuous zoom visible light camera (15.3-49.7mm) and a laser rangefinder (905nm, 10-700m, ±1m). Three-axis gimbal 225±5g, total weight 267g. Dual visible light + 8X electronic zoom achieves 120X hybrid zoom, daytime recognition >1500m; builds a "wide-angle coverage + zoom magnification + precise ranging" three-dimensional survey system, with 10-meter-level precise positioning capabilities.
Gimbal / Total weight 225±5g / 267g Recognition distance >1500m Laser ranging 905nm, 10-700m, ±1m
120X hybrid zoom, daytime 1500m
50 MP wide-angle + 48 MP zoom + 700 m laser rangefinder.
120× hybrid zoom, daytime adult recognition >1500 m; laser 10–700 m, ±1 m, target distance and coordinates provided together.
Structure: 225±5g/267g
Gimbal 225±5 g, total weight 267 g, 83×92×100 mm.
- Gimbal/total weight
- 225±5g / 267g
- Gimbal Dimensions
- 83 x 92 x 100 mm
- Laser Rangefinder
- 905nm, 10-700m, ±1m
- Laser ranging 10–700 m (±1 m)
- 120X hybrid zoom, daytime recognition >1500 m, total weight 267 g
key indicators
Laser ranging 10-700m, ±1m accuracy
Total weight 267g / Laser ranging 10-700m / 3D survey: wide angle + zoom + ranging
- daytime recognition
- >1500m
- Laser Rangefinder
- 905nm, 10-700m, ±1m
key part

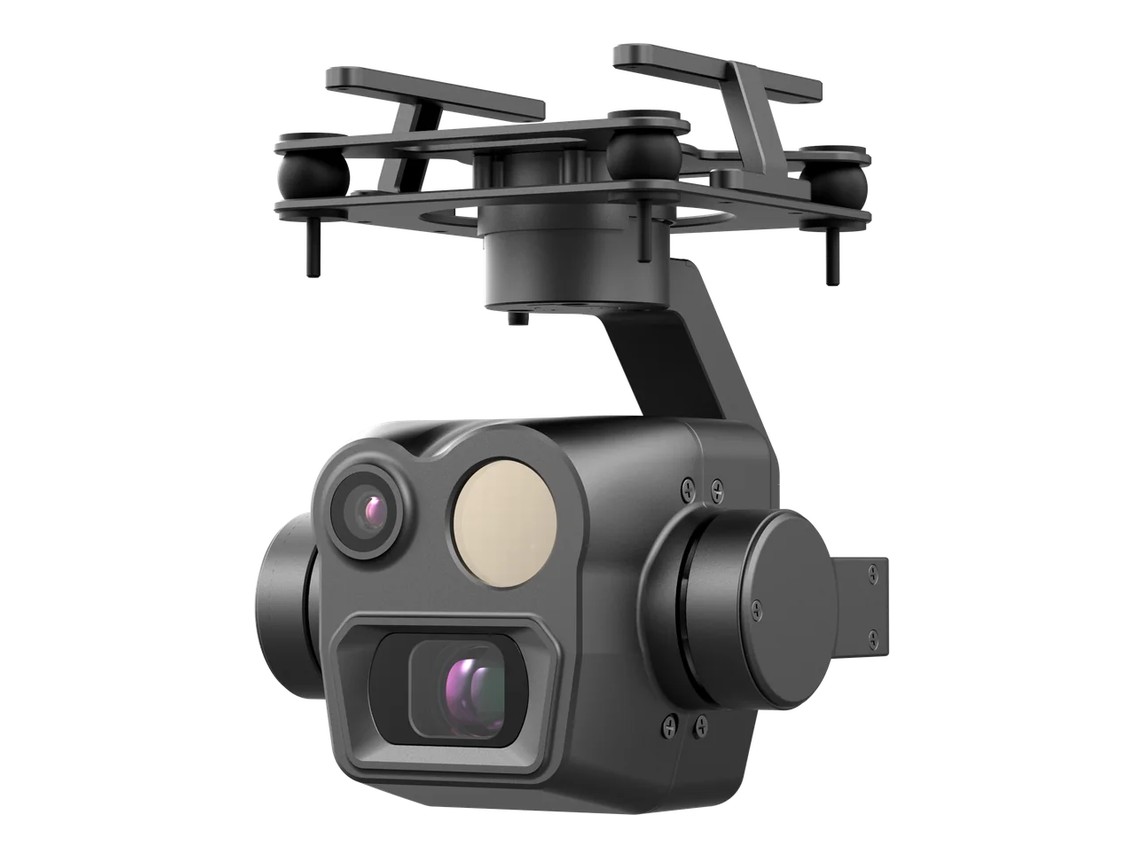

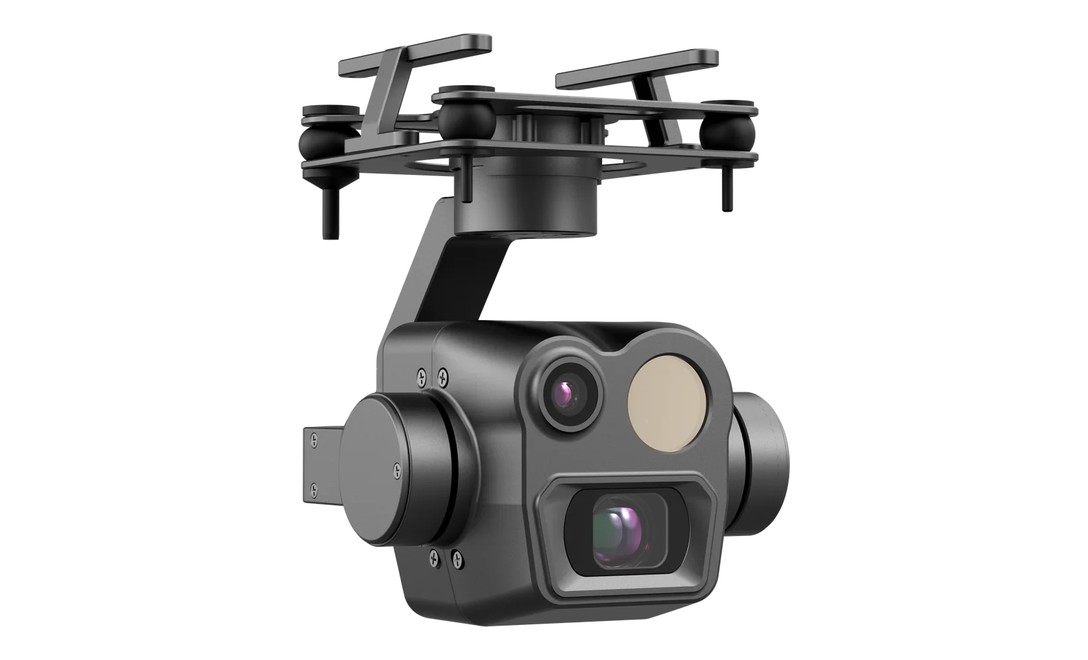

Three perspectives: the whole machine, optics and gimbal, and another angle.
Details

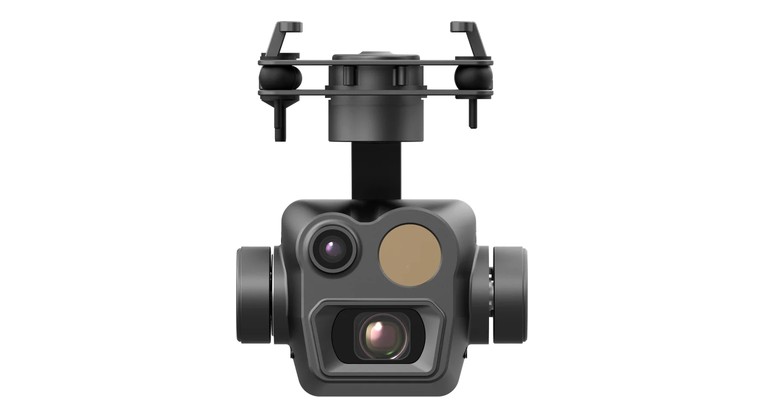

Optics and PTZ
PUTT225 is a miniature three-axis tri-sensor inertial image stabilization gimbal, integrating a 50-megapixel high-definition wide-angle visible light camera (4.7mm) and a 48-megapixel continuous zoom visible light camera (15.…
Details

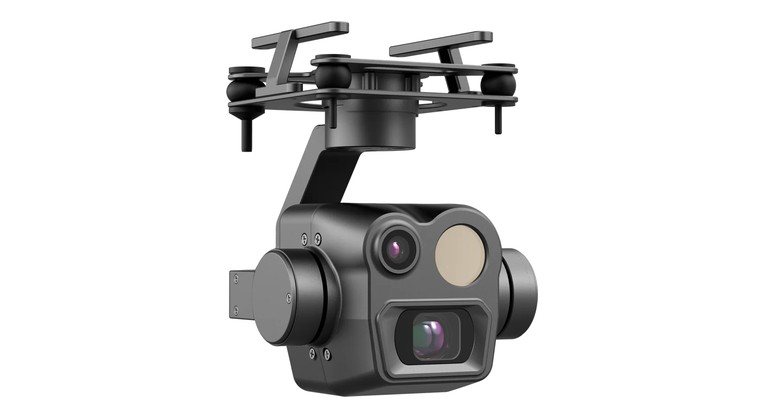

another angle
Laser 905nm, 10-700m, ±1m.
Where do you actually work?
Security, inspection, emergency—occasions where targets need to be seen clearly from a distance.
City Security
Disaster Response
Infrastructure Inspection
Power Facility Maintenance
Border Patrol
Pictures only represent the working environment, not specific customer projects.
Complete technical parameters
Parameters are taken from the existing specification sheet; items not listed should be confirmed by order.
Visible light and zoom
| Wide Camera | 50MP, 4.7mm, 59.5° x 35.5° |
|---|---|
| Zoom Camera | 48MP, 15.3-49.7mm |
| Hybrid Zoom | 120X (8X electronic zoom) |
| Daytime Recognition | >1500m |
Laser ranging
| Laser Rangefinder | 905nm, 10-700m, ±1m |
|---|
PTZ and image stabilization
| Gimbal / Total Weight | 225±5g / 267g |
|---|---|
| Gimbal Dimensions | 83 x 92 x 100 mm |
Frequently asked questions about model selection
Short answer, no sales talk.
What is the recognition distance?
Daytime >1500m. Distance is related to target size and weather conditions.
How much does it weigh?
The gimbal weighs 225±5g / 267g, and the volume is 83×92×100mm.
Laser ranging parameters?
905nm, 10-700m, ±1m.
Can it be linked to our model?
Send us the machine model and load position dimensions, and we will make a plan after confirming the installation interface and power supply.
Is there a complete specification sheet?
Leave an email address at the bottom of the page and we will send you the specifications and interface protocol documents.
Tell us about your aircraft model and mission
Tell us the machine body, load position size and required identification distance, and give us a quote after confirming the interface and power supply.
