Installation

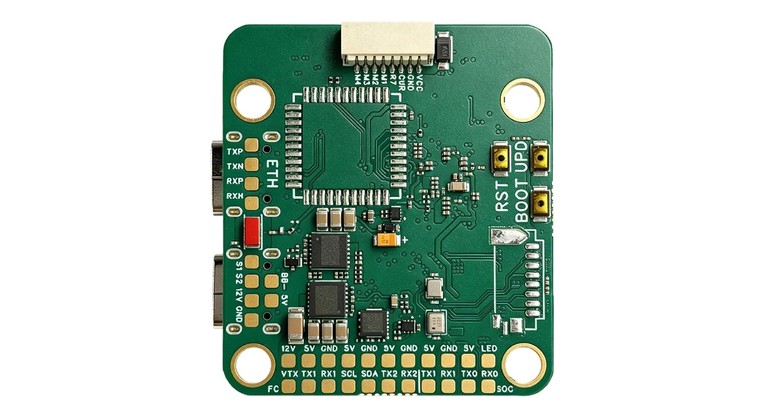

10 g single board
5-18 inch four-axis, 4S-12S, just replace the original flight control position.
AI tracking · 2-in-1 flight control

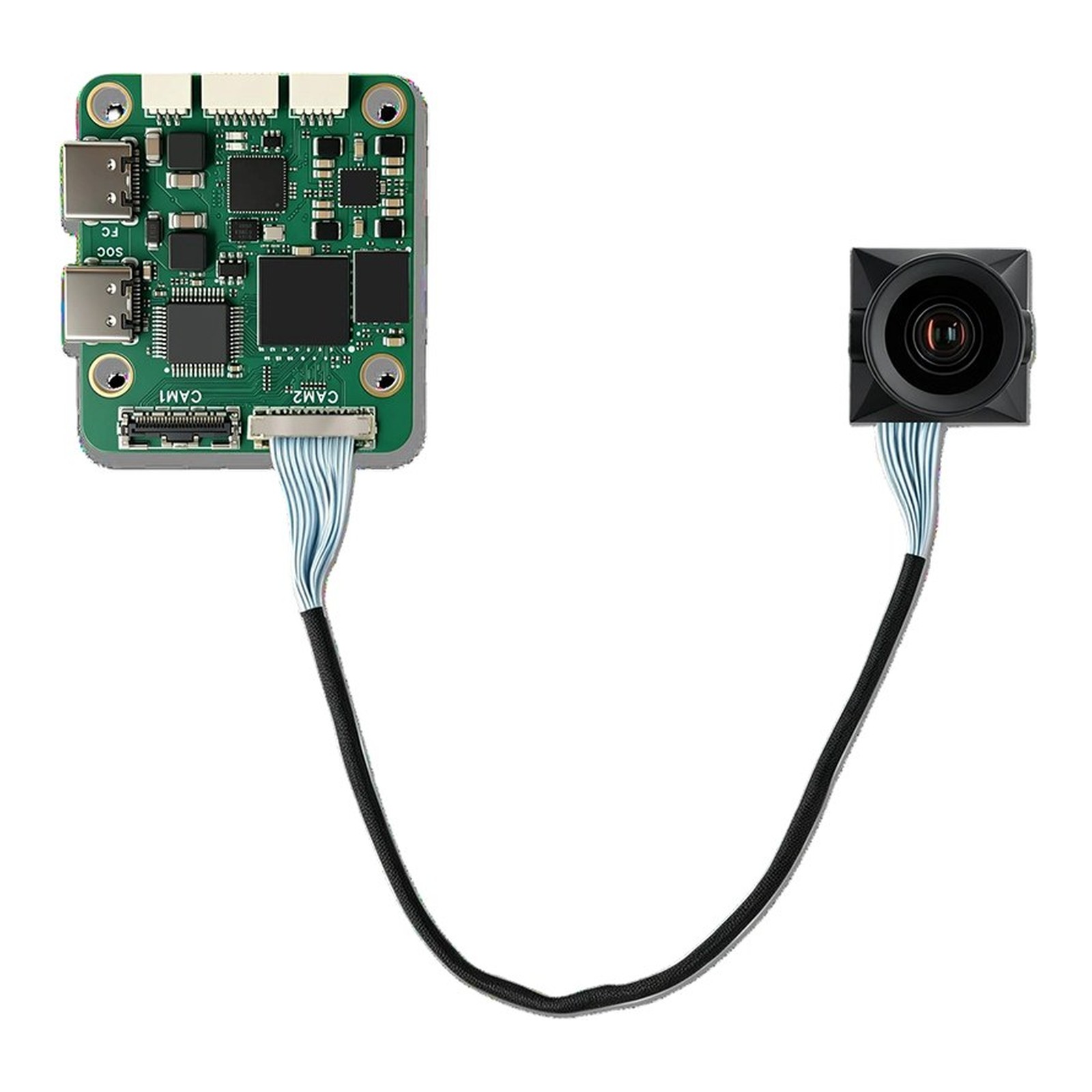

AI + BetaFlight 2-in-1 Flight Controller · Single-Camera
Built-in BetaFlight, single 4 mm camera 96° wide angle; vehicle locking 450 m, personnel 150 m; whole board 10 g / 2 W .
Built-in BetaFlight, compatible with standard interfaces 4 mm wide angle 96°, 1080P / 60FPS CVBS output + starlight night vision
A wide-angle lens is enough
One 4 mm wide-angle, vehicle lock 450 m, personnel 150 m.
FOV 96°, 1080P@60fps; flight controller and AI on same board, direct swap for 5–18 inch quadrotors, whole board 10 g, power consumption 2 W.

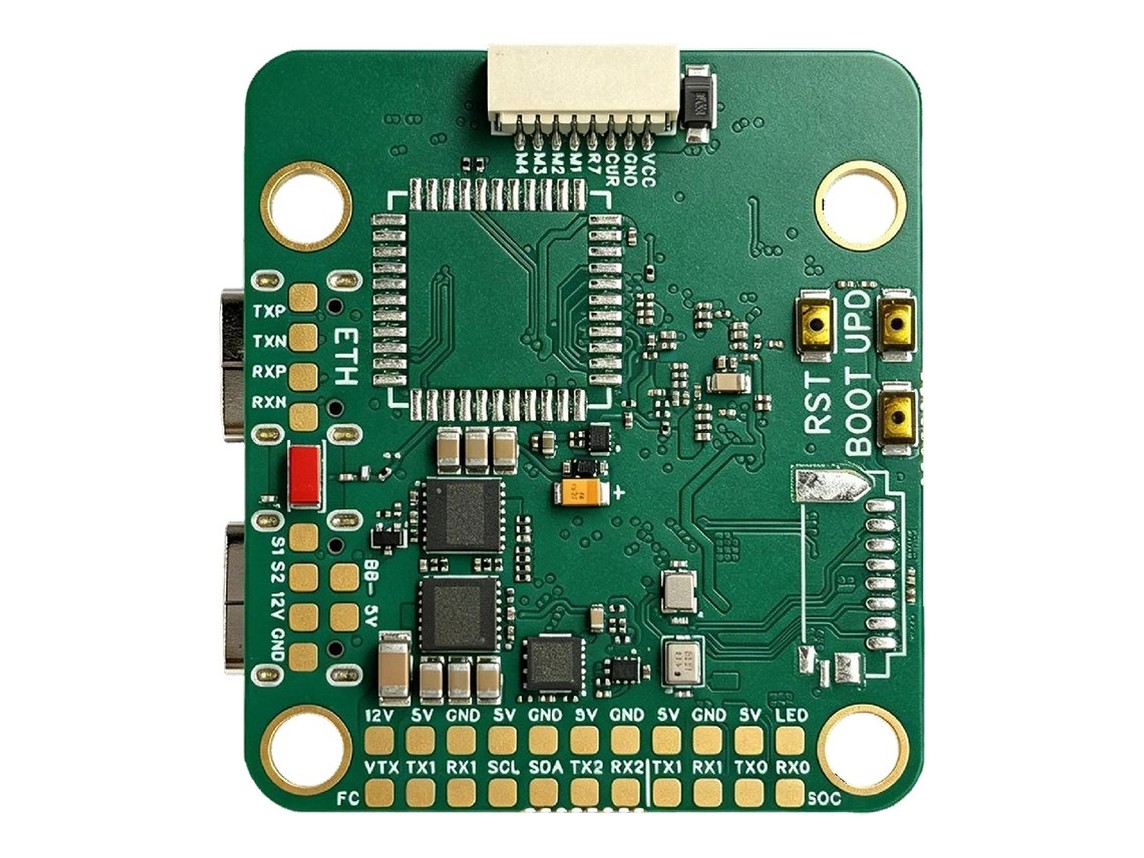

Two-in-one flight control · Structure and interface
CH10 intelligent assist lock, CH11 forced lock, 4S–12S power supply.
- Aircraft Type
- 5–18 inch quadcopter
- Operating Voltage
- 4S–12S LiPo
- Weight/power consumption
- 10g/2W
- ESC Protocol
- DSHOT 300 / 600
- Receiver ELRS (CRSF), 2-channel PWM servo output
- Working temperature -25℃ ~ 55℃

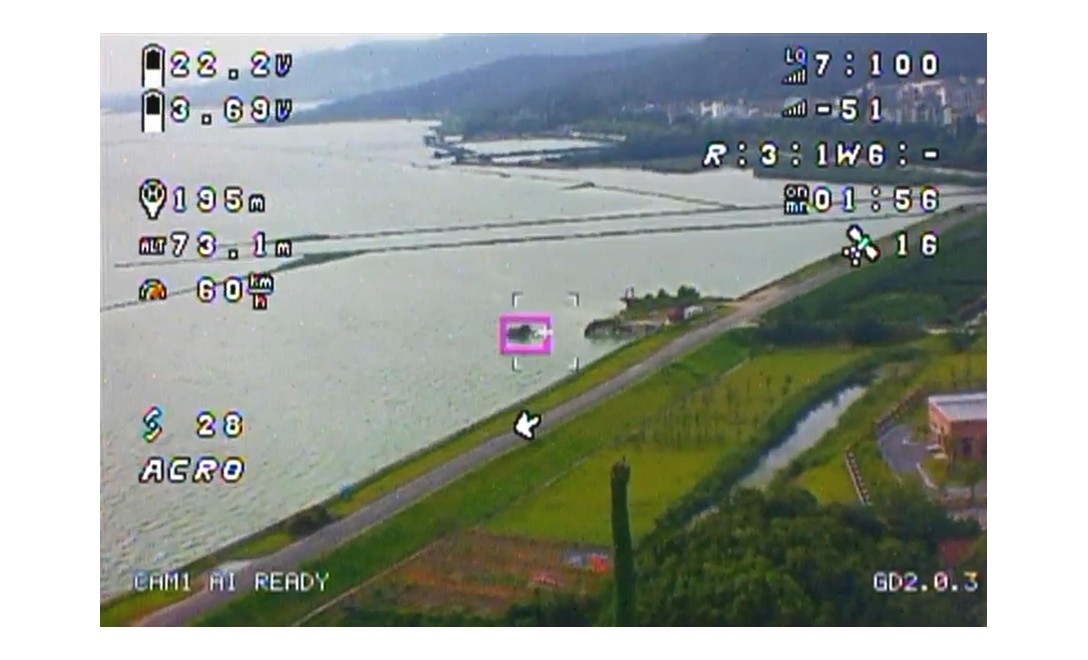

AI lock
CH10 frames, CH11 bites
CH10 box adsorption, optimized for cars and people; CH11 crosshair, fixed targets can also be locked. The two modes are switched according to tasks.
- lock mode
- CH10 Frame / CH11 Front Sight
- vehicle lock
- 450 m
- Personnel lock
- 150 m
- tracking speed
- >80 km/h
key part
Three angles: installation, body, lens.

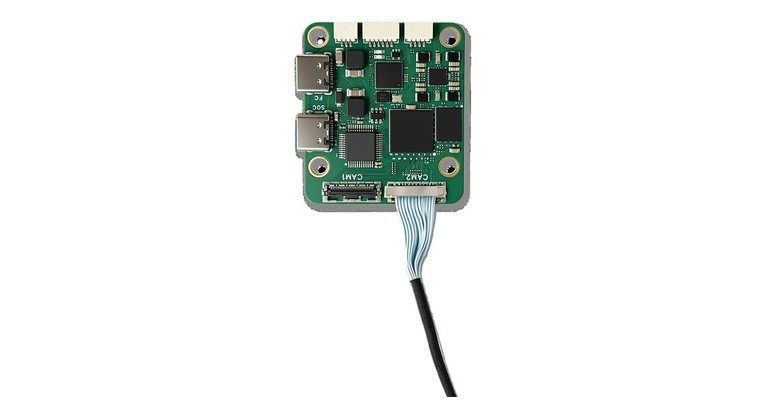

Ontology
AI + BetaFlight motherboard
Built-in BetaFlight, DSHOT 300/600, 2-way PWM.

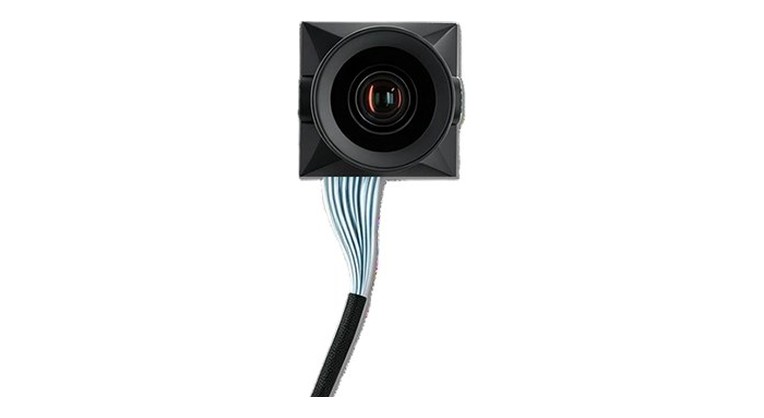

lens
4 mm wide angle 96°
1080P/60FPS, CVBS output, adjustable starlight night vision.
Where do you actually work?
Security, emergency, inspection - occasions where it is necessary to lock the target while watching.
Target Tracking
Security Monitoring
Emergency Rescue
Infrastructure Inspection
Power Line Inspection
Pictures only represent the working environment, not specific customer projects.
Complete technical parameters
Parameters are taken from the existing specification sheet; items not listed should be confirmed by order.
Visible light and imaging
| Focal Length | 4 mm |
|---|---|
| Field of View (FOV) | 96° |
AI features
| AI Locking Distance | vehicle 450 m / person 150 m |
|---|---|
| Minimum Tracking Resolution | 16 × 16 px |
| Maximum Tracking Speed | > 80 km/h |
| AI Locking Mode | CH10 assisted lock / CH11 force lock |
Electrical and interface
| Aircraft Type | 5–18 inch quadcopter |
|---|---|
| Built-in Flight Controller Firmware | BetaFlight (no separate FC required) |
| Operating Voltage | 4S–12S LiPo |
| Power Consumption | 2 W |
| Weight | 10 g |
| Camera Support | 1080P digital camera |
| Frame Rate | 60 FPS |
| Camera Mounting Angle | 30–60° |
| Video Output | CVBS |
| Starlight Imaging | Yes (adjustable brightness) |
| Supported Receiver Protocol | ELRS (CRSF) |
| ESC Protocol | DSHOT 300 / 600 |
| Servo Output | 2-channel PWM servo signal |
| Operating Temperature | -25°C to 55°C |
5 frequently asked questions when choosing a model
Short answer, no sales talk. Your question was not found, please use the form at the bottom of the page.
What’s the difference between it and the dual-camera version?
The single-camera version only has a 4 mm wide angle (96°), and the vehicle locking distance is 450 m/person 150 m; the dual-camera version has an additional 10 mm telephoto, and the vehicle locking range can be up to 800 m+.
Can it directly replace the existing flight controller?
Built-in BetaFlight, compatible with standard interfaces, supports 5-18-inch four-axis, 4S-12S, and can be installed according to the original flight control position.
What is the difference between the two lock modes?
CH10 box adsorption, optimized for vehicles and personnel; CH11 crosshair, any target (including fixed targets) can be locked.
How to access video?
Standard CVBS output, connected with analog image transmission; starlight night vision brightness is adjustable.
Power supply and agreement?
4S–12S (DC corresponding), power consumption 2 W; ESC DSHOT 300/600, receiver ELRS (CRSF).
Tell us about your aircraft model and mission
Tell us the machine body, load position size and required locking distance, and give us a quote after confirming the interface and power supply.
