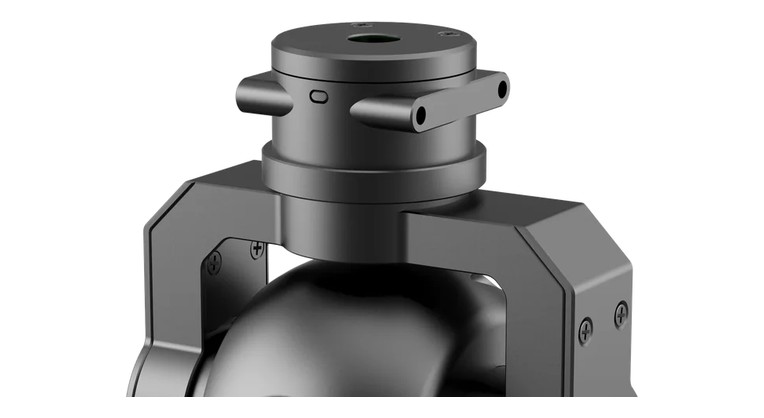

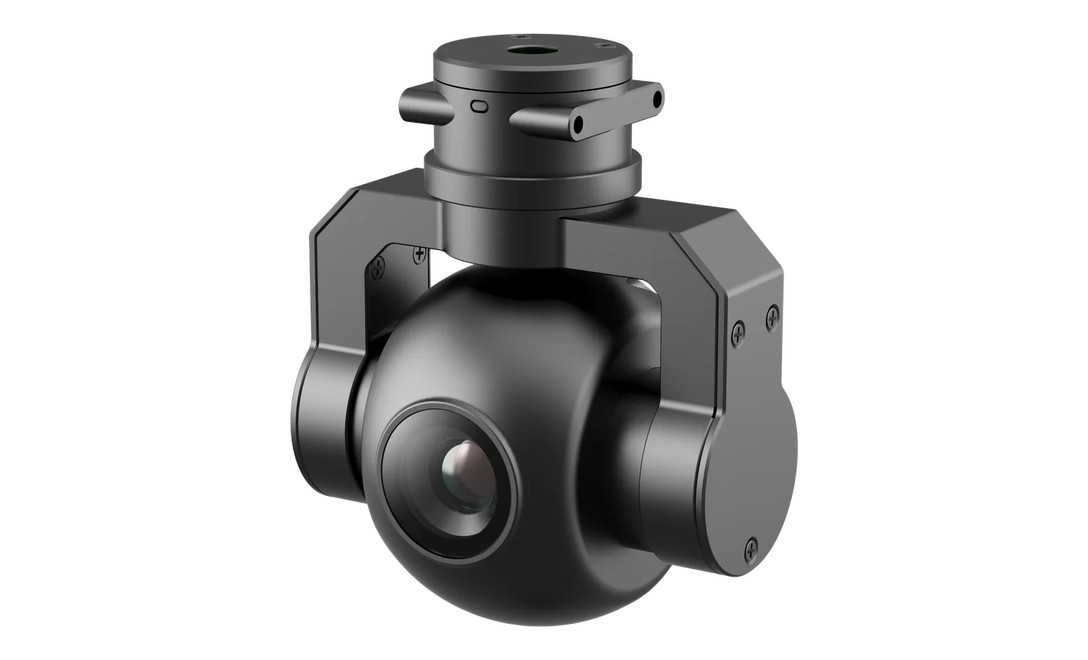

45×58×70 mm pan/tilt

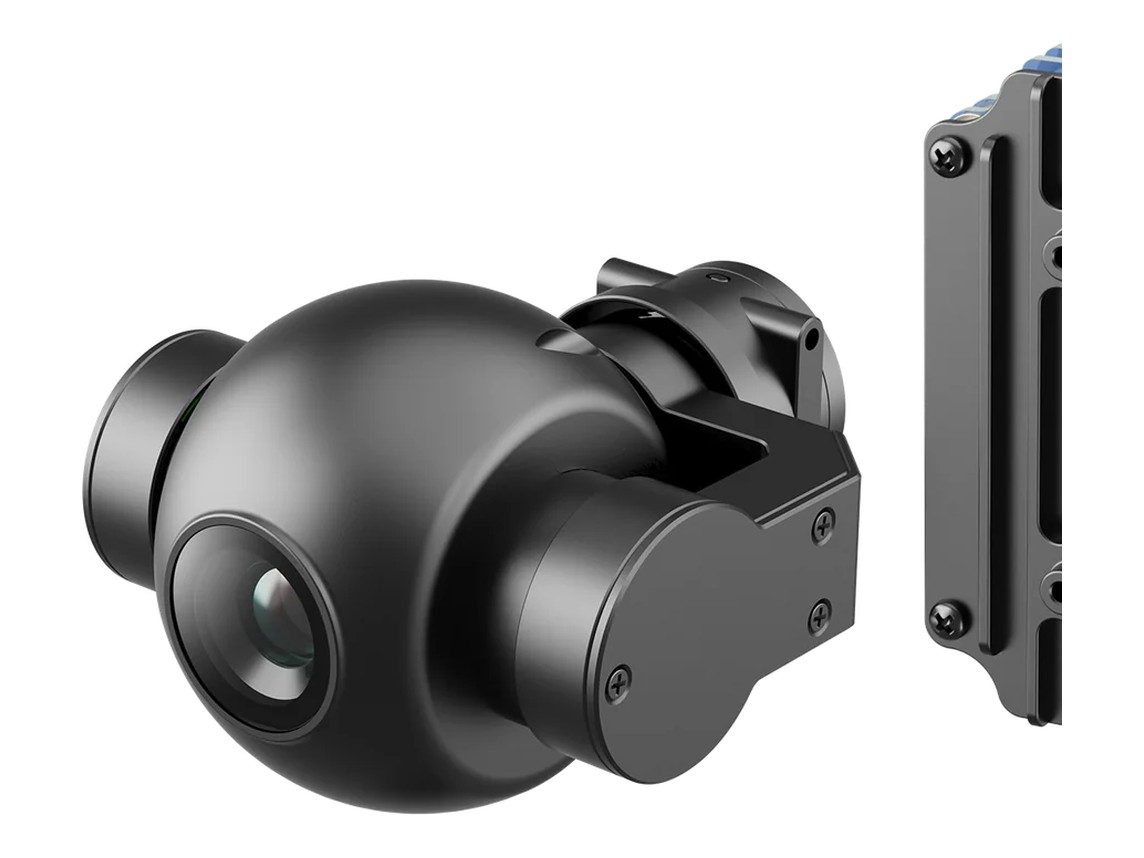

The gimbal is 70g and the AI module is 56g, suitable for light and small drones.
Image stabilization gimbal · two-axis · single light

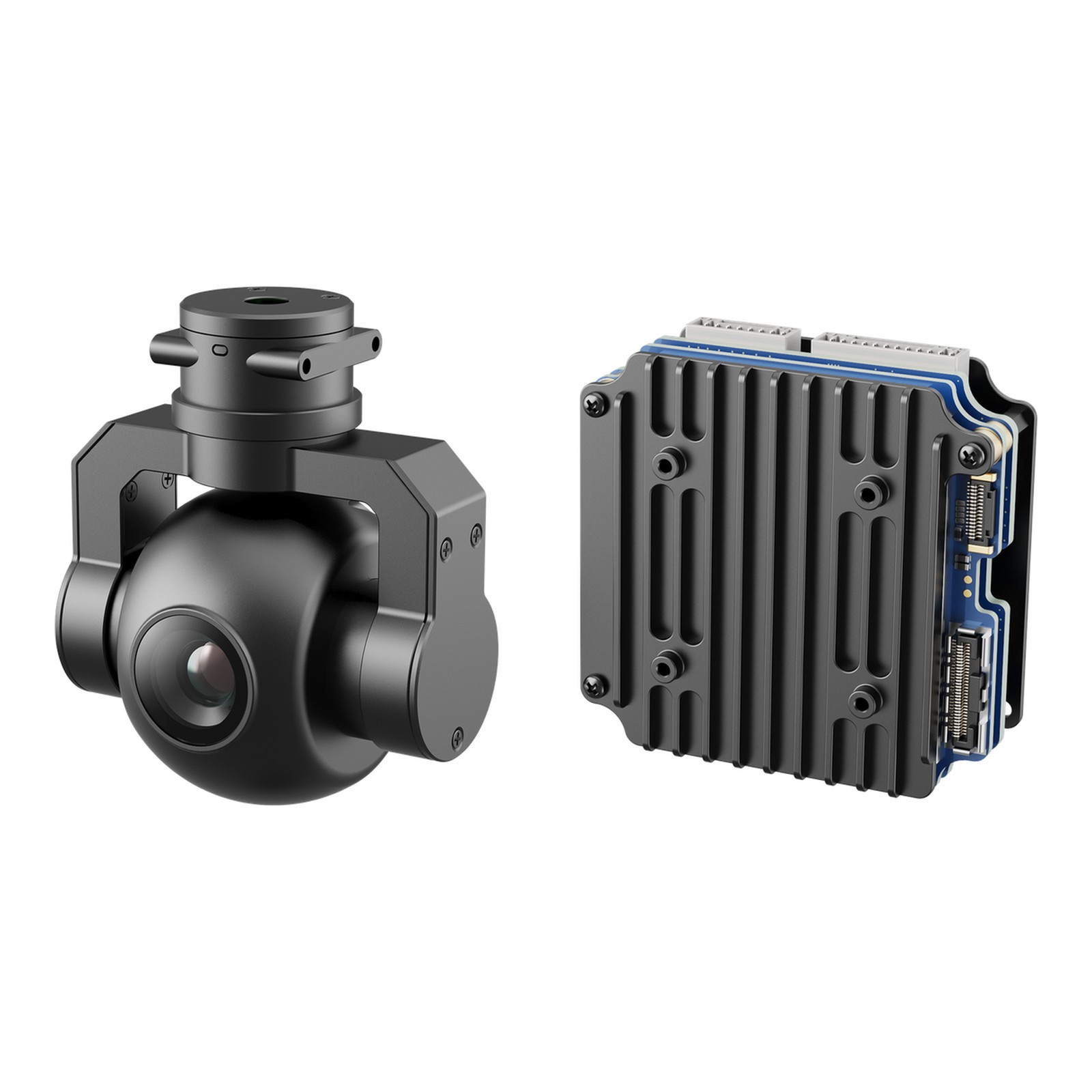

Micro 2-Axis Single-Sensor Gimbal - PUDD075S
Two-axis gyro image stabilization ≤ 0.01° ; four focal lengths of 8 / 12 / 16 / 25 mm optional, night recognition 170–500 m, gimbal 70 g.
Image stabilization accuracy ≤0.01° (disturbance 0.5°@1Hz) Four focal lengths: 8 / 12 / 16 / 25 mm Gimbal 70g, AI module 56g
Four focal lengths, select according to distance
8 / 12 / 16 / 25 mm four focal lengths, choose based on the distance you need to view.
Night adult recognition 170 / 250 / 330 / 500 m; two-axis stabilization ≤0.01°, 56 g AI board autonomous recognition, tracking people and vehicles.
Single light · Structure and interface
Gimbal 70 g, 45×58×70 mm, pitch -100°~+60°.
- Stabilization Accuracy
- ≤0.01°
- Gimbal Weight
- 70 g ± 5 g
- Gimbal Dimensions
- 45×58×70mm
- Angular Accuracy
- 0.1°
- Controllable range: pitch -100°~+60°, azimuth -60°~+60°
- Frame design range -140°~+90° / -70°~+70°
Stable image
Both axes are stable to ≤0.01°
The two-axis gyro stabilizes the jitter to 0.01° level; the angle measurement accuracy is 0.1°, and it is in place when it is turned.
- Stabilization Accuracy
- ≤0.01°
- Stabilization Axes
- 2-axis
- Angular Accuracy
- 0.1°
- Gimbal Weight
- 70 g ± 5 g
key part
Three angles: installation, body, lens.
Ontology

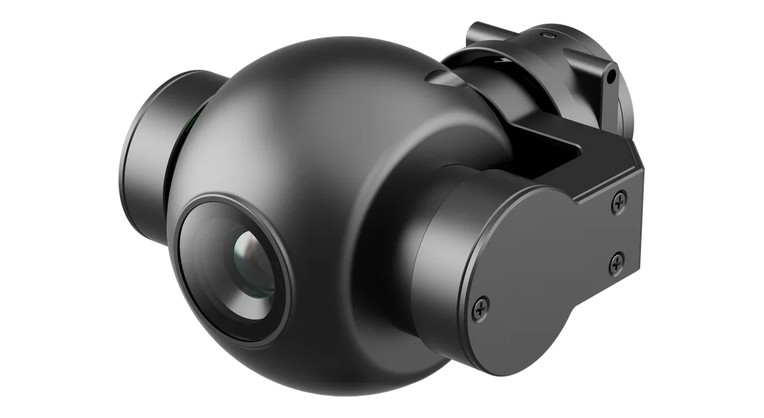

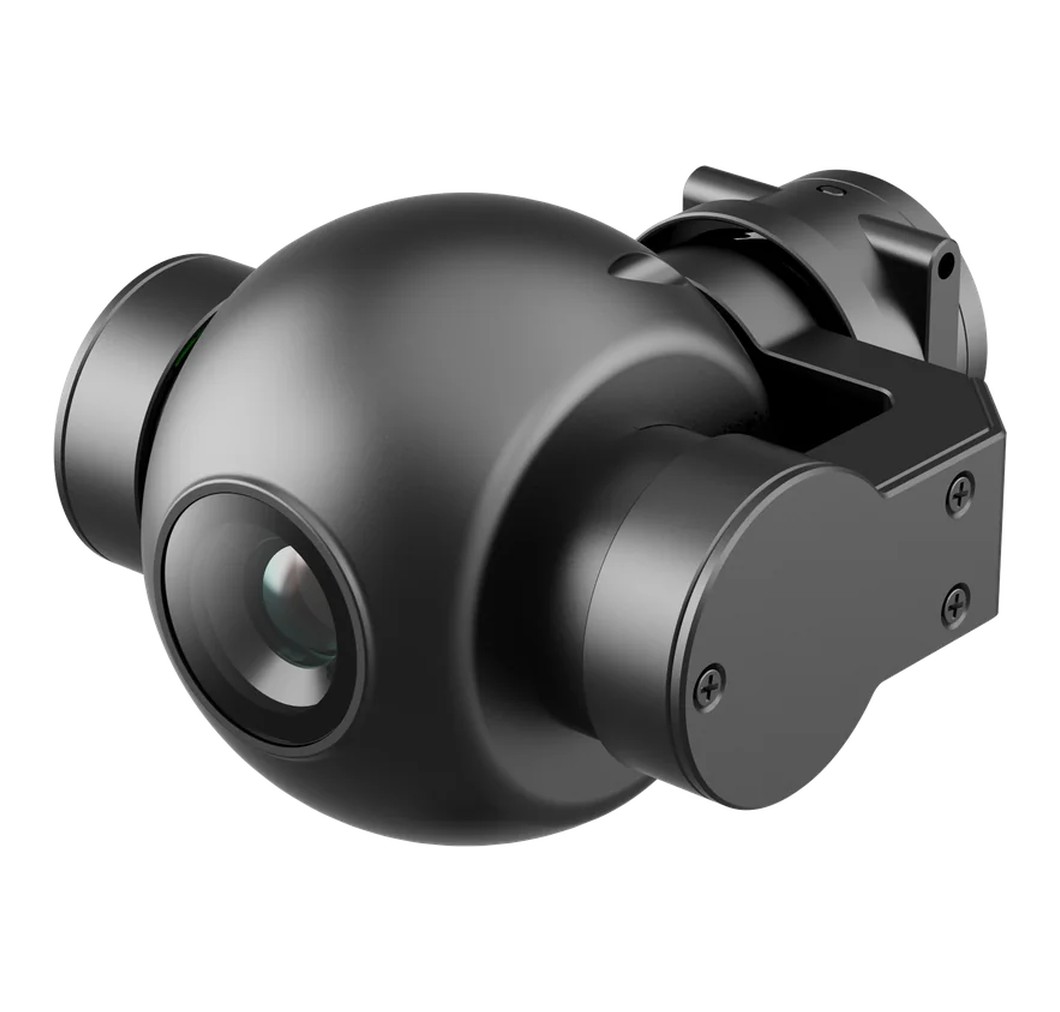

Two-axis image stabilization platform
Image stabilization ≤0.01°, angle measurement accuracy 0.1°.
lens

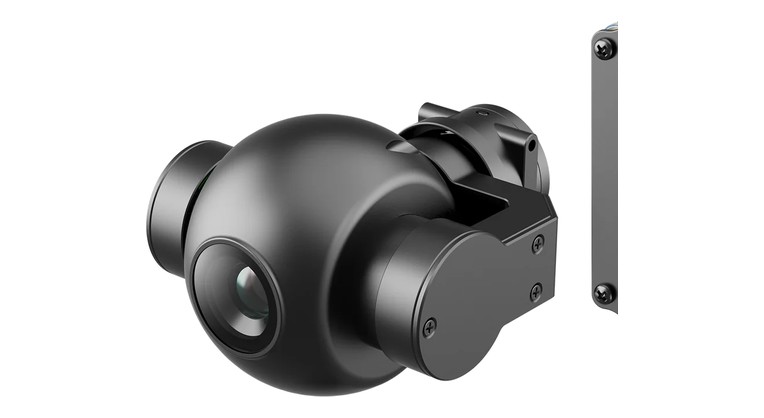

Four focal lengths available
8 / 12 / 16 / 25 mm, field of view 38.3°–12.7°.
Where do you actually work?
Security, emergency, inspection - occasions where it is necessary to lock the target while watching.
Target Tracking
Security Monitoring
Power Line Inspection
Emergency Rescue
Border Patrol
Pictures only represent the working environment, not specific customer projects.
Complete technical parameters
Parameters are taken from the existing specification sheet; items not listed should be confirmed by order.
Visible light and imaging
| Visible Sensor | 1/2.8" CMOS |
|---|---|
| Focal Length | 8 mm / 12 mm / 16 mm / 25 mm |
| Field of View | 38.3°×22.1° / 26.1°×14.8° / 19.7°×11.8° / 12.7°×7.1°（±5%） |
| Photo Resolution | 1920 × 1080 |
| Video Resolution | 1920 × 1080 @ 50fps |
| Recognition Range | With night visibility of at least 8 km, relative humidity no higher than 60% and background temperature difference of at least 5 K: over 170 m / 250 m / 330 m / 500 m for an adult target |
Stabilization and gimbal
| Stabilization Accuracy | ≤0.01° (disturbance 0.5° @ 1Hz) |
|---|---|
| Stabilization Axes | 2-axis |
| Gimbal Mechanical Range | -140° ~ +90° / -70° ~ +70° |
| Angular Accuracy | 0.1° |
| Controllable Range | Pitch: -100° to +60°; Yaw: -60° to +60° |
| Gimbal Weight | 70 g ± 5 g |
| Gimbal Dimensions | 45.0 x 58.0 x 70.0 mm |
AI features
| AI Functions | Autonomous recognition, locking, tracking |
|---|---|
| AI Module Weight | 56 g ± 2 g |
| Recognition Targets | Person, vehicle |
| Target Geolocation | CEP 10 m |
Electrical and interface
| Power Supply | DC 10.8–26.4 V @ 3 A, steady state ≤10 W |
|---|---|
| Video Output | Network, analog video |
| Control Interface | TTL serial, network |
| Operating / Storage Temperature | -20℃ ~ +55℃ / -45℃ ~ +60℃ |
5 frequently asked questions when choosing a model
Short answer, no sales talk. Your question was not found, please use the form at the bottom of the page.
How to choose the four focal lengths?
Select according to the required recognition distance: night recognition 170 / 250 / 330 / 500 m corresponding to 8 / 12 / 16 / 25 mm respectively.
What is the accuracy of image stabilization?
≤0.01° (disturbance 0.5°@1Hz), angle measurement accuracy 0.1°.
How much angle can it turn?
The controllable range is -100°~+60° for pitch and -60°~+60° for azimuth; the frame design range is -140°~+90° / -70°~+70°.
How much does it weigh?
The gimbal weighs 70±5 g, the AI module weighs 56±2 g, and the volume is 45×58×70 mm.
Power supply and interface?
DC10.8–26.4V@3A, steady state ≤10 W; video network/analog output, control TTL serial port/network.
Tell us about your aircraft model and mission
Tell us the machine body, load position size and required locking distance, and give us a quote after confirming the interface and power supply.
Other models in the same series
Select according to the number of channels, focal length and whether to stabilize the image.
AI tracking series
PUDD075CW single optical module
10 g single light, 113.1° wide angle, daytime >80 m.
AI tracking series
PUDD075CLT dual optical module
16.26 mm + 384×288 IR, 600 day / 100 m night.
AI tracking series
PUDD075CCT three-optical module
Telephoto + short focus + infrared three channels, 43 g.
