Installation
58×63×40 mm pan/tilt
GT1 75 g, GT2/GT3 95 g; AI module 56 g.
Image stabilization gimbal · Two-axis · Dual-sensor

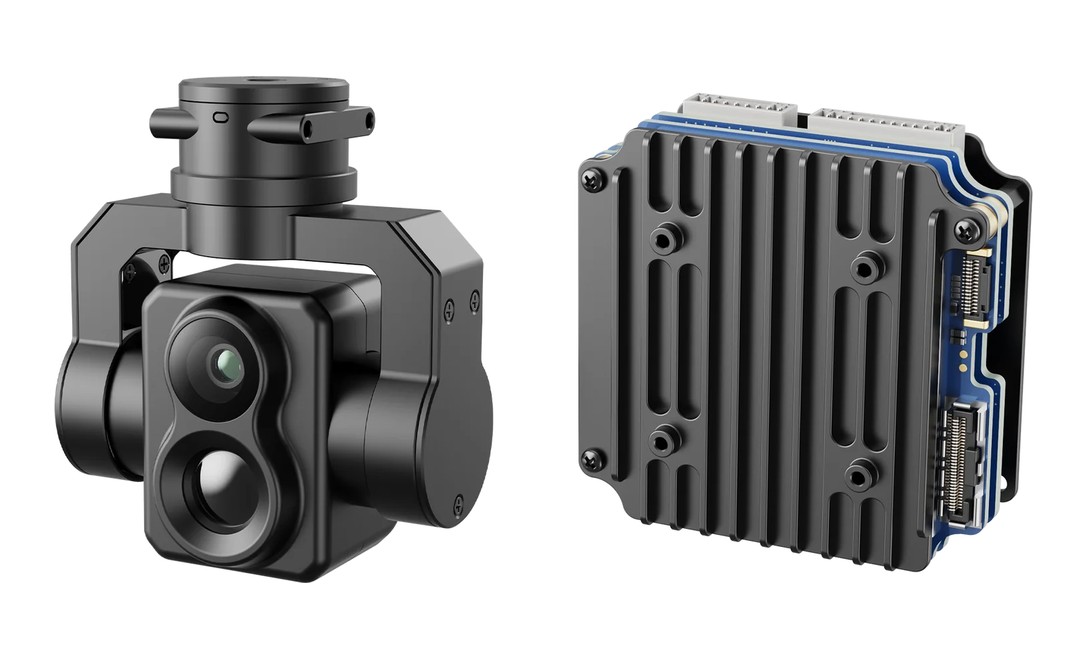

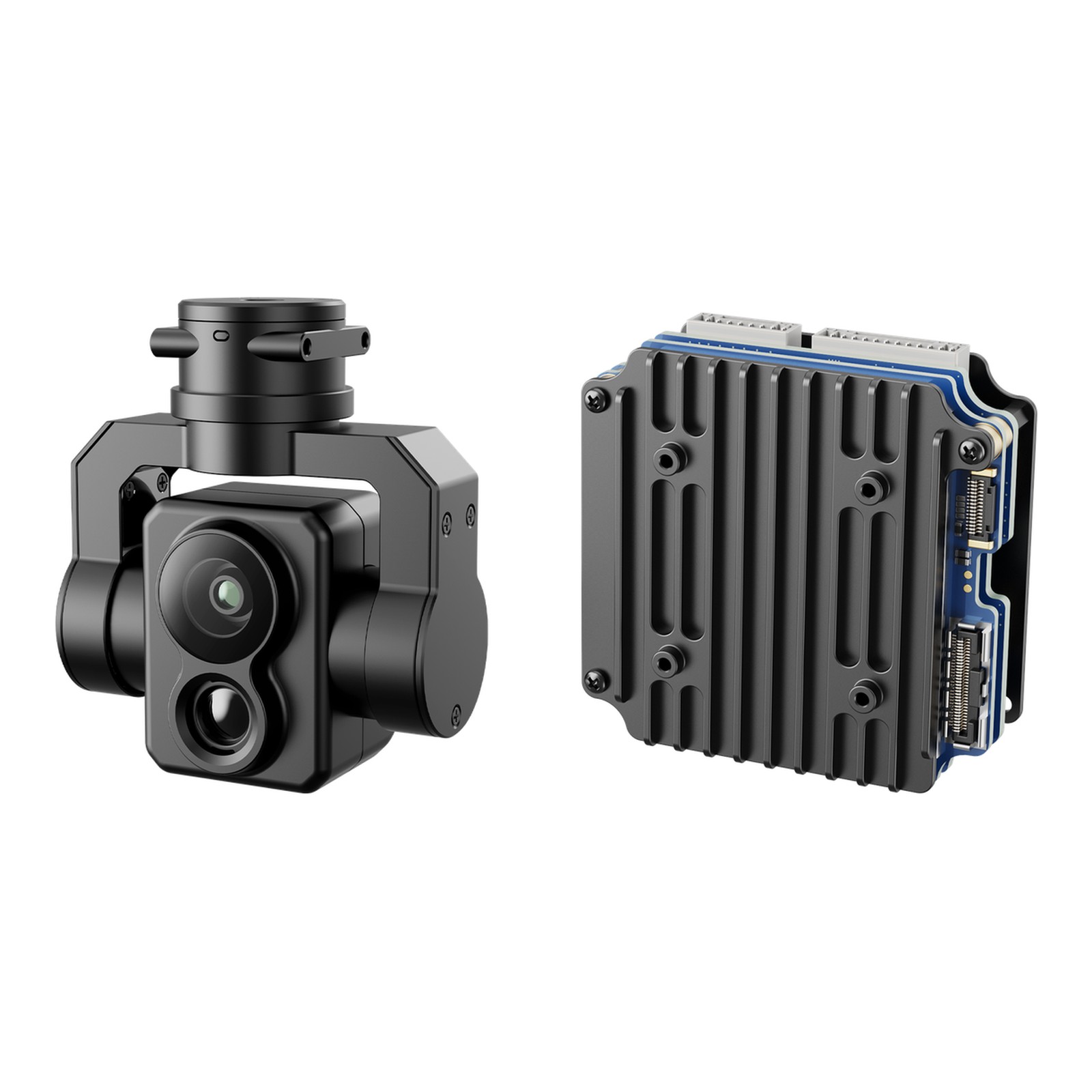

Micro 2-Axis Dual-Sensor Gimbal - PUDD075GT1/2/3
50 million visible light + infrared , three levels available (256×192 / 384×288 / 640×512); two-axis image stabilization ≤0.02°, weight 75/95/95 g.
Effective 48 million pixels visible light (GT1/2/3 three-speed infrared) Infrared three gears: GT1/GT2/GT3 Two-axis image stabilization ≤0.02°, 8K photography
One machine, three infrared gears
50 MP visible light, infrared optional 256×192 / 384×288 / 640×512.
Daytime adult recognition >400 m, night 400–500 m; AI specifically recognizes multi-rotor and fixed-wing UAVs, recognition, lock, tracking integrated.
Dual optical · Structure and interface
Two-axis gimbal 58×63×40 mm, GT1 75 g, GT2 and GT3 95 g.
- Gimbal Weight
- 75/95/95g
- Gimbal Dimensions
- 58×63×40mm
- Stabilization Accuracy
- ≤0.02°

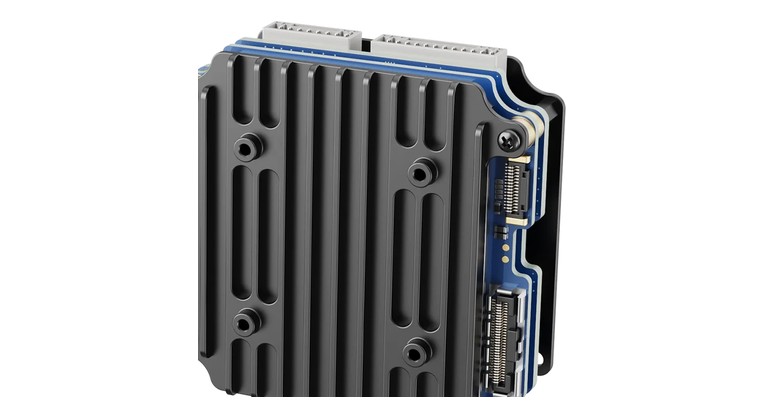

- AI module
- 56 g ± 2 g
- Controllable range: pitch -90°~+60°
- Angle measurement accuracy 0.1°; frame -140°~+95° / -70°~+70°
Three levels of infrared
How to choose GT1 / GT2 / GT3
If you want to be light and cheap, choose GT1; if you want to be more discerning, choose GT3’s 640×512. The three levels share the same set of visible light and AI.
- GT1
- 256×192 · 7 mm · 75 g
- GT2
- 384×288 · 9.1 mm · 95 g
- GT3
- 640×512 · 9.1 mm · 95 g
- Stable image
- ≤0.02° two axes
key part

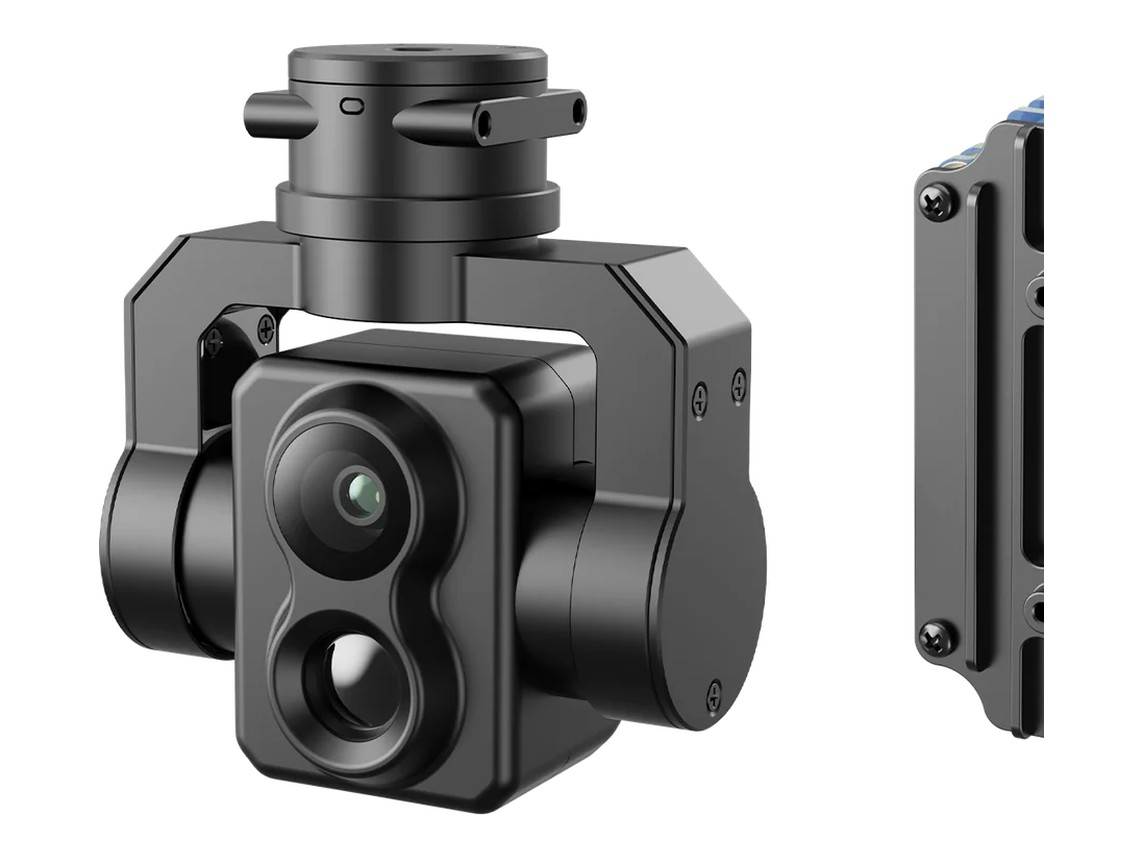

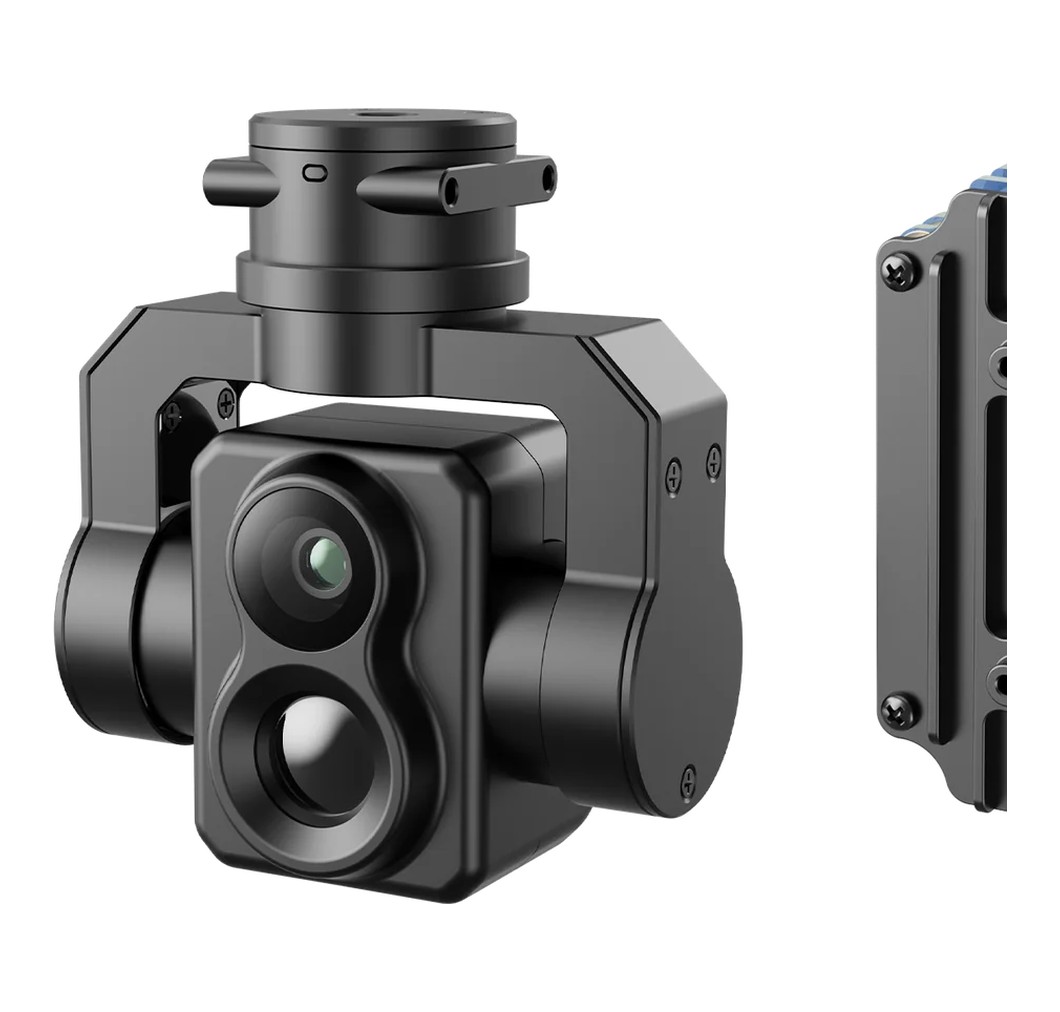

Three angles: installation, body, lens.

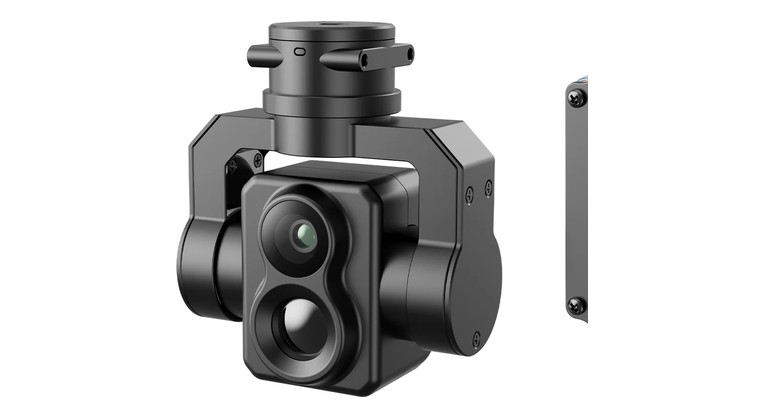

Ontology
Two-axis image stabilization platform
Image stabilization ≤0.02° (disturbance 0.5°@1Hz), angle measurement accuracy 0.1°.

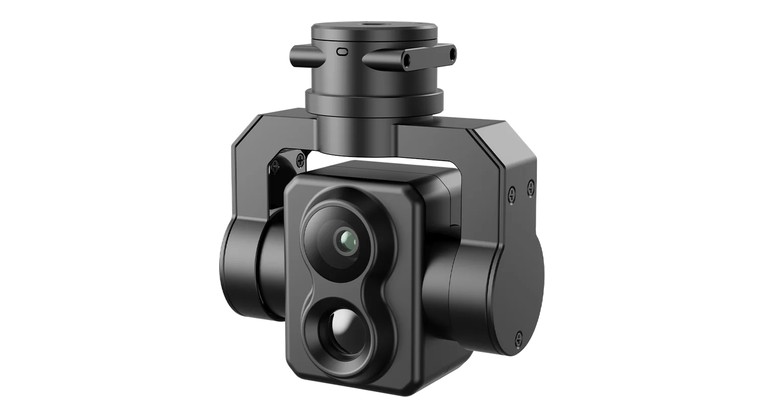

lens
50 million + infrared
Visible light 59.5°×35.5°; infrared range 24.8°–48.3°.
Where do you actually work?
Security, emergency, inspection - occasions where it is necessary to lock the target while watching.
Target Tracking
Security Monitoring
Power Line Inspection
Emergency Rescue
Border Patrol
Pictures only represent the working environment, not specific customer projects.
Complete technical parameters
Parameters are taken from the existing specification sheet; items not listed should be confirmed by order.
Visible light and imaging
| Visible Sensor | 1/2.5" CMOS, effective pixels 48 million |
|---|---|
| Focal Length | 4.7 mm |
| Field of View | 59.5° (H) × 35.5° (V) (±5%) |
| Photo Resolution | 8K / 4K / 1920 × 1080 |
| Video Resolution | 4K @ 50fps, 1920 × 1080 @ 50fps |
| Recognition Range | With daytime visibility of at least 8 km: over 400 m for an adult target; at night with visibility of at least 8 km, relative humidity no higher than 60% and background temperature difference of at least 5 K: over 400 m / 500 m |
Infrared channel
| Thermal Resolution | GT1: 256x192; GT2: 384x288; GT3: 640x512 |
|---|---|
| Thermal Focal Length | GT1: 7mm; GT2: 9.1mm; GT3: 9.1mm |
| Thermal Field of View | GT1: 24.8°x18.7°; GT2: 29.0°x21.7°; GT3: 48.3°x38.6° (±5%) |
| Thermal Photo Resolution | 640 × 512 |
| Thermal Video Resolution | 640×512@50fps |
Stabilization and gimbal
| Stabilization Accuracy | ≤0.02° (disturbance 0.5° @ 1Hz) |
|---|---|
| Stabilization Axes | 2-axis |
| Gimbal Mechanical Range | -140° ~ +95° / -70° ~ +70° |
| Angular Accuracy | 0.1° |
| Controllable Range | Pitch: -90° to +60° |
| Gimbal Weight | GT1: 75 g ± 5 g; GT2: 95 g ± 5 g; GT3: 95 g ± 5 g |
| Gimbal Dimensions | 58.0 x 63.0 x 40.0 mm |
AI features
| Target Types | Multirotor and fixed-wing UAVs |
|---|---|
| AI Functions | Autonomous recognition, locking, tracking |
| AI Module Weight | 56 g ± 2 g |
| Target Geolocation | CEP 10 m |
Electrical and interface
| Power Supply | DC 10.8–26.4 V @ 3 A, steady state ≤9 W |
|---|---|
| Video Output | Network, analog video |
| Control Interface | TTL serial, network |
| Operating / Storage Temperature | -20℃ ~ +55℃ / -45℃ ~ +60℃ |
5 frequently asked questions when choosing a model
Short answer, no sales talk. Your question was not found, please use the form at the bottom of the page.
What's the difference between GT1/GT2/GT3?
The only difference is infrared: GT1 256×192 (7 mm, 75 g), GT2 384×288 (9.1 mm, 95 g), GT3 640×512 (9.1 mm, 95 g). Visible light is the same as AI.
What resolution can you shoot at?
Visible light 8K / 4K / 1080P photography, 4K@50fps or 1080P@50fps video.
What is the recognition distance?
Under the condition of daytime visibility of 8 km, the distance for adults is >400 m; at night, the two gears of 400 m / 500 m are listed according to the original specifications, and the specific gear is subject to the optional gear.
What level of stability is it?
Two-axis gyro image stabilization ≤0.02° (disturbance 0.5°@1Hz), angle measurement accuracy 0.1°.
Power supply and output?
DC10.8–26.4V@3A, steady state ≤9 W; video network/simulation, control TTL serial port/network.
Tell us about your aircraft model and mission
Tell us the machine body, load position size and required locking distance, and give us a quote after confirming the interface and power supply.
