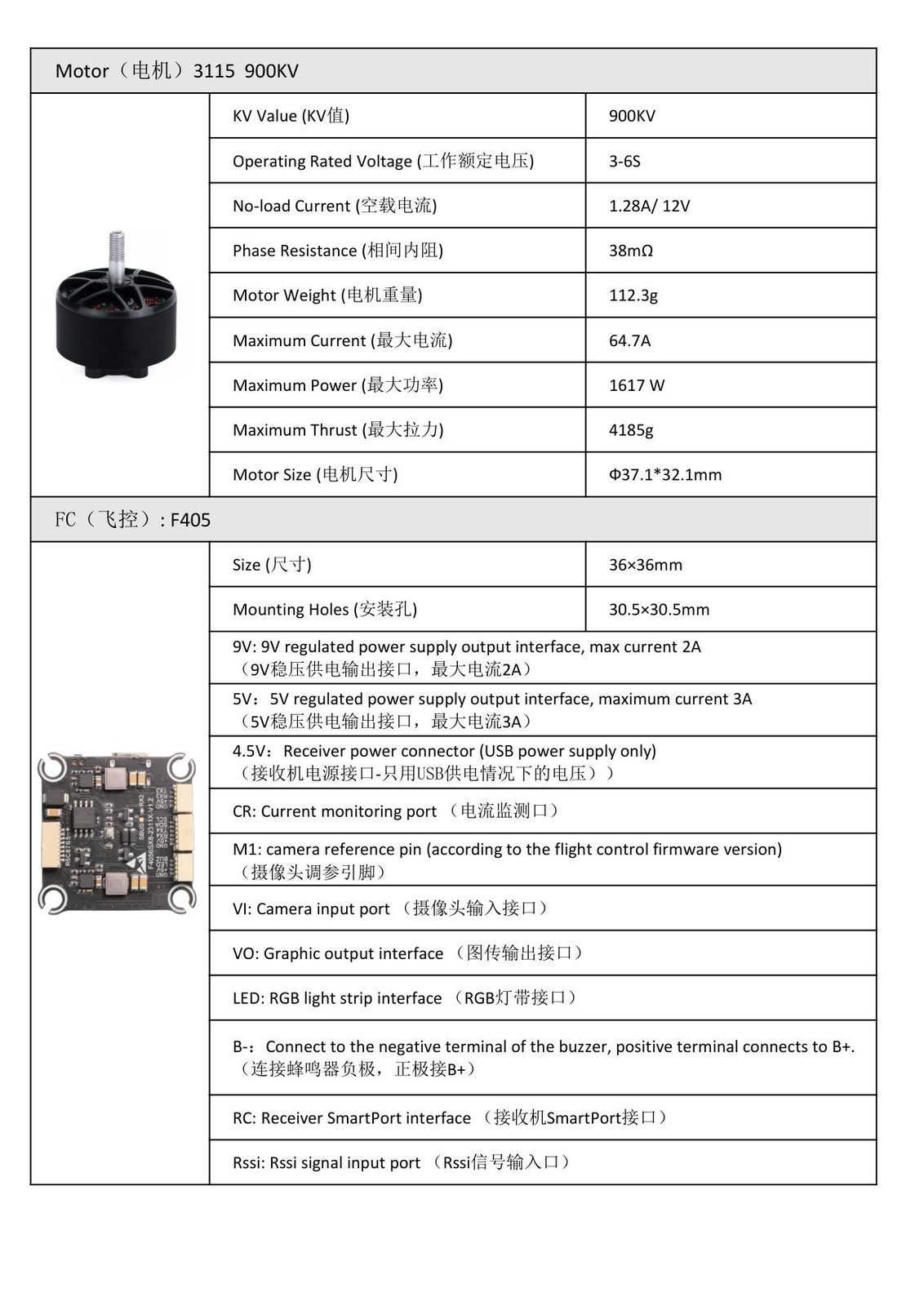

Motor
3115 external rotor motor
Equipped with a 10-inch tri-blade propeller, matched according to the blade clearance and mounting hole position of the frame.
FPV drone · 10-inch carbon platform

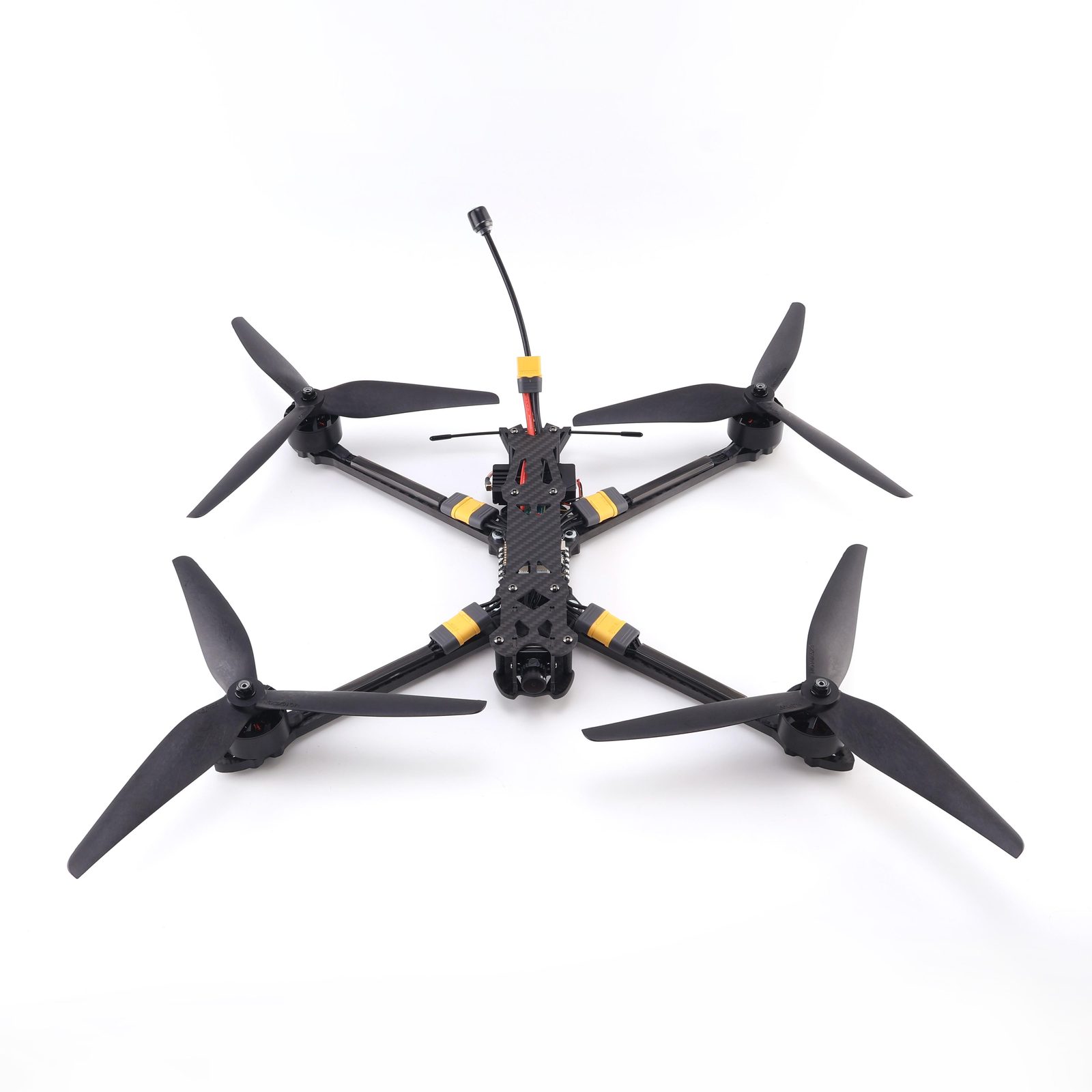

10-Inch Heavy-Lift FPV Drone
A 10-inch carbon X-frame that carries 2.5–3 kg and still tops 150 km/h. Mark 4 plates, 7 mm arms, 3115 motors on a 4-in-1 ESC — quoted as a bare airframe or as a complete platform with the electronics you specify.
3 kg class payload, 150 km/h top speed, short-medium range heavy cargo delivery 10-inch Carbon Fiber frame, foldable for one-hand carry Universal 4S–6S battery, video link 10 km class
It lifts almost three times its own weight
Empty weight 1028 g 10-inch frame, lifts 2.5–3 kg payload — payload nearly three times its own weight.
3115 motor with 4-in-1 ESC, full load 8–12 min, no load 30 min; 8–10 km video link, 150 km/h, one 6S 10000mAh battery completes a sortie.
The frame that makes the 3 kg possible
Mark 4 carbon plate with 7 mm arms, wheelbase 427 mm, bottom plate 3 mm, top plate 2 mm — no flex under full load.
- Structure
- Mark 4
- Wheelbase
- 427 mm
- Carbon
- T300 / T700
- Bottom plate
- 3 mm
- Top plate
- 2 mm
- Arm thickness
- 7 mm
- Electronics layer
- 25 mm
- Camera spacing
- 20 mm
- Mark 4 Carbon Fiber Frame (T300/T700), Wheelbase 427 mm
- Motor 3115 900KV + 60A ESC (3–6S)
- Video Link 4.9/5.8G 3W, Max Range 8–10 km

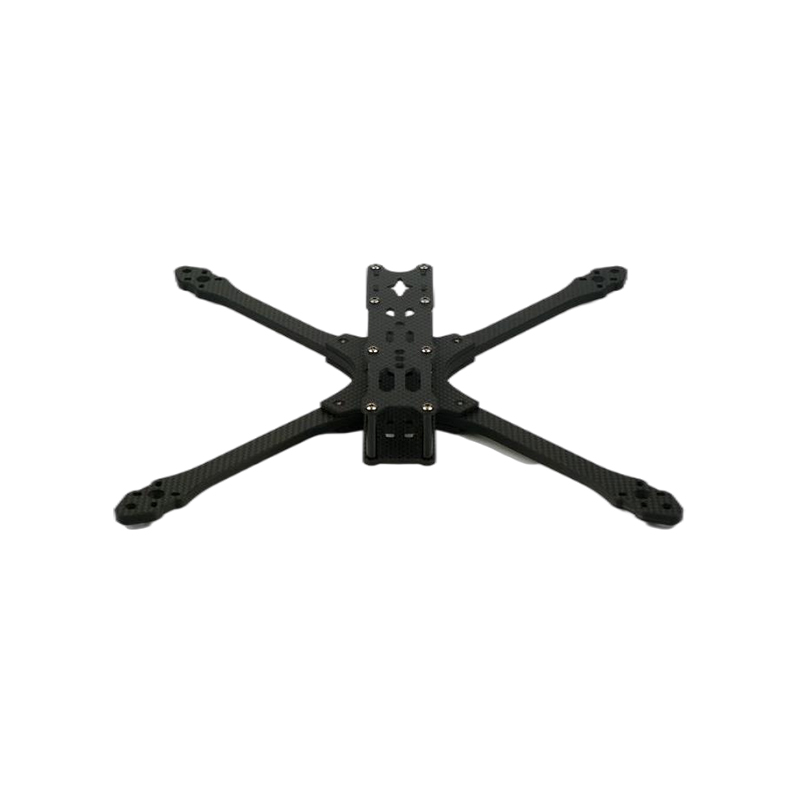

Production part
Mark 4 plates, before the electronics go in
A 3 mm bottom plate carries the stack and the arms; a 2 mm top plate closes it. T300/T700 laminate — the weave is the material, not a finish.
- Bottom plate
- 223 × 108 mm
- Top plate
- 216 × 50 mm
- Arm root
- 7 mm
Three parts that decide how it flies
Three parts buyers ask for photographs of before they order: the motor, the 4-in-1 ESC and the video transmitter.

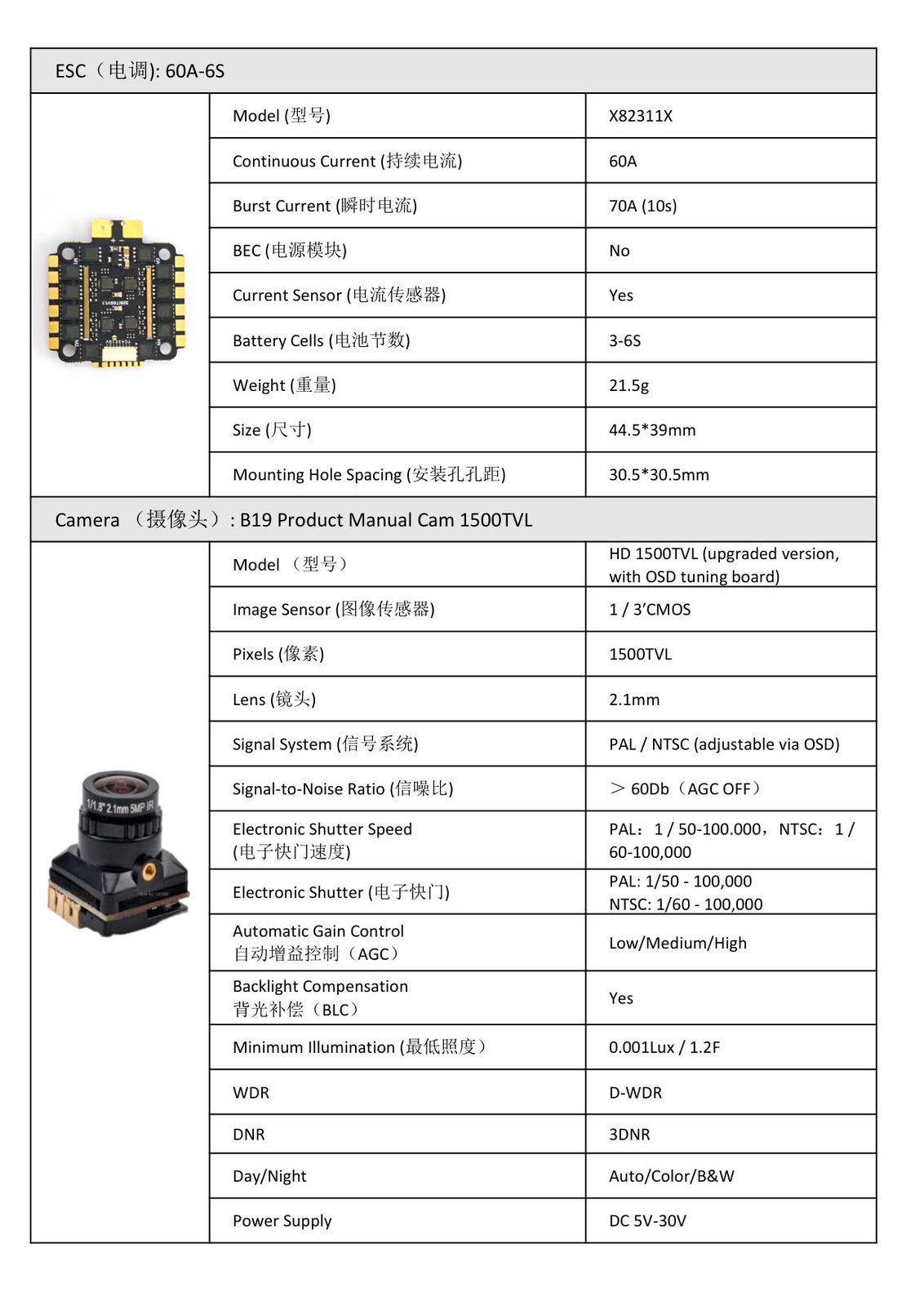

ESC
Four-in-one electric control board
One board has four-way motors. If it breaks, replace it with another one, not four-way motors.

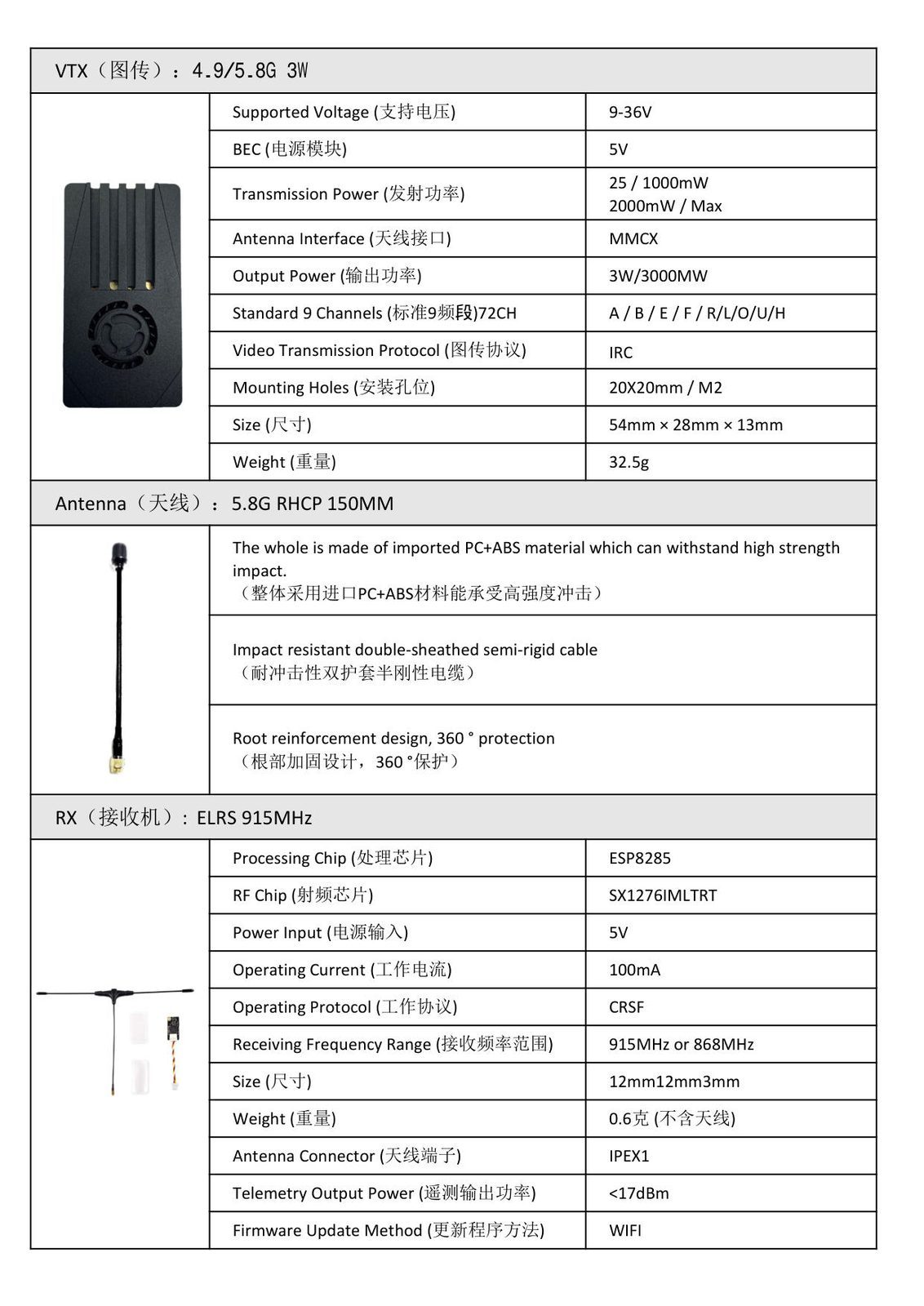

Picture transmission
4.9/5.8G 3W image transmission
MMCX antenna base, maximum control distance 8–10 km.
What a 10-inch FPV is actually used for
Typical duty for this frame — not case studies. Tell us the payload weight and we will say whether the 10-inch is the right one.
Cinematic Videography
Rapid Cargo Delivery
Wide-Area Survey
Photographs show the kind of setting — not specific customer deployments.

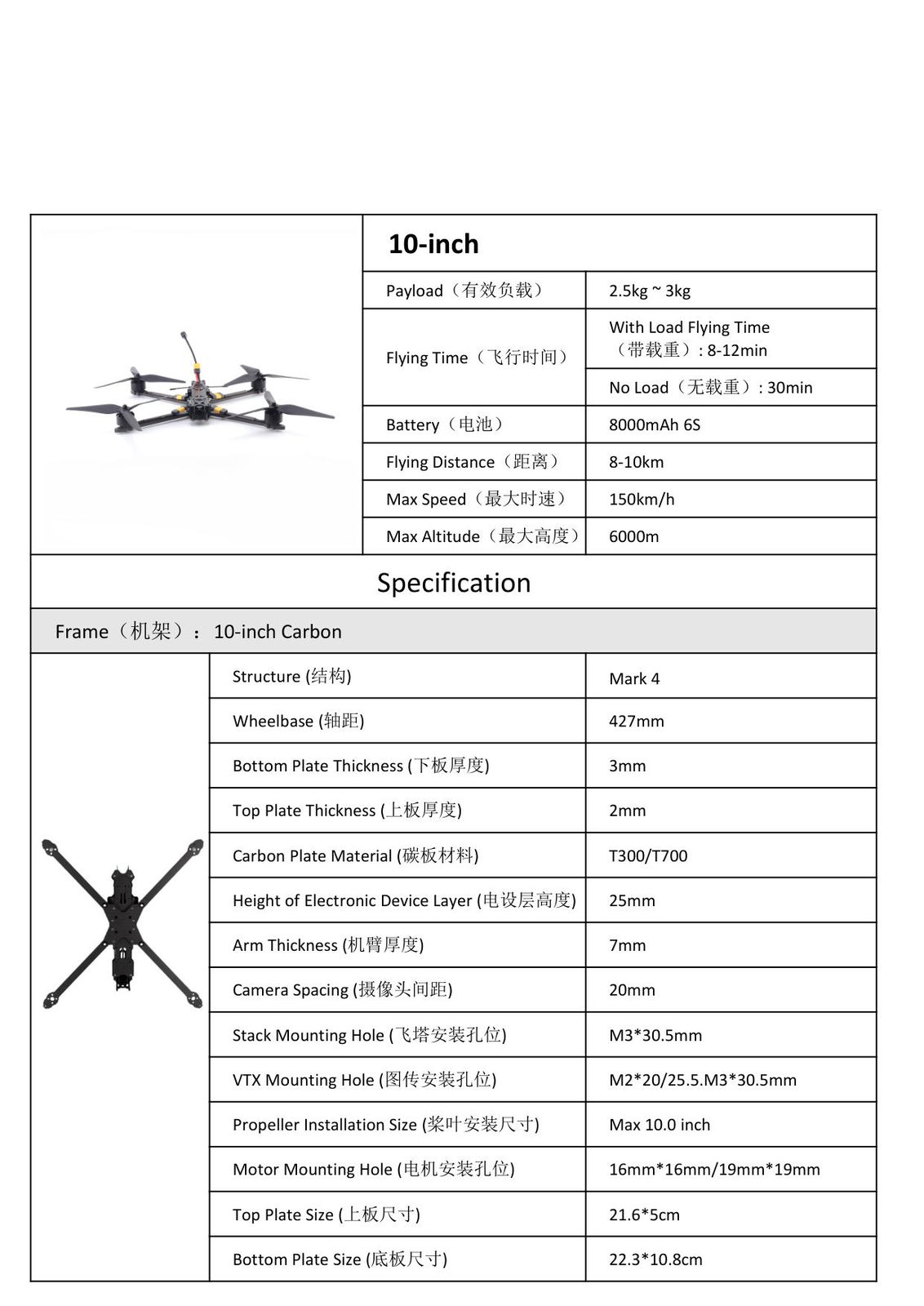

Full specification
Airframe and flight figures only — the numbers that decide whether this platform fits your job.
flying platform
| Payload capacity | 2.5 – 3.0 kg |
|---|---|
| Flight time, loaded | 8 – 12 min |
| Flight time, no payload | 30 min |
| Battery (listed) | 8000 mAh 6S |
| Battery (recommended) | 6S 10000 mAh 45C · XT60 / XT90 |
| Flight distance | 8 – 10 km |
| Max speed | 150 km/h |
| Max altitude | 6000 m |
| Bare weight | 1028 g |
| Dimensions | L350 × W340 × H40 mm |
Rack and power
| Structure | Mark 4 · 10-inch carbon |
|---|---|
| Wheelbase | 427 mm |
| Carbon plate material | T300 / T700 |
| Bottom / top plate | 3 mm / 2 mm |
| Arm thickness | 7 mm |
| Electronics layer height | 25 mm |
| Camera spacing | 20 mm |
| Stack mounting holes | M3 × 30.5 mm |
| VTX mounting holes | M2 × 20 / 25.5 mm · M3 × 30.5 mm |
| Motor mounting holes | 16 × 16 mm / 19 × 19 mm |
| Propeller size | Max 10.0 inch |
| Top / bottom plate size | 21.6 × 5 cm / 22.3 × 10.8 cm |
Full specification
Everything else, in one file

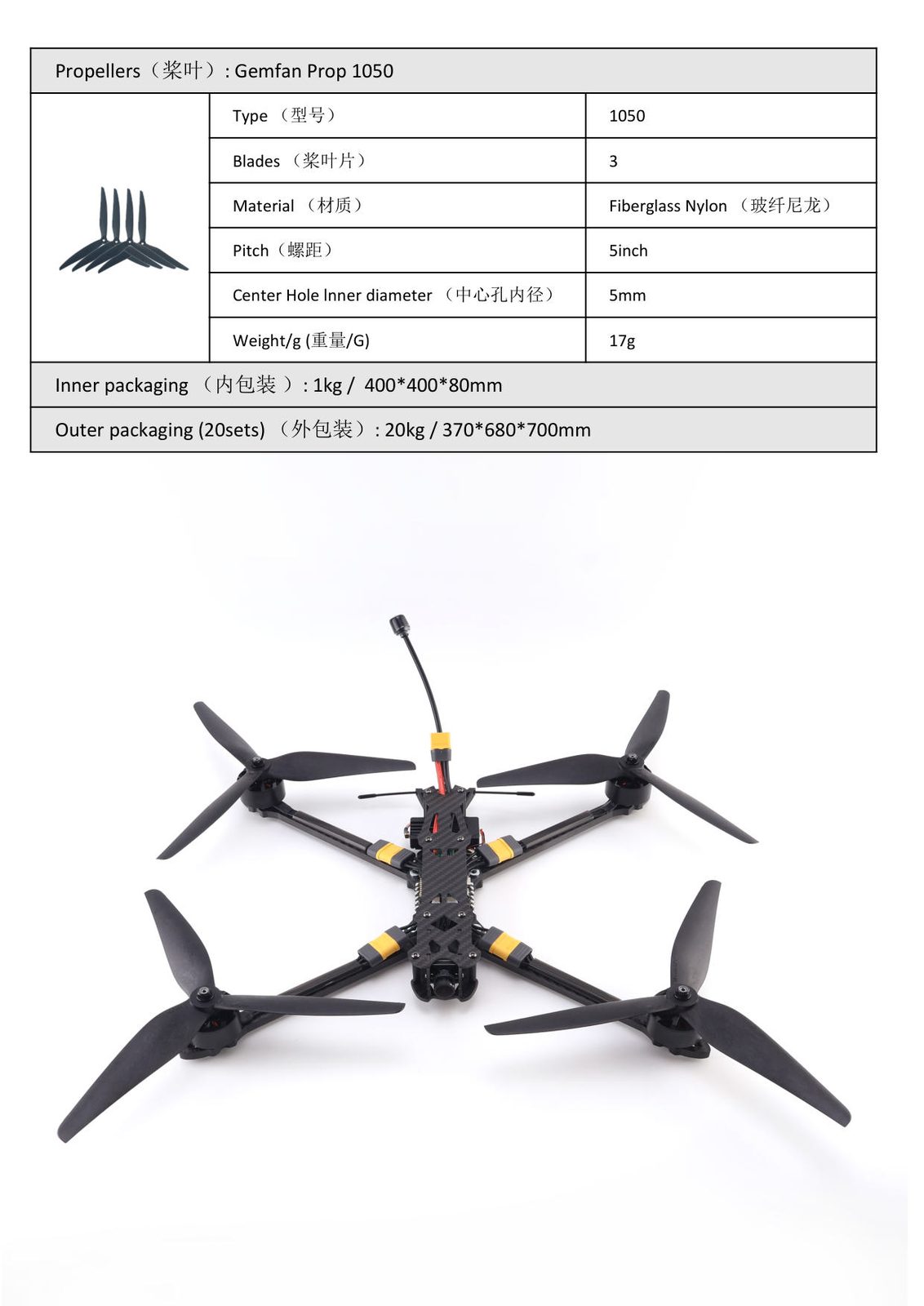

Motor, flight controller, ESC, video transmitter, receiver, camera and propeller tables — plus the frame drawing and export carton data. Five pages, English, no registration.
Download datasheet PDF · 5 pages · 7.8 MB
Questions buyers ask before the first order
Short answers, no sales padding. If yours isn't here, the form at the bottom reaches the workshop directly.
Can I order the frame only, without electronics?
Yes. The frame, plates and hardware can be quoted on their own — say so in the form and skip the electronics. The stack mounting is 30.5 × 30.5 mm, the VTX pattern is 20 × 20 mm and the motor holes are 16 × 16 mm and 19 × 19 mm, so most 30.5 mm stacks and 3115-class motors drop straight in. Send the parts list you plan to use and we will check the 25 mm layer height against it.
What flight time should I expect with my payload?
Two published points: 30 minutes with nothing on board, 8–12 minutes carrying 2.5–3 kg. Between those, the figure depends on pack, propellers and throttle style. Tell us the payload weight and the battery you intend to fly and we will tell you what we have actually flown with that combination — and where we are guessing.
Is a battery included?
An 8000 mAh 6S pack is the listed option; 6S 10000 mAh 45C with XT60 or XT90 connectors is what we recommend. Say whether you want us to source cells or you will supply your own, and the quotation will show it as a separate line.
Can the electronics be changed?
Flight controller, video transmitter and camera are listed as optional items, and the frame takes third-party 30.5 × 30.5 mm stacks. Two limits matter: the 25 mm space between the plates, and the 10-inch propeller clearance. Everything else is a connector question we can answer from a photo of your stack.
How is it packed for export?
One set ships in an inner carton of about 1 kg; twenty sets go into a single outer carton of about 20 kg. Carton dimensions are in the specification sheet — send them to your forwarder with the quantity you need. Lithium cells travel under separate air-freight rules and are quoted on their own line.
Do you supply spare arms and plates?
Carbon parts are cut from the same T300/T700 stock as the production frames. Ask for a spares list with your order so arms, plates and landing gear are quoted at the same time rather than ordered one at a time later.
What is the minimum order and lead time?
to confirm Minimum quantity, sample policy and lead time are commercial terms, so say what you need and we will put the real numbers in the quotation rather than on a web page that goes stale.
Can you brand it for us (OEM)?
to confirm Airframe marking and carton printing depend on quantity and on whether you need your own documentation pack. Send the artwork and the quantity you have in mind and we will confirm what is possible before you commit.
Tell us the payload. We'll tell you the build.
Tell us the model, load position size and the recognition distance you want to achieve, and we will configure and quote you after confirming the interface and power supply.
Wrong load range? See other three sizes
If the 2.5–3 kg range is not suitable, 7 / 13 / 15 inches are the options for both sides.
