Motor
TUO FEI 4212 440KV
Equipped with 13-inch tri-blade propellers and 8S power supply, the take-off is not soft under heavy loads.
FPV ride through machine · 13 inches

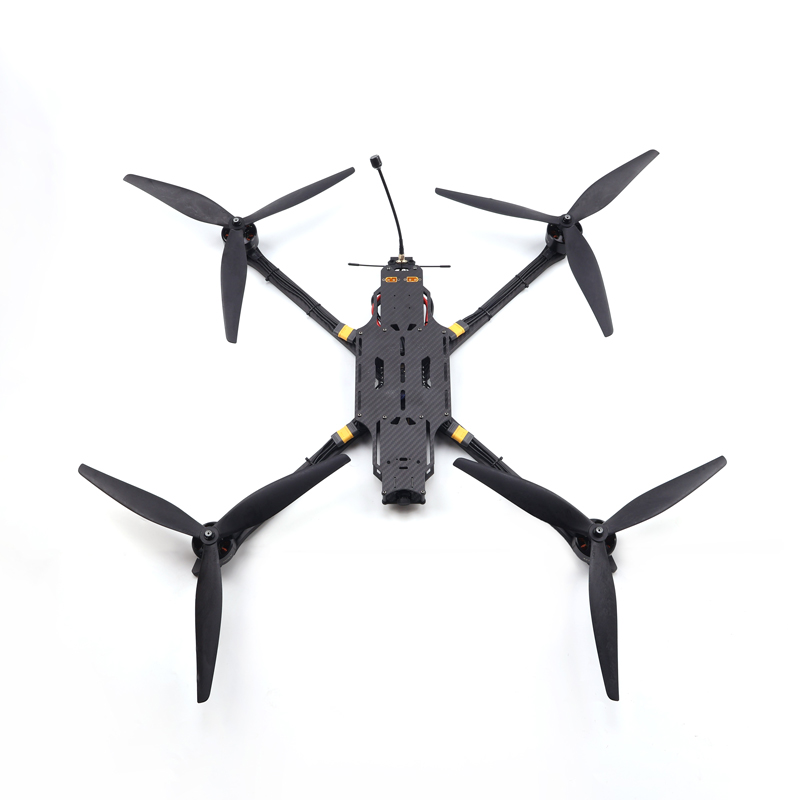

13-Inch FPV Drone
Maximum payload 6 kg , top speed 130 km/h ; bare weight 1980 g, wheelbase 536 mm, 8S dual-battery solution.
8–15 minutes flight with load, 30 minutes without load Image transmission distance 10 km, maximum ceiling 5000 m 8S 16000 50C dual battery, XT90 plug ×2
6 kg payload, dual battery 8S
True X frame with 536 mm wheelbase, carries 5–6 kg, powered by dual 8S batteries.
4212·440KV motor with 80A 4-in-1 ESC, full load 8–15 min, no load 30 min; 10 km video link, 130 km/h, equipped with dual 8S 16000mAh 50C batteries.
True X frame with 536 mm wheelbase
True X carbon frame: wheelbase 536 mm, arms 10 mm, top and bottom plates each 3 mm, no deformation under 6 kg load.
- Wheelbase
- 536 mm
- Naked weight
- 1980g
- Overall machine size
- L489×W489×H80 mm
- Plate thickness
- up/down 3 mm
- Fly tower hole position M3×30.5 mm, image transmission hole position M2×20/25.5 mm, M3×30.5 mm
- Motor hole position M4×30 mm, maximum 13-inch propeller installed
Power system
TUO FEI 4212 440KV + AM32 4-in-1 80A
Four-in-one 80A ESC, 8S direct supply, four sets of solder pads directly connected to the motor. The 13-inch three-blade propeller is equipped with 440KV, low speed and high torque - it is effortless to take off with a heavy load and saves electricity on long flights.
- Motor
- TUO FEI 4212 · 440KV
- ESC
- AM32 4-in-1 80A
- propeller
- 13 inch trefoil
- Battery
- 8S 16000 50C×2
key components
Motors, flight control, and image transmission are the three things that determine whether this aircraft is good at flying or not.
flight control
TUO FEI F405 (optional)
Betaflight firmware ecosystem, fly tower hole position M3×30.5 mm.
Picture transmission
TUO FEI 3W (optional)
5.8G 40 channels, with RHCP antenna, 10 km in open areas.
What is a 13-inch computer actually used for?
Medium-range heavy object delivery and inspection with equipment - it can be carried more easily than the 10-inch model and easier to move than the 15-inch model.
Heavy Cargo Delivery
High-Altitude Survey
Long-Range Monitoring
Customised Industry Tasks
Pictures only represent the working environment, not specific customer projects.
Complete technical parameters
Arranged according to 2026-10 configuration; flight control, image transmission, and camera are optional items and are confirmed according to the order.
flying platform
| payload | 5–6kg |
|---|---|
| flight with payload | 8–15 minutes |
| empty flight | 30 minutes |
| maximum speed | 130km/h |
| maximum ceiling | 5000m |
| Image transmission distance | 10 km |
Frame
| structure | True X |
|---|---|
| Wheelbase | 536 mm |
| Overall machine size | L489×W489×H80 mm |
| Material | Carbon fiber T300/T700 |
| Upper/lower plate thickness | 3/3mm |
| Electrical floor height | 20 mm |
| Arm thickness | 10mm |
Power and battery
| Motor | TUO FEI 4212 · 440KV |
|---|---|

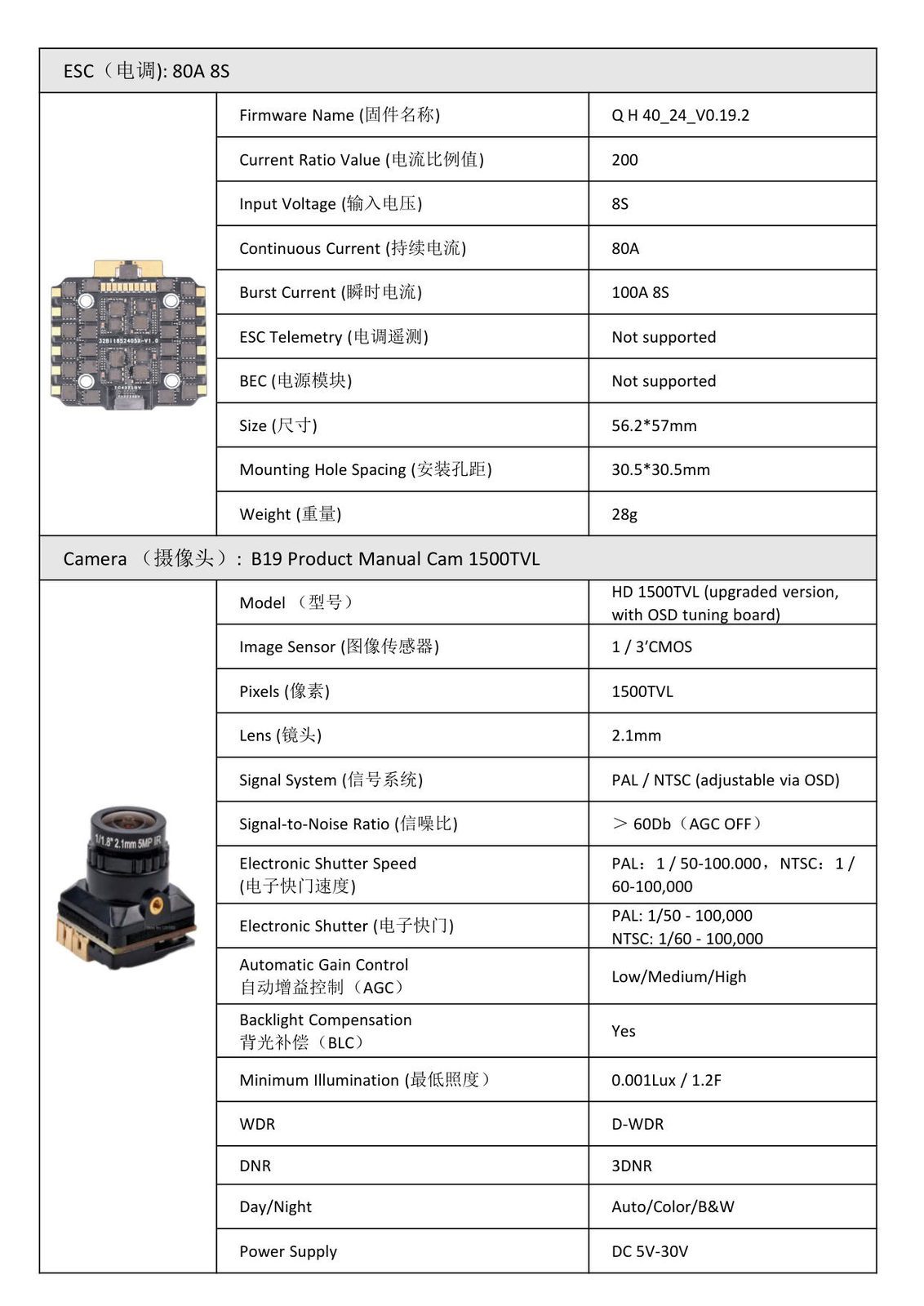

| ESC | AM32 4-in-1 brushless 80A |

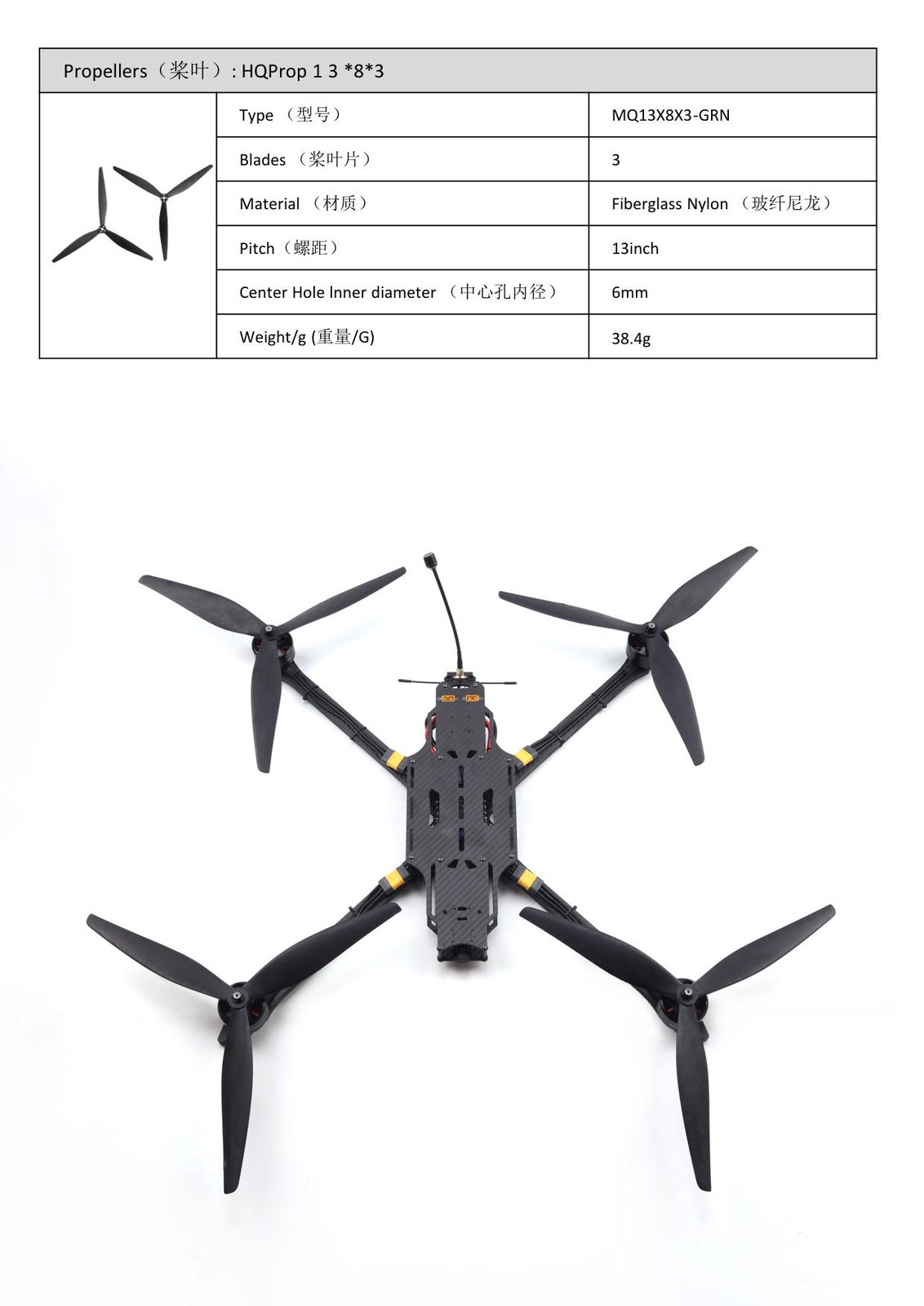

| propeller | 13 inch trefoil |
| Recommended battery | 8S 16000 50C ×2 · XT90 |
| Naked weight | 1980g |
Video and picture transmission
| Camera | 1500TVL low-latency FPV (optional) |
|---|---|

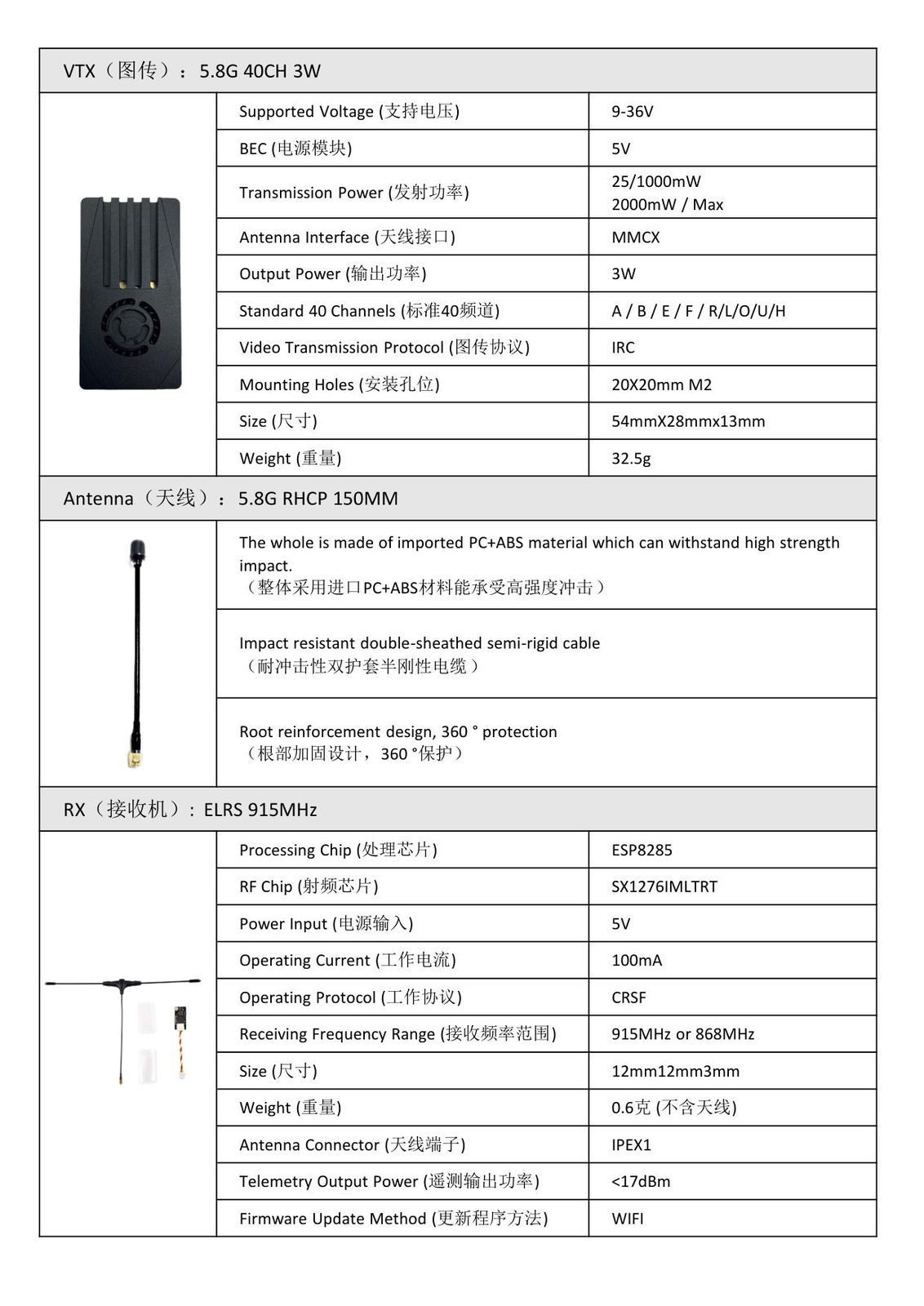

| Picture transmission | TUO FEI 3W (optional) |
| Image transmission channel | 5.8G · 40 channels |
| Antenna | 5.8GRHCP |
Flight control and remote control
| Flight Control | TUO FEI F405 (optional) |
|---|---|
| Receiver | ELRS 915MHz (CRSF) |
| Fly tower hole location | M3×30.5mm |
5 most frequently asked questions before placing an order
Short answer, no sales talk. Your question was not found, please use the form at the bottom of the page.
6 kg load capacity, how to match the battery?
8S 16000 50C Two pieces connected in parallel (XT90 plug ×2). A single unit can carry less than 6 kg of airborne weight, and dual batteries are standard for this load-bearing gear.
Is 8–15 minutes enough?
Suitable for delivering heavy objects over short and medium distances. If you want to stay in the air longer, reduce the payload, or split the mission into two trips - more cost-effective than hard-stacked batteries.
Will the 13-inch propellers with a 536 mm wheelbase hit the fuselage?
No, the frame is designed for a maximum of 13-inch propellers, leaving a safe gap between the propeller disc and the fuselage.
Bare weight 1980 g Battery included?
Not included. 1980 g is the empty machine (including frame, motor, ESC, flight control, etc.), and the battery is calculated as 8S 16000.
Can I hang a gimbal or drop a device?
There is this margin for a load capacity of 5–6 kg, depending on the mounting weight and center of gravity. Send us the parameters of the equipment to be installed and confirm the installation position and power supply before making a decision.
Tell me what you want to fly and how far you want to fly
Tell us the mounting weight, one-way distance and take-off and landing site, we will match the battery and optional accessories according to the task, and then give you a delivery date.
