Install

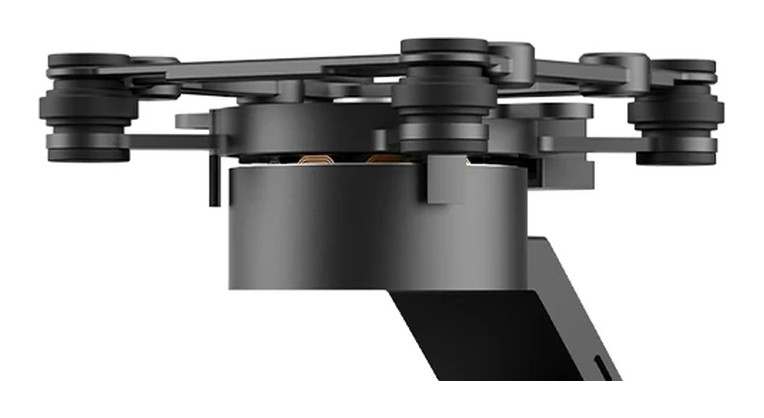

Top mounting and shock absorption

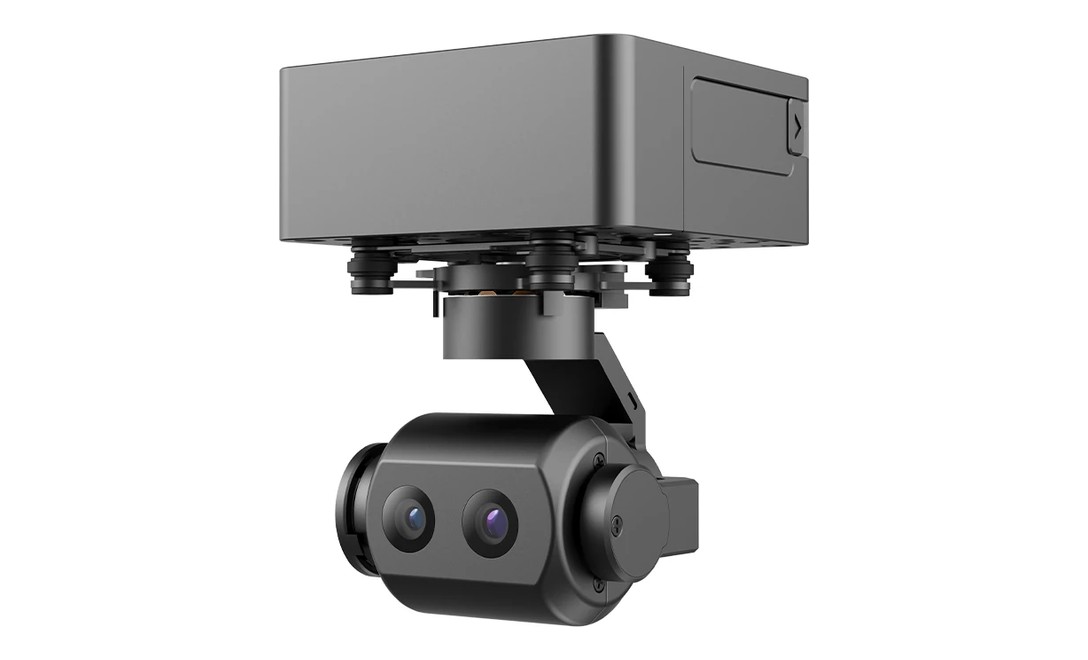

Three-frame gyro-stabilized structure, the wiring harness is routed inside the fuselage and is not exposed; gimbal 55 g + AI component 38 g, total weight ≤90 g.
Image stabilization gimbal · Dual visible light

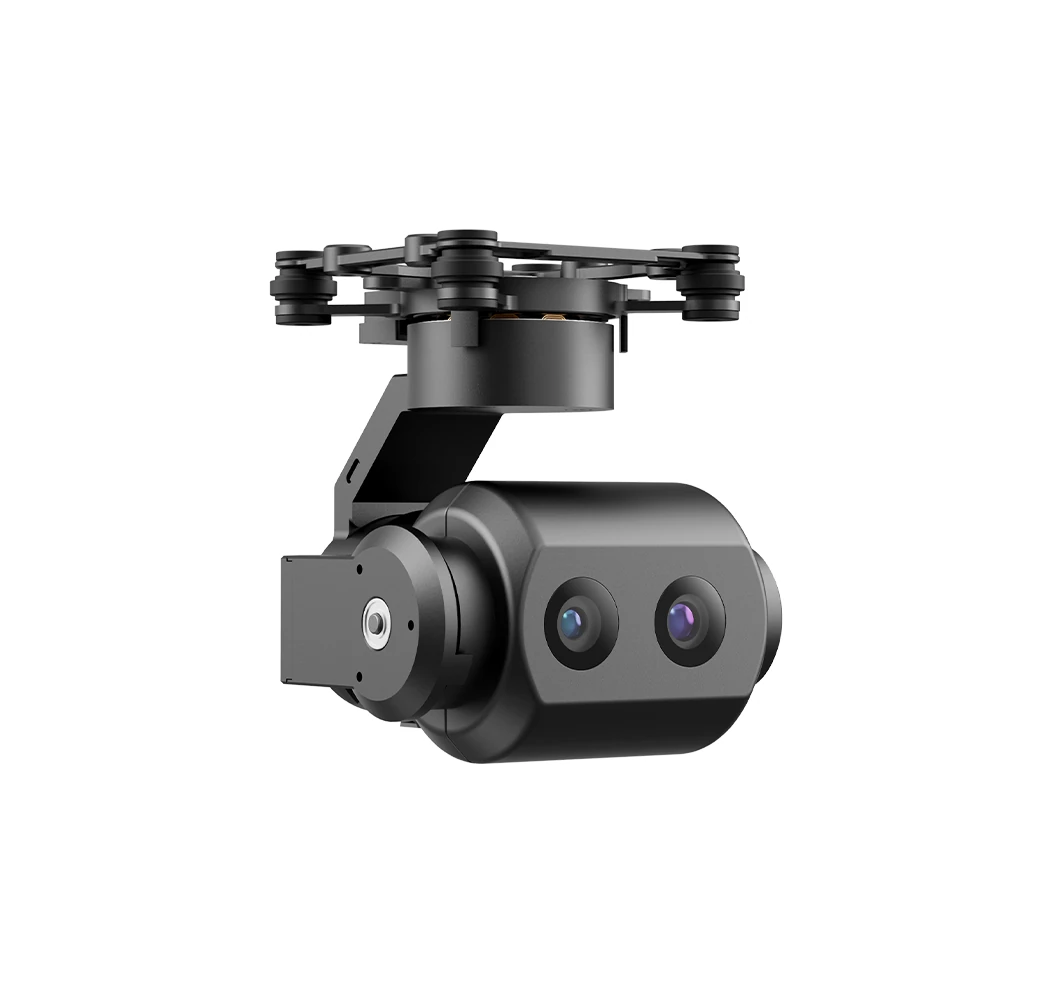

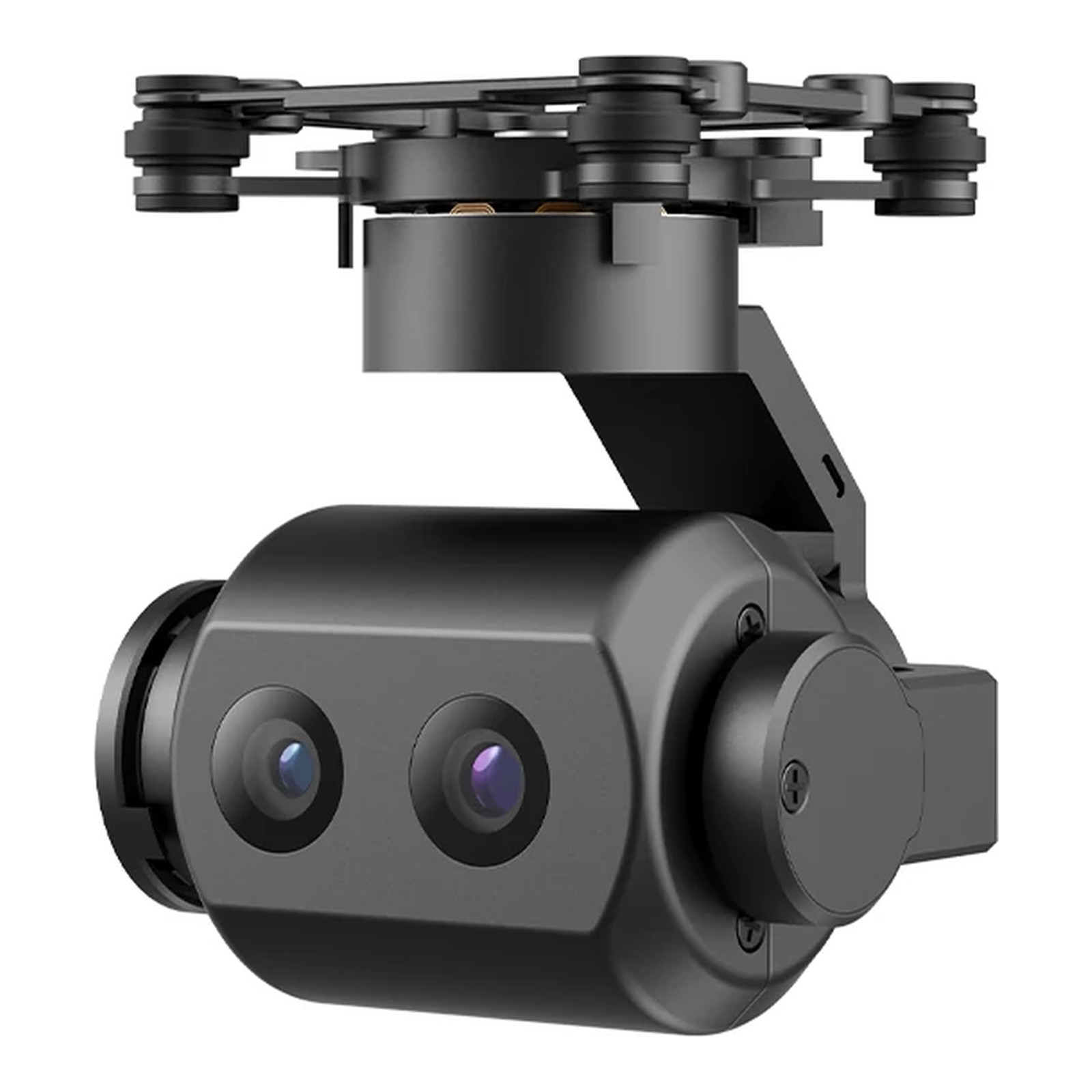

Micro Dual-Visible Gimbal - PUTD055
13 million wide-angle + 2 million starlight dual visible light, total weight ≤90 g ; the starlight channel can produce 1080P/50fps color images without fill light.
Total weight ≤90 g (gimbal 55 g + AI component 38 g) Starlight-level low-light imaging without infrared fill light 1080P/50fps real-time output
You can see details during the day, but you can see them at night
13 MP wide-angle + 2 MP starlight, both channels visible light.
Starlight channel color output without fill light, 1080P@50fps; AI autonomous recognition, lock, track people/vehicles, gimbal 55 g, total weight ≤90 g.

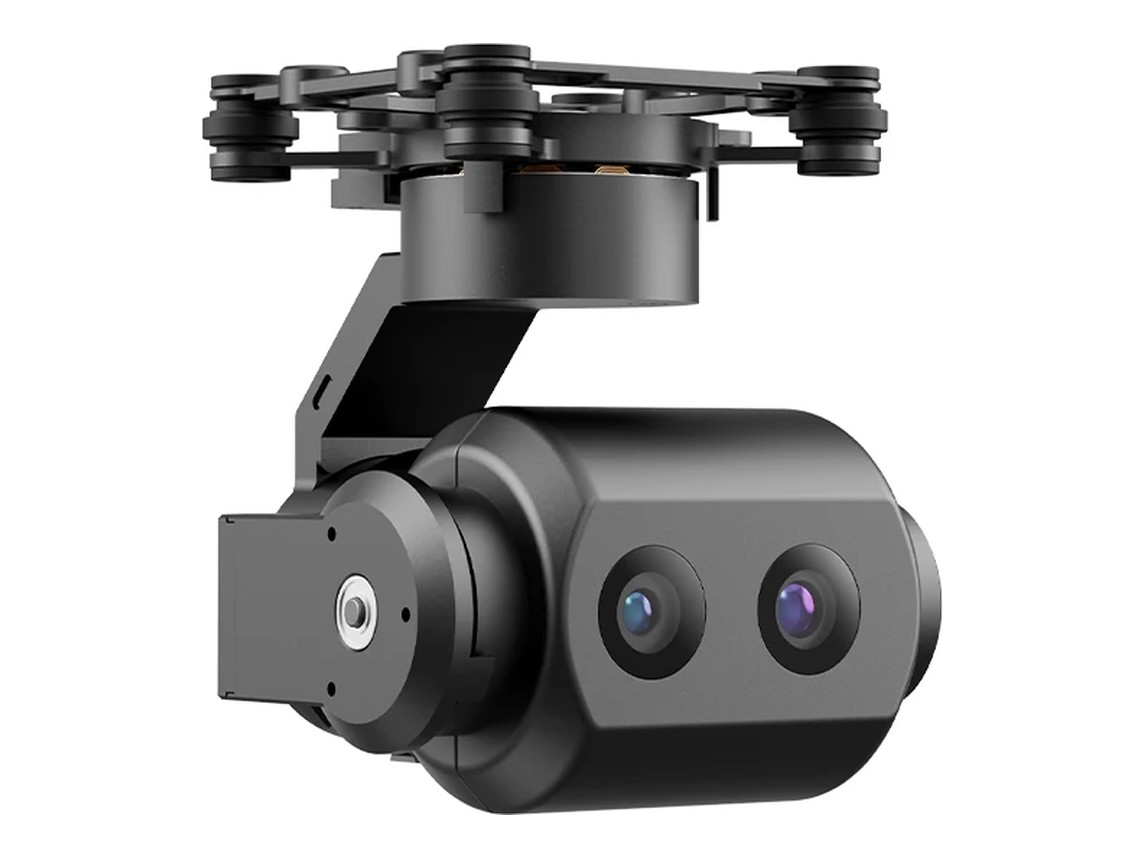

Three-frame gyro stabilization, ≤90 g

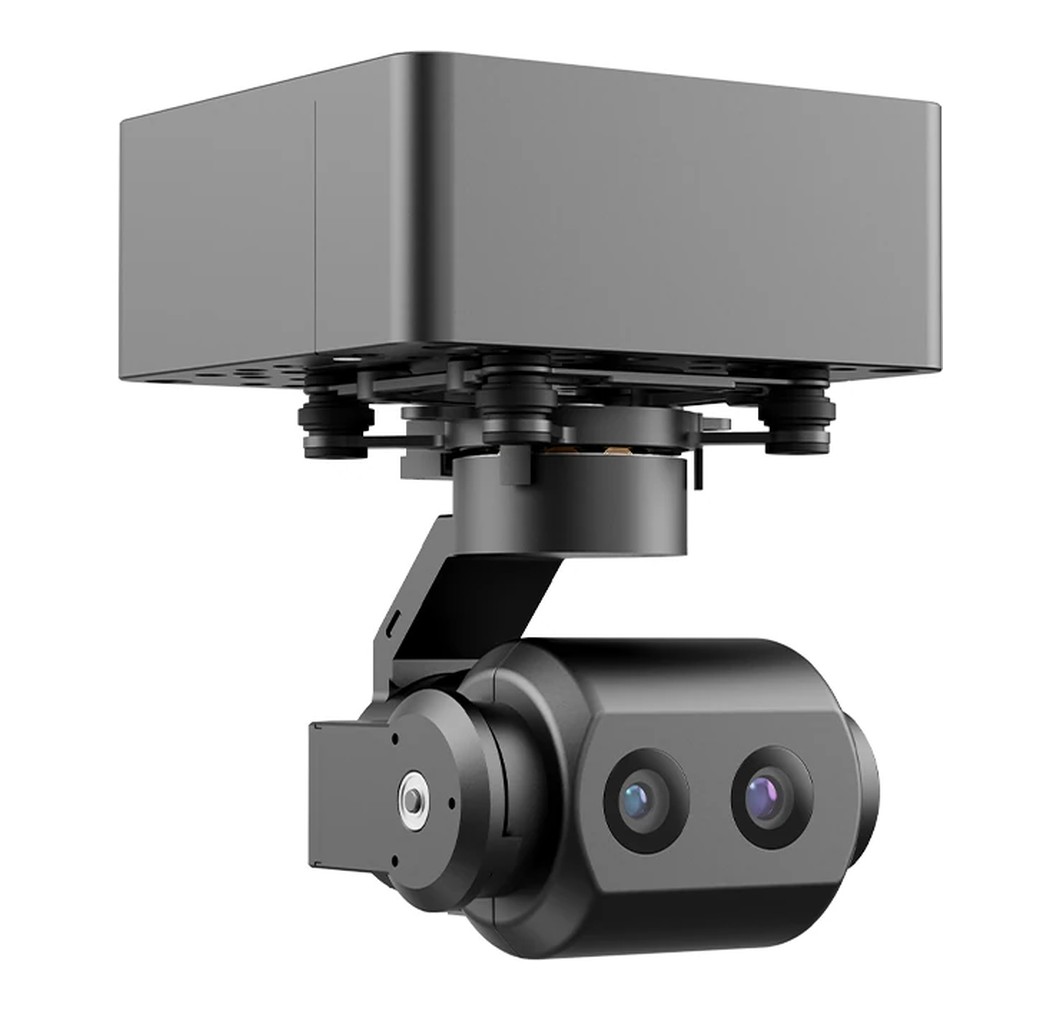

Three-frame gyro stabilization, 46×44×52 mm, AI module separate mount 38 g.
- Gimbal Weight
- 55g±5g
- AI components
- 38 g ± 2 g
- Total Weight
- ≤90 g
- Gimbal Dimensions
- 46×44×52mm
- Three-frame gyro-stabilized structure keeps the image stable during flight
- Built-in gimbal threading, the wiring harness is not exposed
dual visible light
Wide angle + starlight, two fields of view
The wide-angle channel is responsible for discovery, and the starlight channel is responsible for seeing clearly in low light. Both are visible light, and the images are in color - night recognition does not require guessing the outline based on thermal imaging.
- wide angle camera
- 13MP CMOS
- Starlight camera
- 2 million pixel CMOS
- Video Output
- 1080P/50fps
- AI Functions
- Identify/Lock/Track
key part
Three angles: installation, gimbal, and lens.
PTZ

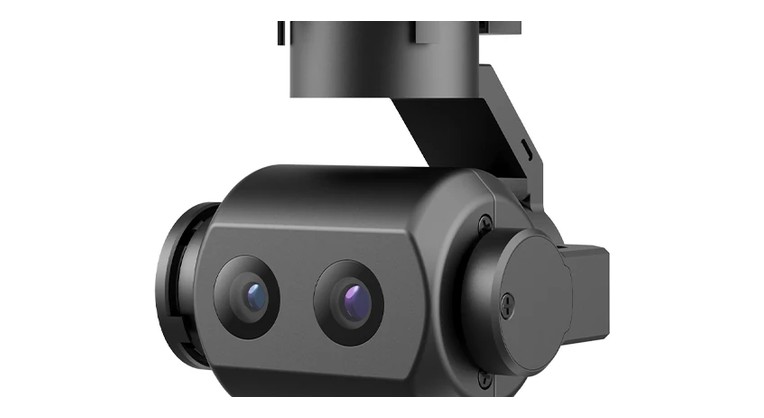

Three-axis image stabilization gimbal
The volume is 46×44×52 mm, the whole machine is ≤90 g, and it is suitable for micro drones.
lens

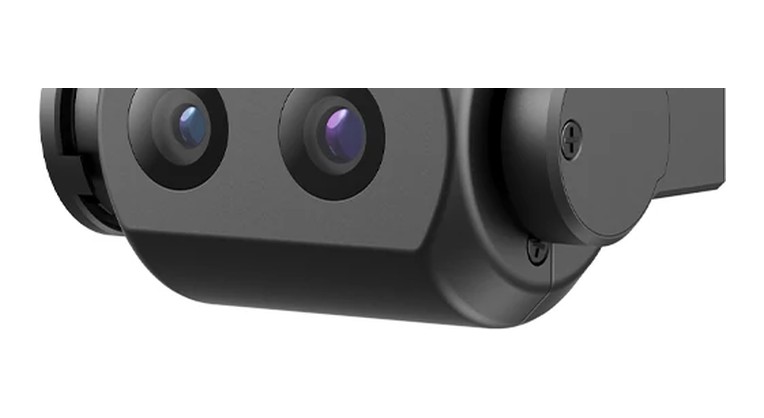

Dual visible light lens
13 million wide-angle + 2 million starlight, output 1080P/50fps.
Where do you actually work?
Urban security, emergency disaster relief, infrastructure inspection, border patrol - all the occasions where the microcomputer can be used.
City Security Monitoring
Disaster Response
Infrastructure Inspection
Border Patrol
Pictures only represent the working environment, not specific customer projects.
Complete technical parameters
Parameters are taken from the existing specification sheet; items not listed should be confirmed by order.
Visible light and imaging
| Wide-Angle Camera | 13MP CMOS |
|---|---|
| Starlight Camera | 2MP CMOS, low-light |
| Video Output | 1080P / 50fps HD |
PTZ and image stabilization
| Gimbal Weight | 55g ± 5g |
|---|---|
| AI Module Weight | 38g ± 2g |
| Total Weight | ≤ 90g |
| Gimbal Dimensions | 46 x 44 x 52 mm |
Functions and interfaces
| AI Functions | Autonomous recognition, locking, tracking |
|---|
5 frequently asked questions when choosing a model
Short answer, no sales talk. Your question was not found, please use the form at the bottom of the page.
Without infrared, how can I use it at night?
Relying on starlight-level visible light channel: 2-megapixel starlight CMOS can output 1080P/50fps color images without supplementary light in low-light environments such as night, tunnels, and dense forests.
How to divide the work between the two lenses?
The 13 million wide angle is responsible for finding targets in a wide range, and the 2 million starlight channel continues imaging in low light. The two field of view angles are used in conjunction.
Is 90 g the weight of the entire set?
yes. The gimbal weighs 55±5 g plus the AI component 38±2 g, and the total weight is controlled within 90 g.
Can target tracking be done?
Yes, the AI component supports autonomous target recognition, locking and tracking.
What tasks is it suitable for?
Emergency rescue, urban security, infrastructure inspection, border patrol and other occasions that require lightweight gimbal.
Tell us about your aircraft model and mission
Tell us the machine body, load position size and required identification distance, and give us a quote after confirming the interface and power supply.
