Installation

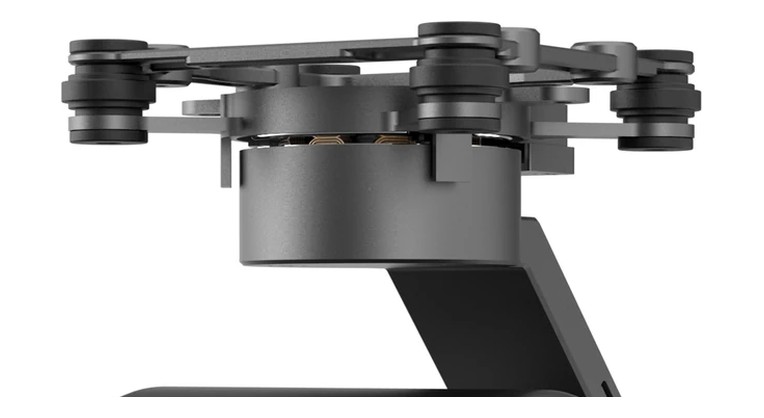

top mounting plate
The gimbal is 90 g, and the whole machine is ≤128 g.
Stable image gimbal · Dual-sensor · Starlight

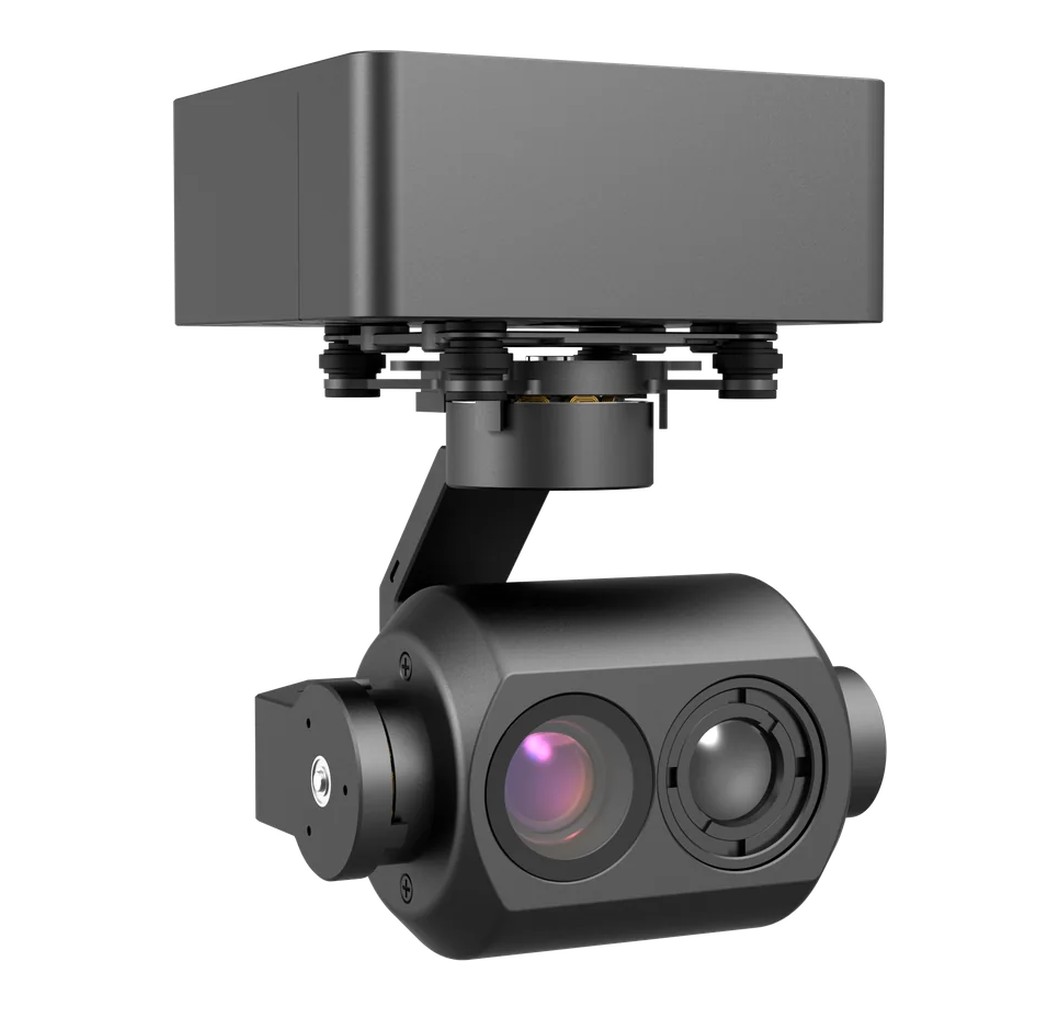

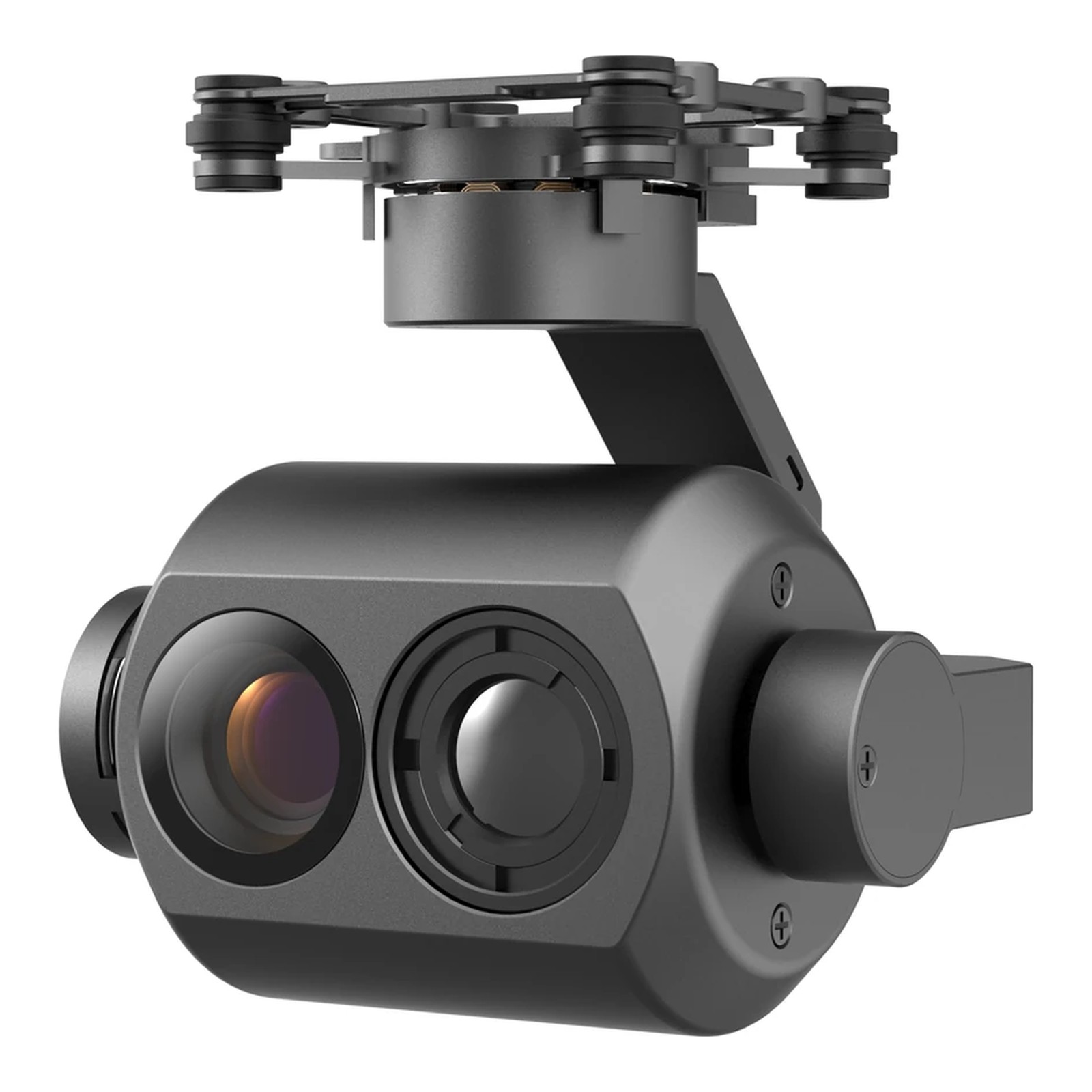

Micro 3-Axis Dual-Sensor Gimbal - PUTD070B
2 million starlight visible light + 640×512 infrared, total weight ≤128 g; daytime identification >250 m, nighttime >120 m.
Starlight level visible light, no fill light required for low illumination 640×512 long wave infrared, night >120 m Total weight ≤128 g, dual-sensor seamless switching
Starlight visible light + HD infrared
2 MP starlight + 640×512 infrared, no fill light needed in low light.
Starlight channel 1080P@50fps, daytime >250 m, nighttime >120 m; dual-spectrum seamless switching, gimbal 90 g, total weight ≤128 g.
≤128 g, gimbal 90 g
60×50×62 mm, dual-sensor sharing a single three-axis structure.
- Gimbal weight
- 90 g ± 5 g
- total weight
- ≤128g
- Gimbal Dimensions
- 60×50×62 mm
- Visible Video
- 1080P@50fps
- Visible light 51.5°×28.9° field of view
- Infrared 9.1 mm / 48.3°×38.6°
Seamless day and night
Starlight and infrared complement each other
The starlight channel can still produce color pictures at dusk and moonlight; when it is dark, it will switch to infrared. The user does not need to worry about the switching logic, the screen will be connected by itself.
- visible light
- 1/2.8" 2 million stars
- infrared
- 640×512
- daytime recognition
- >250 m
- Night identification
- >120 m
key part
Three angles: installation, gimbal, and lens.

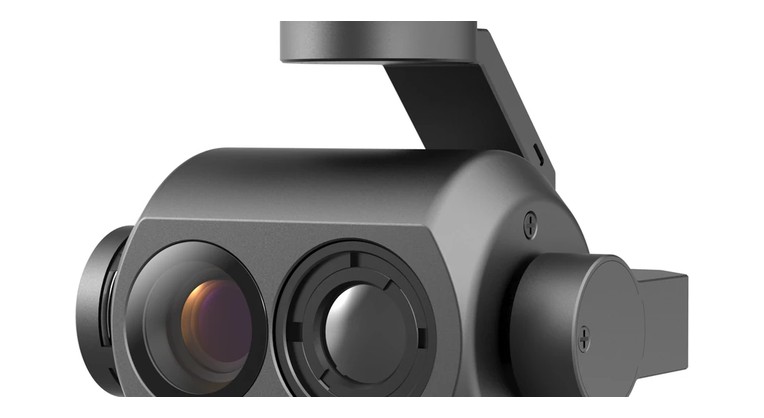

PTZ
Three-axis image stabilization gimbal
Volume: 60×50×62 mm, suitable for micro drones.

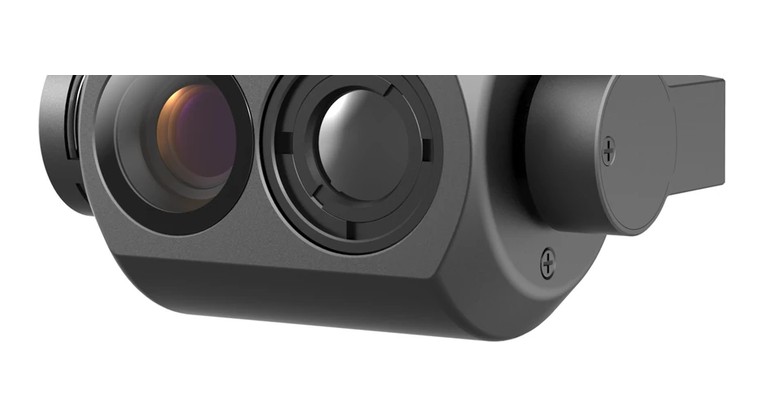

lens
Starlight visible light + infrared
Visible light 51.5°×28.9°, infrared 48.3°×38.6°.
Where do you actually work?
Urban security, emergency disaster relief, infrastructure inspection, border patrol - all the occasions where the microcomputer can be used.
City Security
Disaster Response
Infrastructure Inspection
Border Patrol
Pictures only represent the working environment, not specific customer projects.
Complete technical parameters
Parameters are taken from the existing specification sheet; items not listed should be confirmed by order.
Visible light and imaging
| Visible Sensor | 1/2.8" CMOS, 2MP starlight |
|---|---|
| Visible FOV | 51.5° x 28.9° |
| Visible Video | 1920x1080@50fps |
| Daytime Recognition | >250m |
Infrared channel
| IR Resolution | 640x512, 8-14μm |
|---|---|
| IR Focal / FOV | 9.1mm / 48.3° x 38.6° |
| Night Recognition | >120m |
PTZ and image stabilization
| Gimbal / Total Weight | 90±5g / ≤128g |
|---|---|
| Gimbal Dimensions | 60 x 50 x 62 mm |
5 frequently asked questions when choosing a model
Short answer, no sales talk. Your question was not found, please use the form at the bottom of the page.
How do starlight and infrared work together?
In low-light environments, starlight visible light is used to produce color pictures, and in total darkness or smoke conditions, infrared is used to see the heat source. The two channels provide complementary coverage for 24 hours.
Daytime 250 m shorter than other models?
Yes, this model focuses on lightweight and starlight imaging; if you want a longer recognition distance, you can look at the 350 m model.
128 g is the complete set?
Yes, the gimbal is 90±5 g and the total weight of the whole machine does not exceed 128 g.
Video specs?
Visible light output 1920×1080@50fps, also maintains 50fps under low illumination.
Infrared parameters?
640×512, 8–14 μm long wave, 9.1 mm focal length, 48.3°×38.6° field of view.
Tell us about your aircraft model and mission
Tell us the machine body, load position size and required identification distance, and give us a quote after confirming the interface and power supply.
