Installation

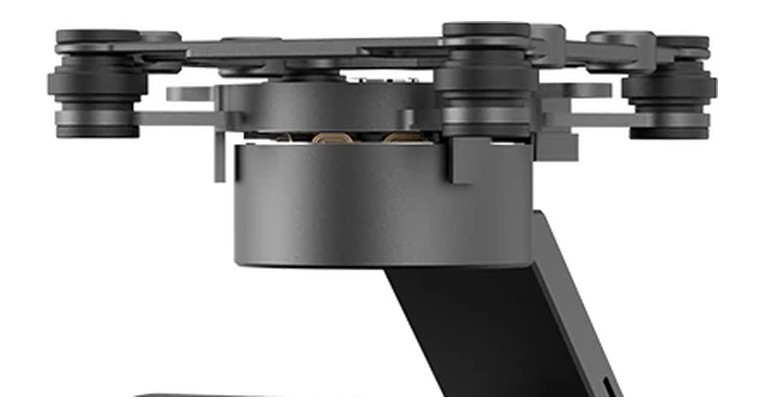

top mounting plate
Gimbal 80g + servo tracking 38g, total weight ≤105g.
Image stabilization gimbal · dual-sensor

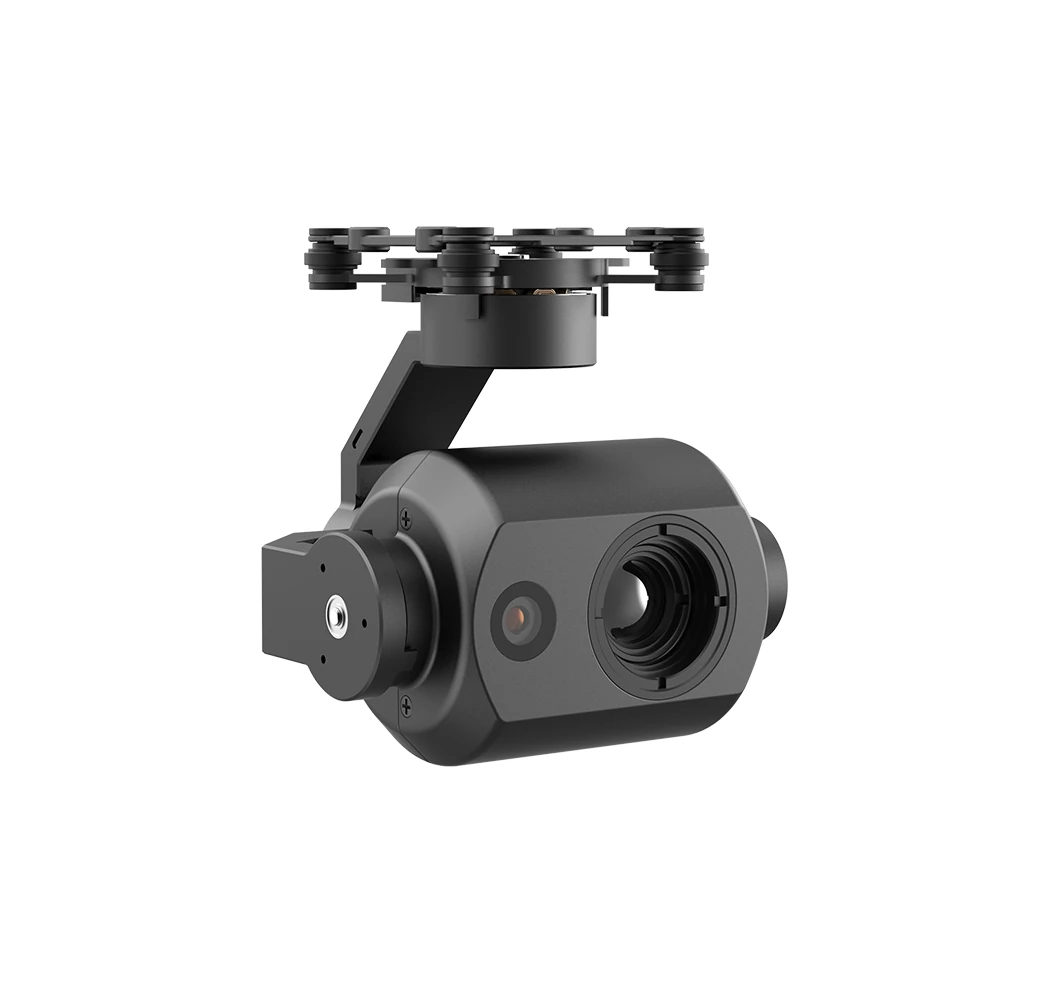

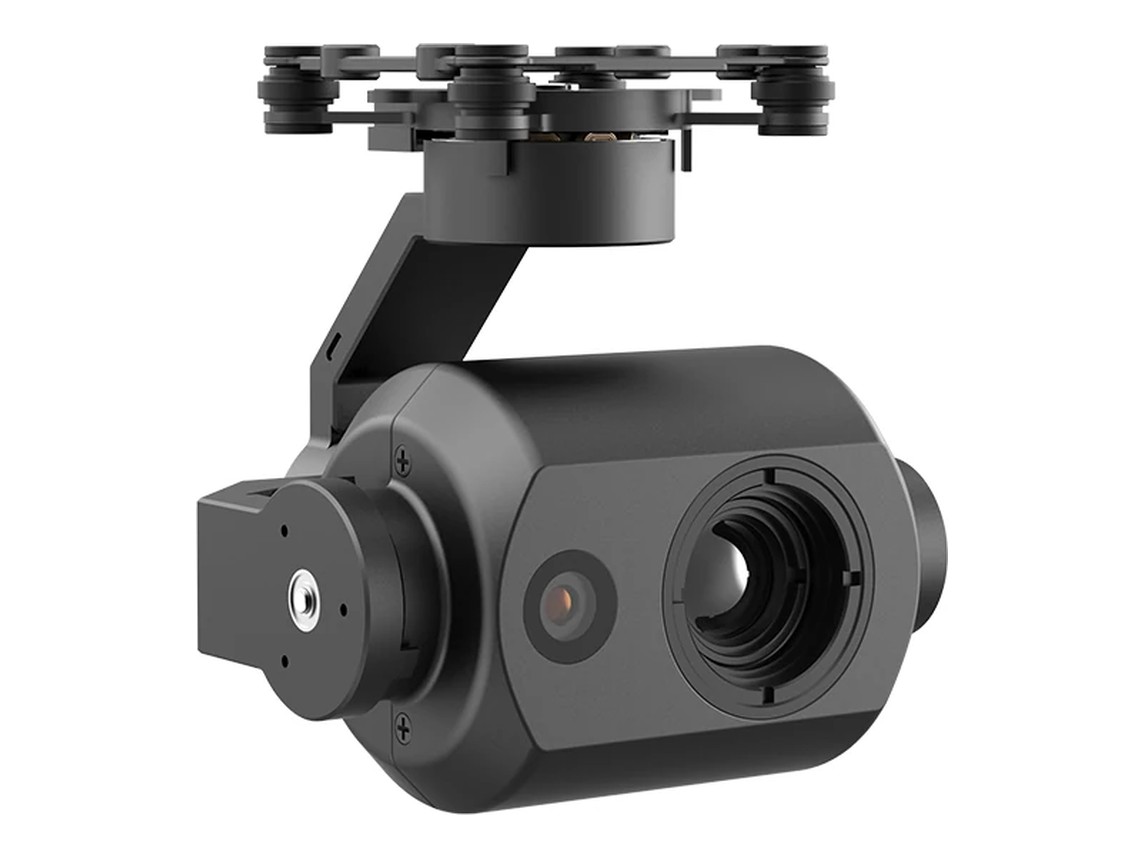

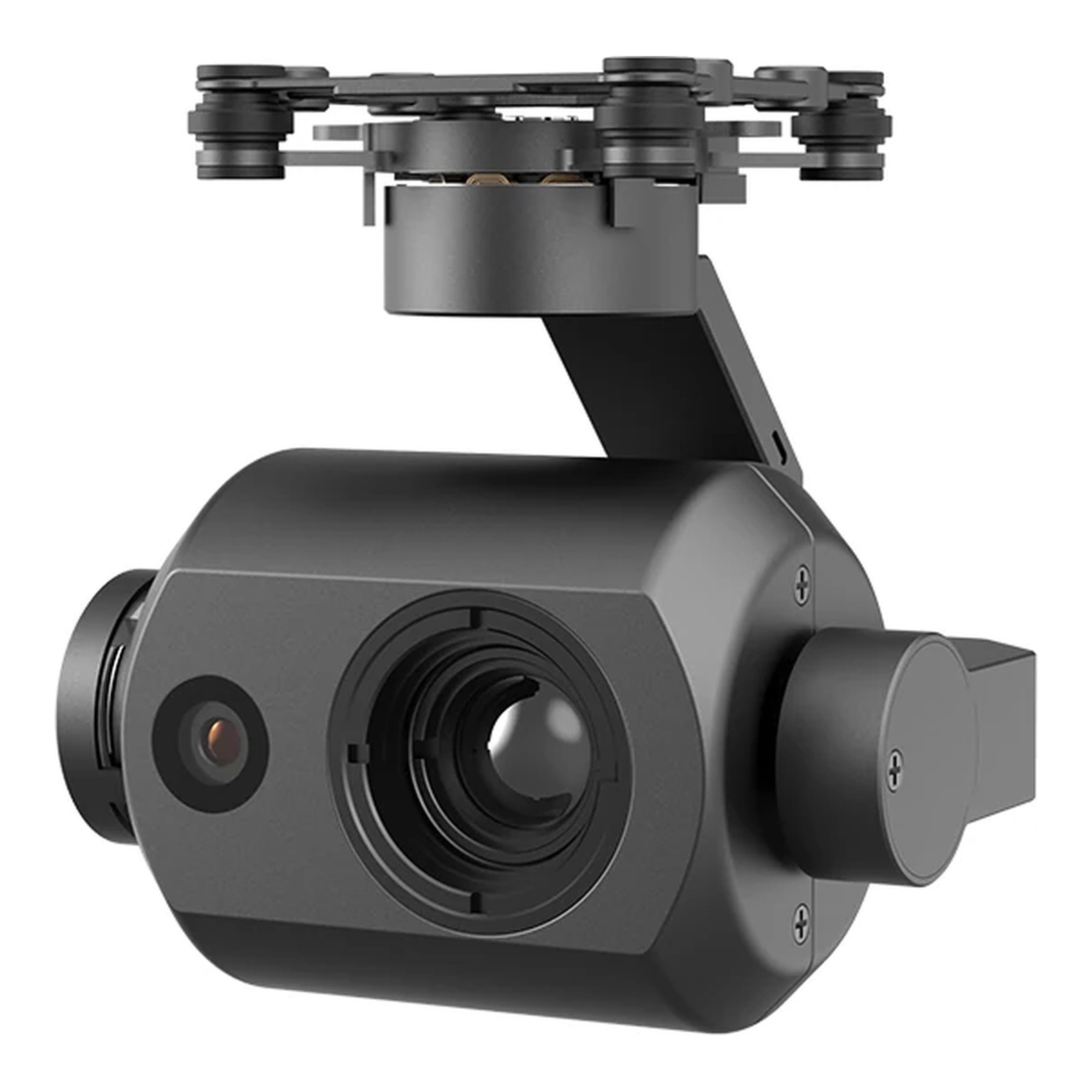

Micro Dual-Sensor Gimbal - PUTD070A
13 million visible light + 640×512 infrared, total weight ≤105 g; daytime recognition >350 m, nighttime >120 m.
Identification >350 m during daytime, >120 m at night Total weight ≤105 g, flight time increased by about 30% Network + HDMI dual interface, 4K@50fps video recording
Visible light + infrared, see day and night
13 MP visible light + 640×512 infrared, day/night continuous viewing.
Daytime adult recognition >350 m, nighttime >120 m; 4K@50fps recording, gimbal 80 g, total weight ≤105 g, mountable on light drones.
≤105 g, about 30% longer flight time
Gimbal 57×50×62 mm, network + HDMI dual output.
- Gimbal weight
- 80g±5g

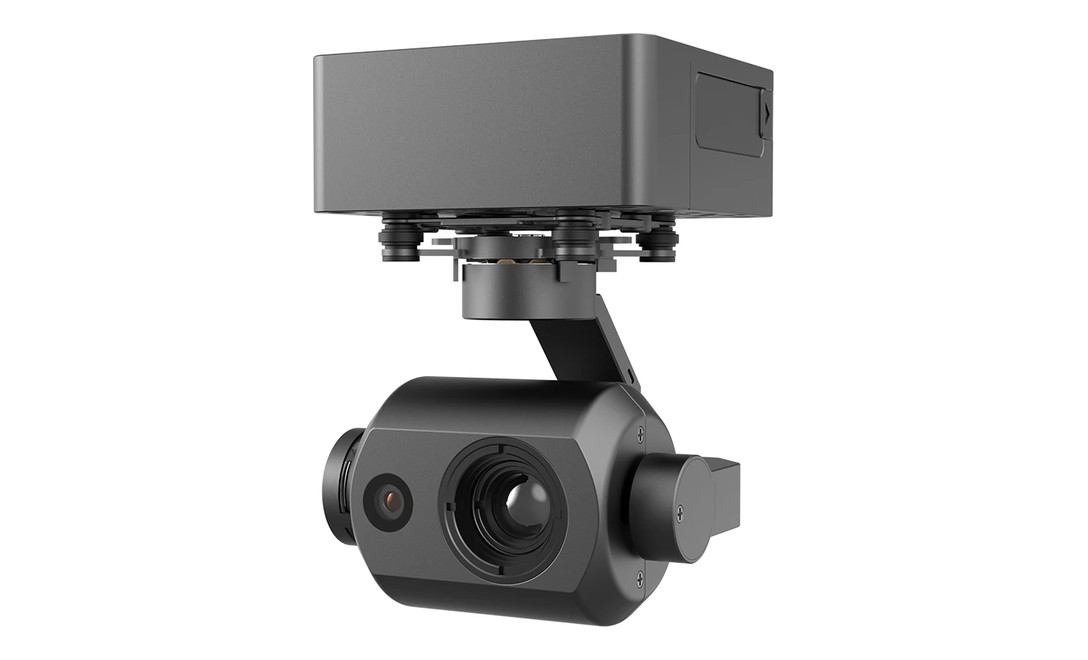

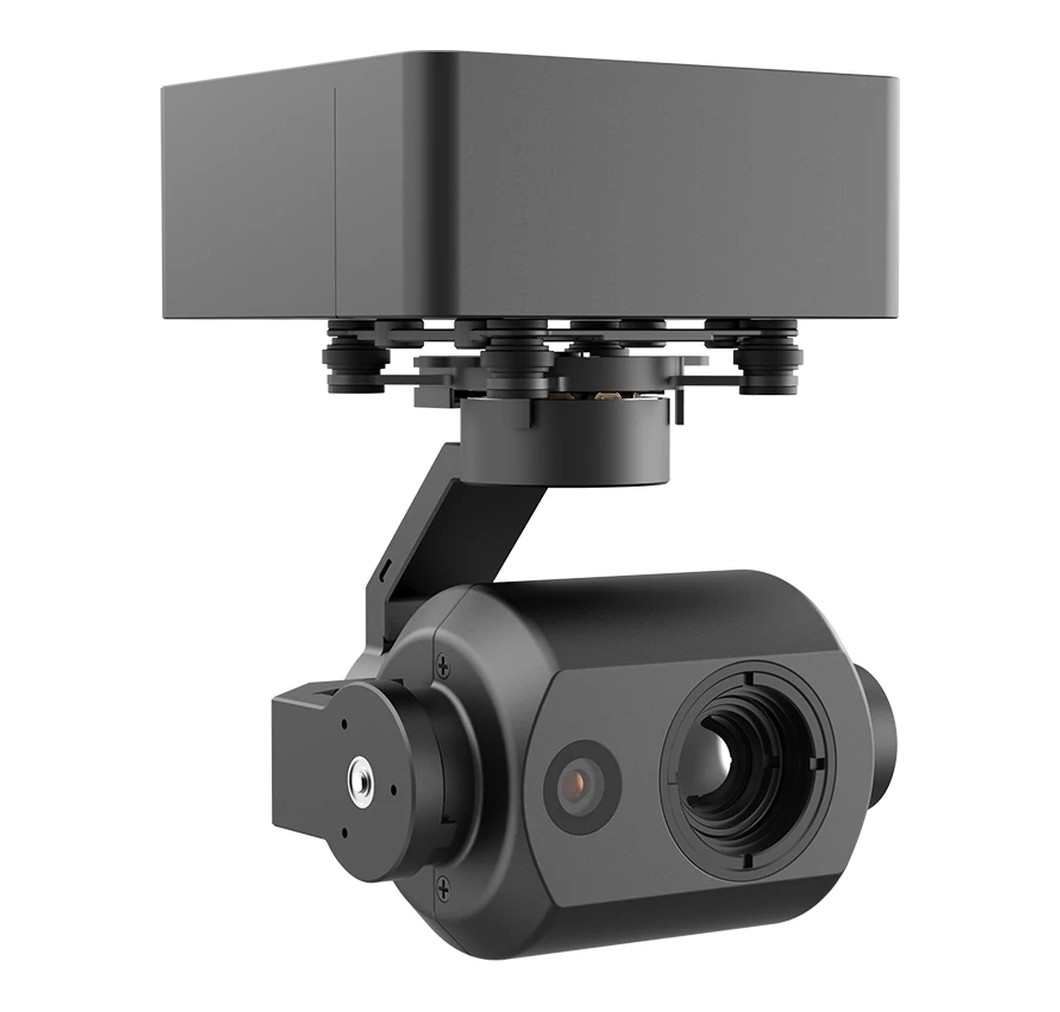

- Servo + Tracking
- 38 g ± 2 g
- total weight
- ≤105g
- Gimbal Dimensions
- 57×50×62mm
- Network / HDMI dual interface output
- 4K@50fps video recording
Dual-sensor synergy
13MP wide angle + 640 IR
Visible light takes care of the details, and infrared takes care of the heat source. During the day, I use wide-angle scanning and at night, I use infrared. The same gimbal is connected 24 hours a day.
- visible light
- 1/3" 13M CMOS
- infrared
- 640×512 long wave
- daytime recognition
- >350 m
- Night identification
- >120 m
key part
Three angles: installation, gimbal, and lens.

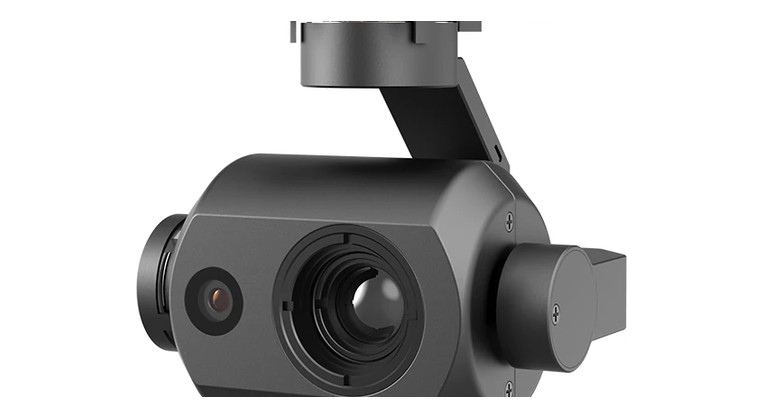

PTZ
Three-axis image stabilization gimbal
Volume: 57×50×62 mm; network/HDMI dual interface output, 4K@50fps video recording.

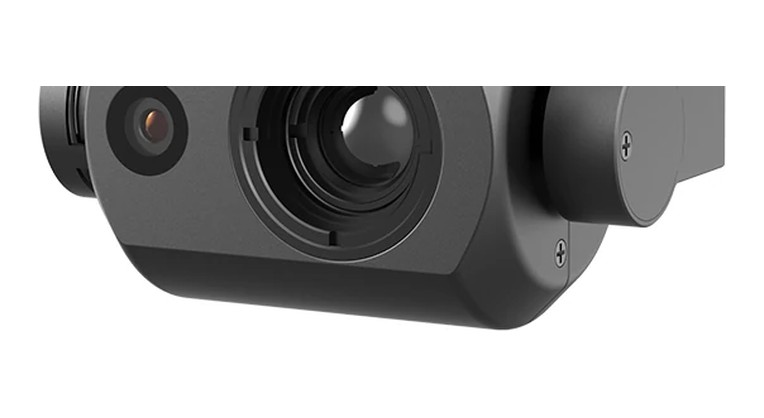

lens
13MP Visible + 640 IR
Visible light 63.5°×38.5°, infrared 48.3°×38.6°.
Where do you actually work?
Urban security, emergency disaster relief, infrastructure inspection, border patrol - all the occasions where the microcomputer can be used.
City Security Monitoring
Disaster Response
Infrastructure Inspection
Border Patrol
Pictures only represent the working environment, not specific customer projects.
Complete technical parameters
Parameters are taken from the existing specification sheet; items not listed should be confirmed by order.
Visible light and imaging
| Visible Sensor | 1/3" 13M CMOS, 13MP |
|---|---|
| Visible FOV | 63.5° x 38.5° |
| Daytime Recognition | >350m (visibility ≥8km) |
| Video Recording | 4K@50fps |
Infrared channel
| IR Resolution | 640x512, LWIR uncooled |
|---|---|
| IR Focal / FOV | 9.1mm / 48.3° x 38.6° |
| Night Recognition | >120m |
PTZ and image stabilization
| Gimbal / Total Weight | 80±5g / ≤105g |
|---|---|
| Gimbal Dimensions | 57 x 50 x 62 mm |
Functions and interfaces
| Output Interfaces | Network, HDMI |
|---|
5 frequently asked questions when choosing a model
Short answer, no sales talk. Your question was not found, please use the form at the bottom of the page.
What are the conditions of 350 m during the day and 120 m at night?
During the day, the visibility is ≥8 km; at night, it is the identification distance of the infrared channel. Both numbers refer to "recognizing the target", not "seeing a dot".
What does 105 g contain?
The gimbal weighs 80±5 g plus the servo + tracker weighs 38±2 g, and the total weight is controlled within 105 g.
Can I record it?
Supports 4K@50fps recording, network and HDMI dual interface output.
What is the infrared resolution?
640×512 long wave uncooled (8–14 μm), 9.1 mm focal length, 48.3°×38.6° field of view.
How did the flight time increase by 30%?
Compared with conventional gimbals with the same performance, the total weight is within 105 g, the fuselage load is lighter, and the flight time is correspondingly improved.
Tell us about your aircraft model and mission
Tell us the machine body, load position size and required identification distance, and give us a quote after confirming the interface and power supply.
Other models in the same series
Different gears in the fixed focus series are selected according to the recognition distance and weight.
Fixed focus series
PUTD055 dual visible light
90 g level dual visible light, starlight night vision.
Fixed focus series
PUTD070B dual-sensor
Starlight + 640 IR, day 250 / night 120 m.
Fixed focus series
PUTD090 boot gimbal
50 million + 640 infrared, can output guidance signal.
Fixed focus series
