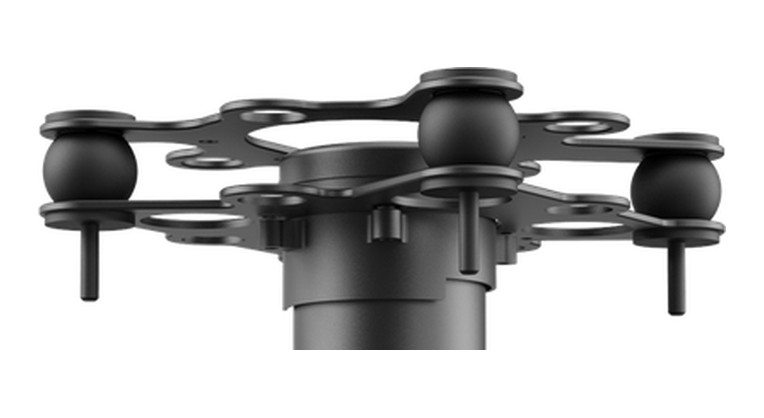

top mounting plate

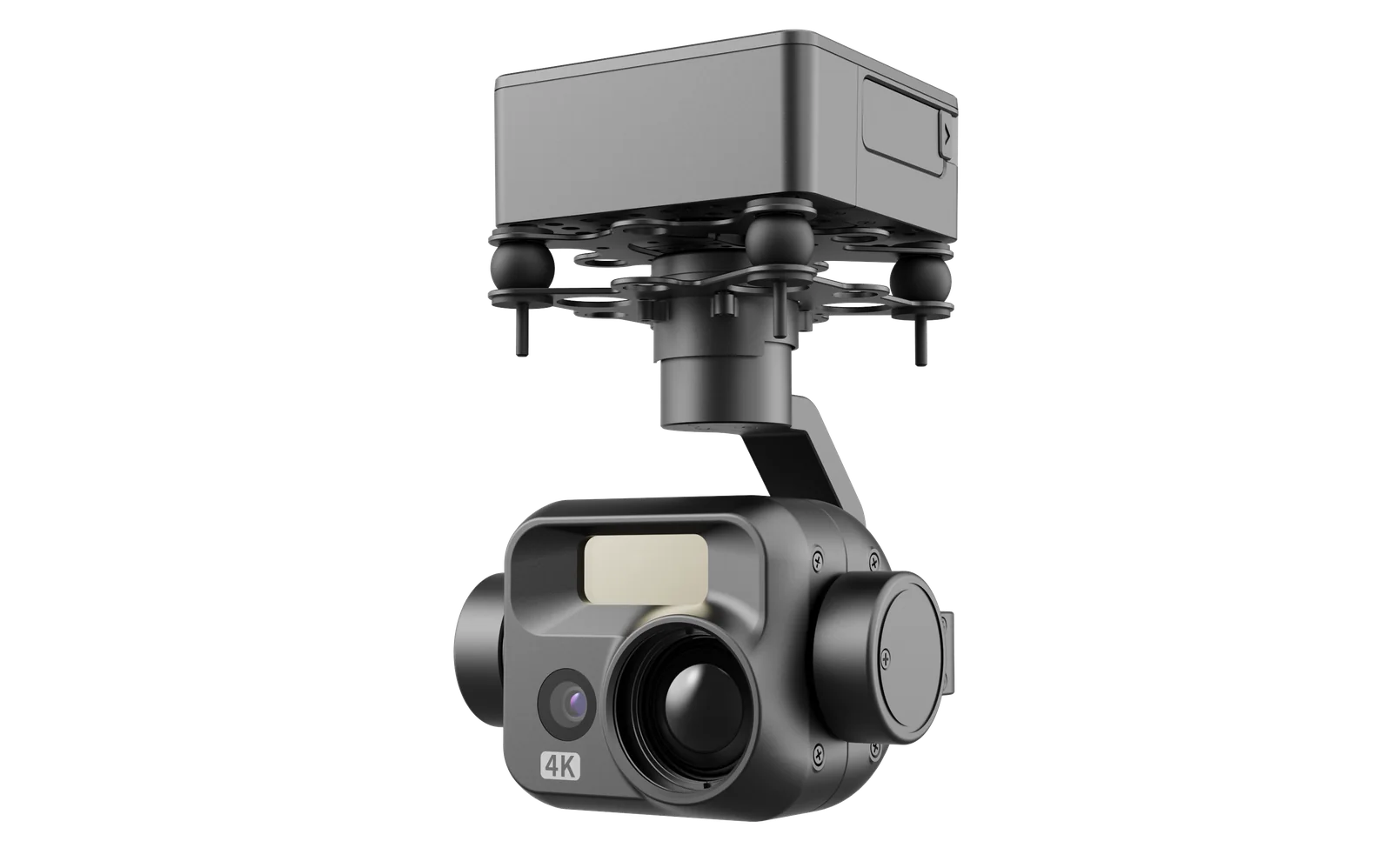

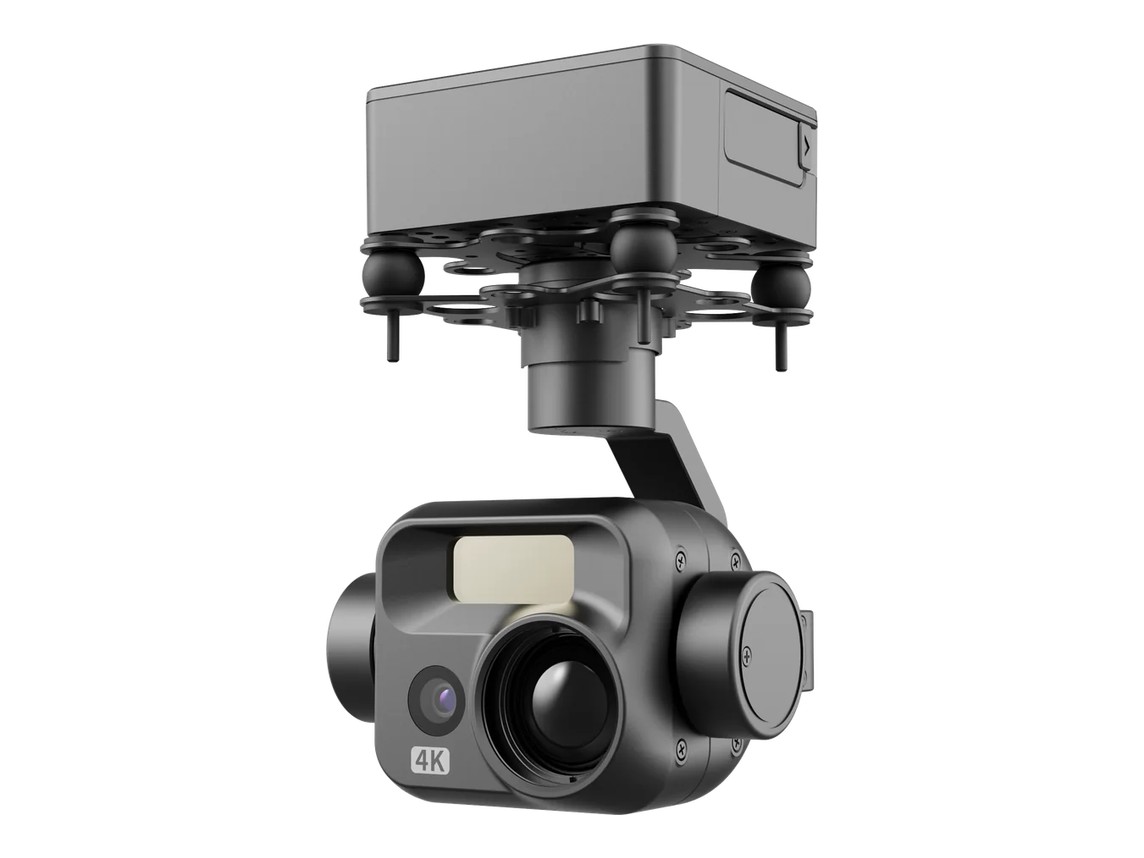

Gimbal 175g, total weight 217g.
Tri-sensor positioning guide gimbal · telephoto infrared

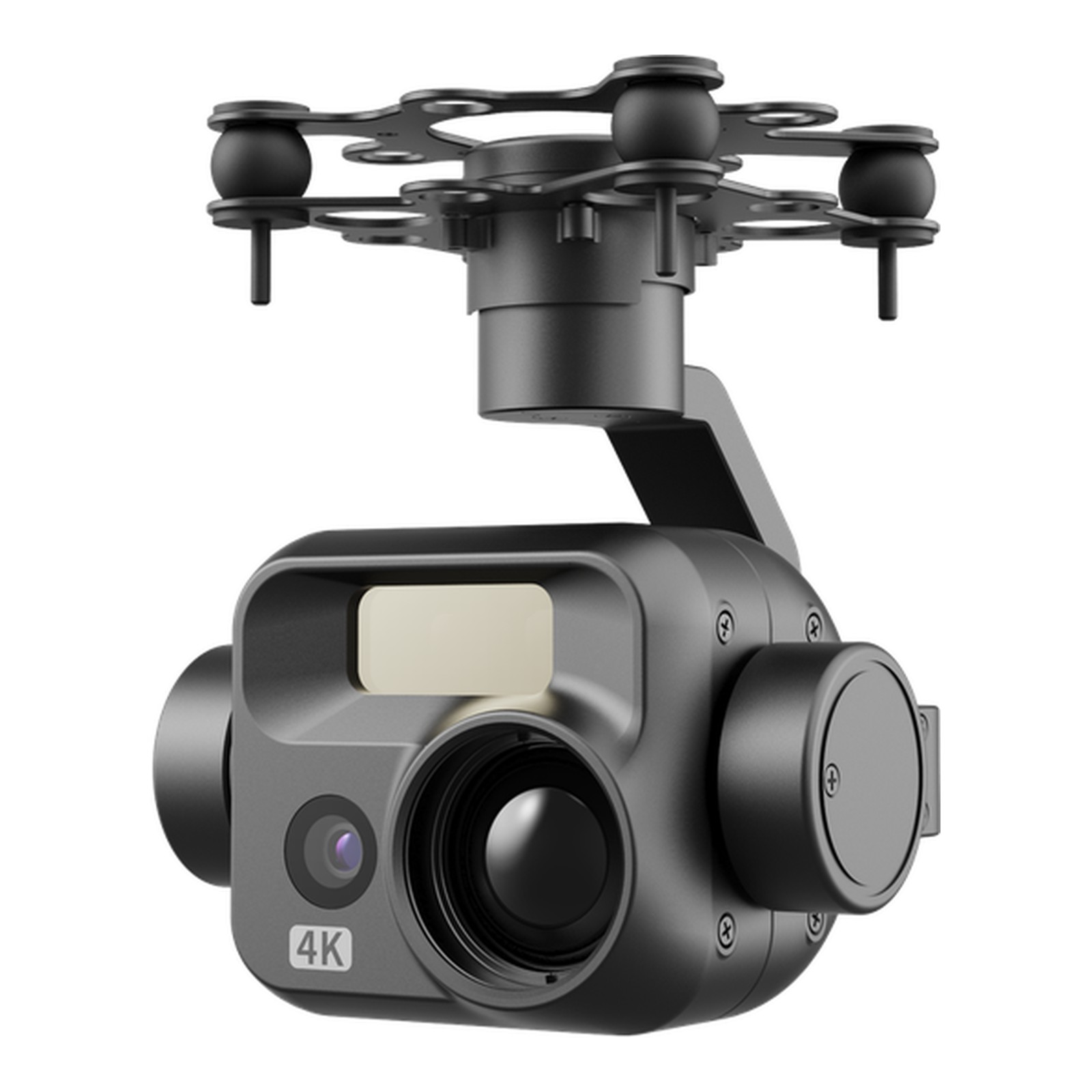

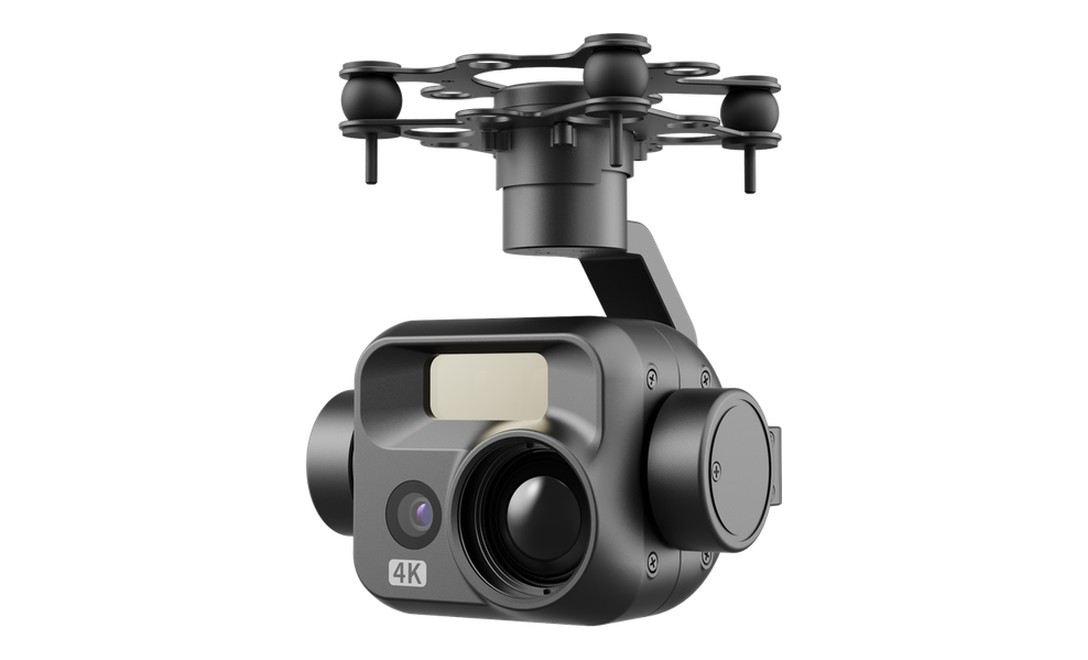

3-Axis Tri-Sensor Gimbal - PUTT170
50 million visible light + 640×512 telephoto infrared (25 mm) + 1200 m laser ranging; night identification >300 m.
25 mm infrared telephoto, night recognition >300 m Laser ranging 10–1200 m, accuracy ±1 m 50 million pixels, 4K imaging
Change the infrared lens to a telephoto lens to see further at night
Infrared replaced with 25 mm telephoto, night recognition up to 300 m.
640×512 telephoto infrared + 48 MP visible light + 1200 m laser; day >400 m, night >300 m, tri-spectrum integrated positioning guidance.

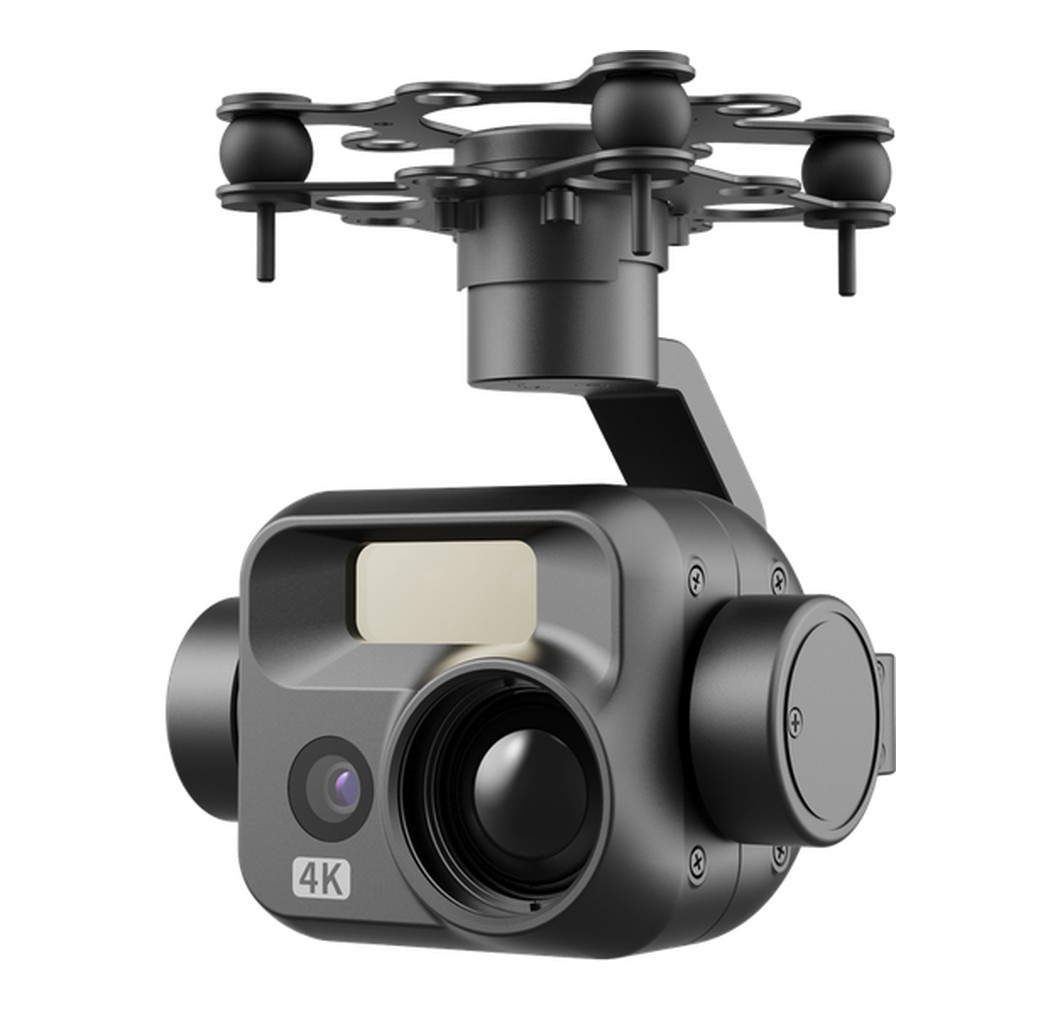

217g, three-axis image stabilization
Gimbal 175 g, total weight 217 g, 79×76×91 mm.
- Gimbal weight
- 175 g ± 5 g
- total weight
- 217g
- Gimbal Dimensions
- 79×76×91mm
- Night identification
- >300m
- Infrared 25 mm telephoto / 17.5°×14.0° field of view
- Laser 905 nm, 10–1200 m, ±1 m
Long distance identification
Telephoto infrared + laser ranging
The 25 mm telephoto pushes the same 640×512 detector to a farther field of view; the distance is directly given by the laser, no need to rely on estimation.
- Night identification
- >300m
- Infrared focal length
- 25 mm telephoto
- Laser Rangefinder
- 10–1200 m, ±1 m
- daytime recognition
- >400m
key part
Three angles: installation, gimbal, and lens.
PTZ

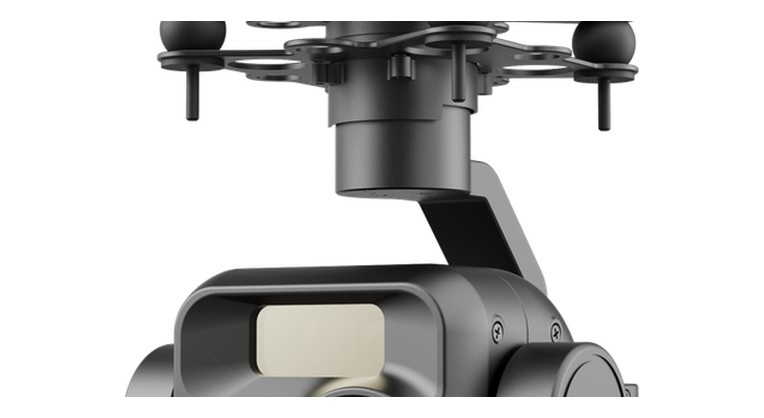

Three-axis image stabilization gimbal
The volume is 79×76×91 mm and is designed for long-distance surveys.
lens

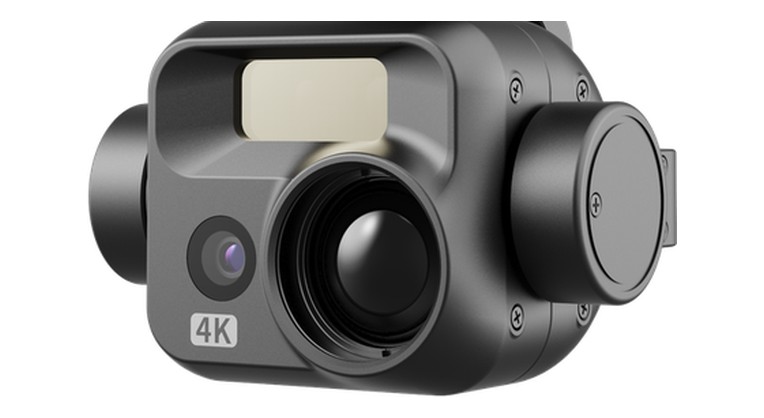

Telephoto infrared + laser
Infrared 25 mm, 17.5°×14.0° field of view, laser 10–1200 m.
Where do you actually work?
Urban security, emergency disaster relief, infrastructure inspection, border patrol - all the occasions where the microcomputer can be used.
City Security
Disaster Response
Infrastructure Inspection
Border Patrol
Pictures only represent the working environment, not specific customer projects.
Complete technical parameters
Parameters are taken from the existing specification sheet; items not listed should be confirmed by order.
Visible light and imaging
| Visible Sensor | 50MP (48MP effective) |
|---|---|
| Visible Imaging | 4K video |
| Daytime Recognition | >400m |
Infrared channel
| IR Resolution | 640x512, 8-12μm |
|---|---|
| IR Focal / FOV | 25mm tele / 17.5° x 14.0° |
| Night Recognition | >300m |
Laser ranging
| Laser Rangefinder | 905nm, 10-1200m, ±1m, ≤4Hz |
|---|
PTZ and image stabilization
| Gimbal / Total Weight | 175±5g / 217g |
|---|---|
| Gimbal Dimensions | 79 x 76 x 91 mm |
5 frequently asked questions when choosing a model
Short answer, no sales talk. Your question was not found, please use the form at the bottom of the page.
How is 300 m achieved at night?
The infrared is replaced by a 25 mm optical telephoto, with a field of view of 17.5°×14.0°, concentrating energy on long-distance targets; according to data, it is 2.5 times that of ordinary infrared gimbal.
Laser ranging parameters?
905 nm, 10–1200 m, accuracy ±1 m, measurement frequency ≤4 Hz.
How much visible light can be taken?
50 million pixels (effective 48 million), 4K video, daytime recognition >400 m.
How much does the whole machine weigh?
The gimbal weighs 175±5 g, the total weight is 217 g, and the volume is 79×76×91 mm.
What tasks is it suitable for?
Long-distance reconnaissance and precise guidance - when it is necessary to see the target clearly and give the distance at night.
Tell us about your aircraft model and mission
Tell us the machine body, load position size and required identification distance, and give us a quote after confirming the interface and power supply.
